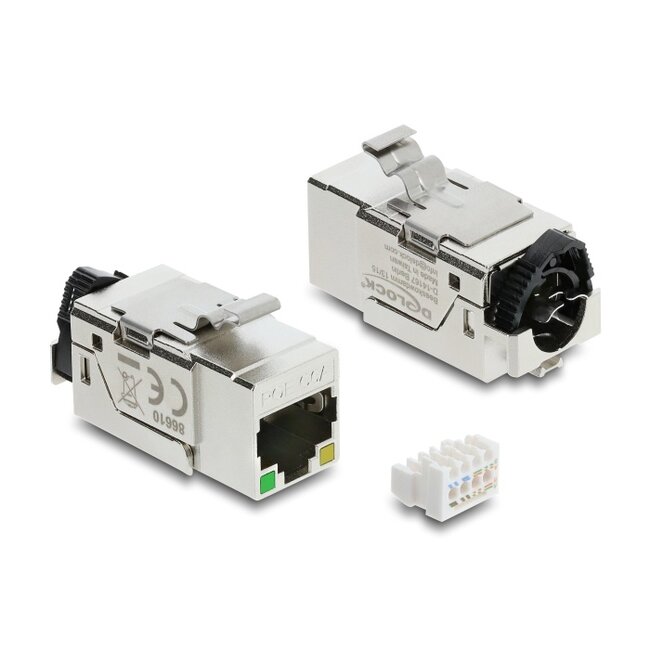

This module by Delock can be used to connect twisted pair cable to an RJ45 jack. With its standardised dimensions it can be used for easy snap-in mounting in e.g. a Keystone patch panel, face plate or surface-mount box.
PoE detection and identification

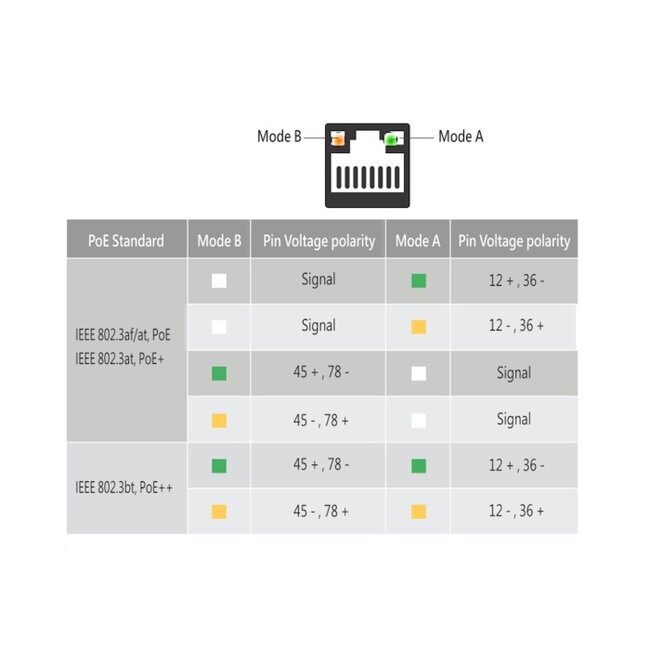

The RJ45 module with PoE indicator is the ideal solution for professional network environments, where fast and reliable detection of Power-over-Ethernet (PoE) is required. The integrated LEDs indicate the presence and type of PoE power supply.
Cable tie-free
On the back of the module there is a locking clip with which the network cable can be fixed and fastened without cable ties.
• Connectors:
1 x RJ45 jack (8P/8C)
1 x LSA (toolfree)
• Cat.6A specification
• Shielded (STP)
• Compliant with Cat.6A requirements of ISO/IEC 11801 Edition 2.2, EN 50173-1 and EN 60603-7-41, ANSI/TIA 568.2-D
• TIA-568A/B pinout
• For solid or stranded wire up to 0.573 mm (23 - 26 AWG)
• For cable diameter from 5.0 - 8.5 mm
• Mounting without cable ties
• For Keystone ports with 19.2 x 14.9 mm
• Operating temperature: -40 °C ~ 68 °C
• Material: zinc diecast
• Dimensions (LxWxH): ca. 37.5 x 16.4 x 22.0 mm
• Keystone module
• Cable manager
• User manual
