This DC female bulkhead by Delock can be installed or cabled in a housing or a device in order to supply it with power. With its standardised dimensions it can be used for easy snap-in mounting in e.g. a Keystone patch panel, face plate or surface-mount box.
Note
To ensure the correct function of the connected device, it must match the specifications for voltage, current and polarity of the power supply.

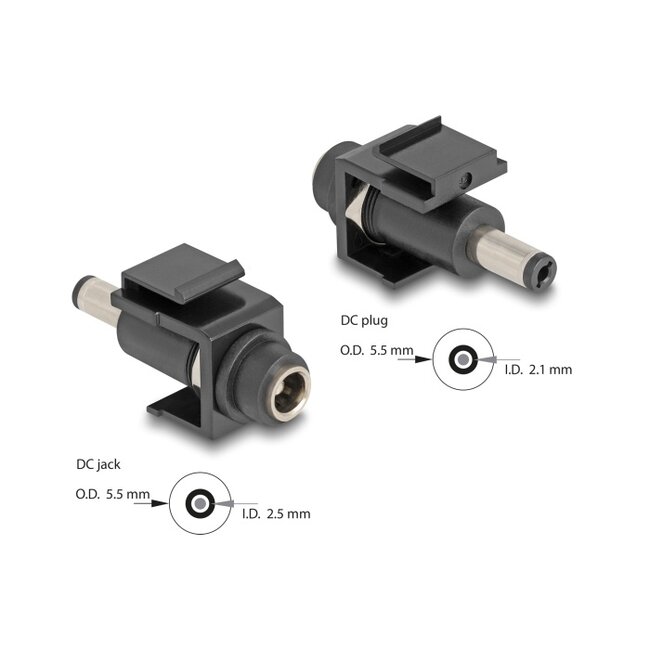

• Connectors:
external: 1 x DC 5.5 x 2.5 mm female
internal: 1 x DC 5.5 x 2.1 mm male
• For Keystone ports with 19.2 x 14.9 mm
• Colour: black
• Length in front of the panel: ca. 8.0 mm
• Dimensions (LxWxH): ca. 42.3 x 16.2 x 21.8 mm
• Keystone module
