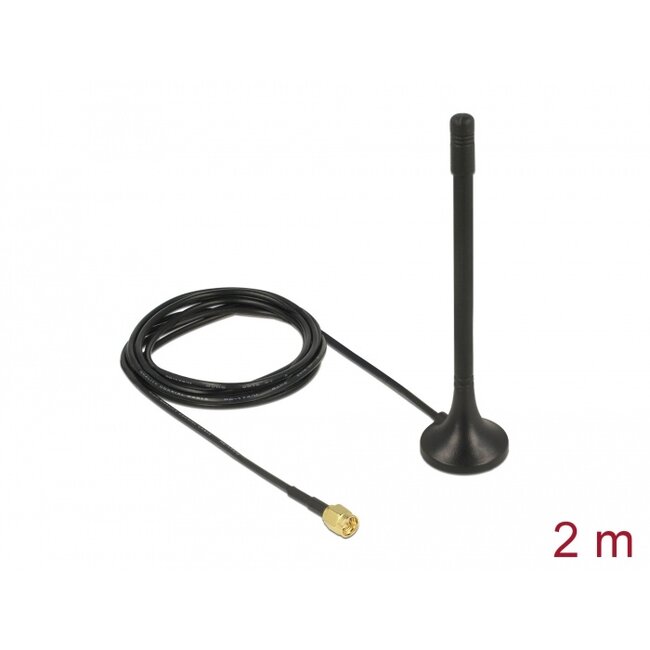

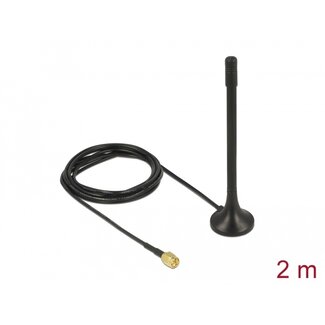

This antenna by Delock allows the usage of ISM 433 MHz band indoors.
Specification• Connector: 1 x SMA plug
• Frequency range: 433 MHz +/- 10 MHz
• Antenna gain: 2 dBi
• Impedance: 50 Ohm
• Polarisation: vertical
• VSWR: 2.0
• Operating temperature: -40 °C ~ 85 °C
• Housing material: ABS
• Thread: M5 (7.4 mm)
• Colour: black
• Antenna length including magnetic base: ca. 121 mm
• Cable type: coaxial
• Cable type: RG-174
• Cable attenuation: 1.5 dB @ 1.5 GHz per meter
• Cable colour: black
• Cable diameter: ca. 2.7 mm
• Cable length incl. connectors: ca. 2 m
• Diameter magnetic base: ca. 29.4 mm
• Device with a free SMA jack
Package content
• Antenna
