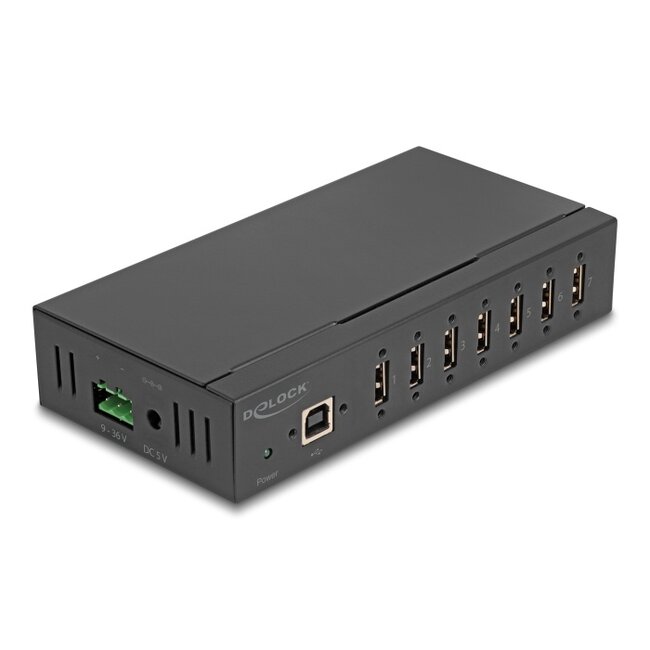

This solid industry capable USB Hub by Delock can be connected to a computer via the USB Type-A interface. It expands the computer by seven USB Type-A connectors.
Screw connection and mounting option
Each USB port has two screw holes with M3 thread. Appropriate cables can be plugged in and screwed into the screw holes. This ensures a secure data connection even in mobile environments.

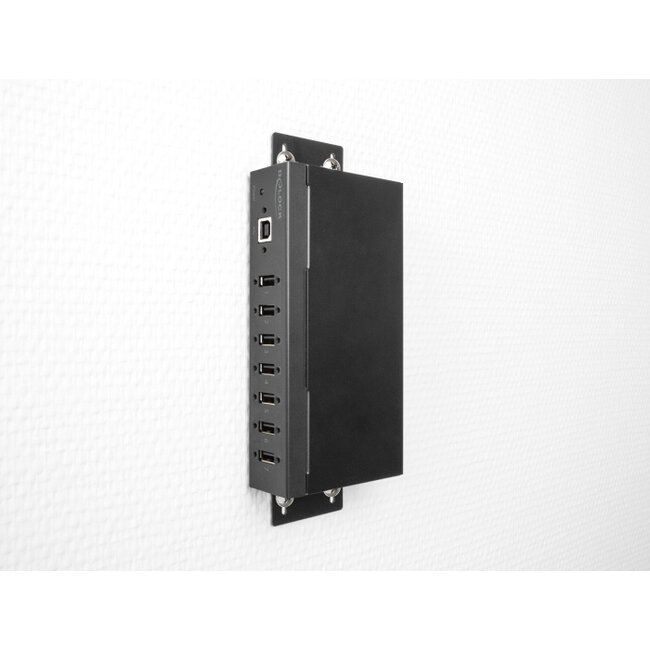

In addition, the hub comes with wall mounting plates and a DIN rail bracket, making it perfect for installation in an industrial environment.
The USB ports are protected against electrostatic discharges up to 15 kV.
Power supply
If necessary, an optional power supply or an optional power cable can be connected to the power socket. A voltage between 9 - 36 V can be applied to the terminal power connection, and 5 V to the DC connection.
• Connectors:
1 x USB 2.0 Type-B female
7 x USB 2.0 Type-A female
1 x 5 V DC jack
1 x 9 - 36 V 3 pin terminal power connector
• Chipset: Genesys Logic GL850G
• Data transfer rate up to 480 Mbps
• Bootable
• Plug & Play
• 1 x LED indicator
• Robust metal housing
• USB ports with screw holes

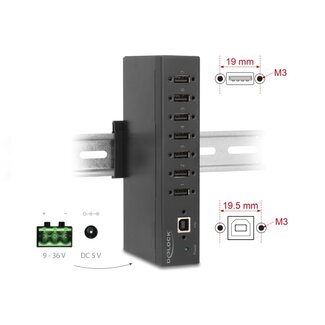

• Pitch of screw hole USB Type-A: ca. 19 mm
• Pitch of screw hole USB Type-B: ca. 19.5 mm
• Thread size: M3
• Removable wall-mount brackets
• Power supply: Bus-powered or Self-powered
• Flexible power supply with 9 V to 36 V at the terminal power connection
• ESD protection up to 15 kV for all ports
• Operating temperature: 0 °C ~ 60 °C
• Storage temperature: -10 °C ~ 70 °C
• Colour: black
• Dimensions (LxWxH): ca. 158 x 80 x 32 mm
Specification of power connector
DC:
• 5 V
• Dimensions:
inside: ø ca. 2.1 mm
outside: ø ca. 5.5 mm
length: ca. 9 mm
terminal:
• 9 - 36 V
• Linux Kernel 6.2 or above
• Mac OS 13.1 or above
• Windows 10/10-64/11
• Windows Server 2022
• PC or laptop with a free USB Type-A port

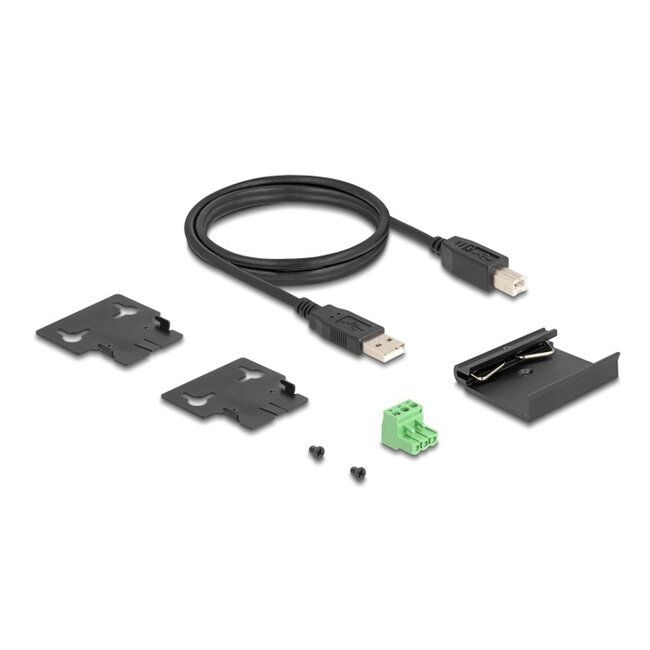

Package content
• Hub USB
• 1 x cable USB A male to USB B male, length ca. 1.8 m
• 2 x wall mounting brackets
• 1 x mounting for 35 mm DIN rail
• 1 x 3 pin terminal block
• User manual
