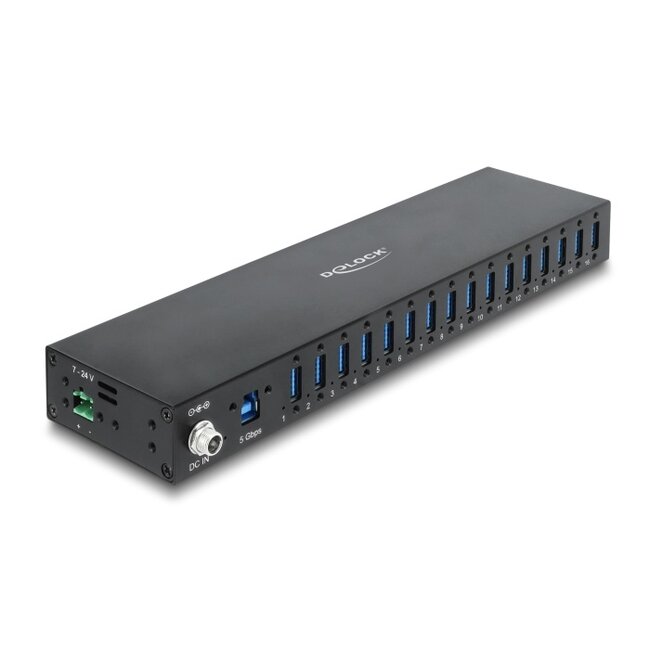

This solid industry capable USB Hub by Delock can be connected to a computer via the USB Type-A interface. It expands the computer by 16 USB Type-A connectors.
Screw connection and mounting option
Each USB port has two screw holes with M3 thread. Appropriate cables can be plugged in and screwed into the screw holes. This ensures a secure data connection even in mobile environments.

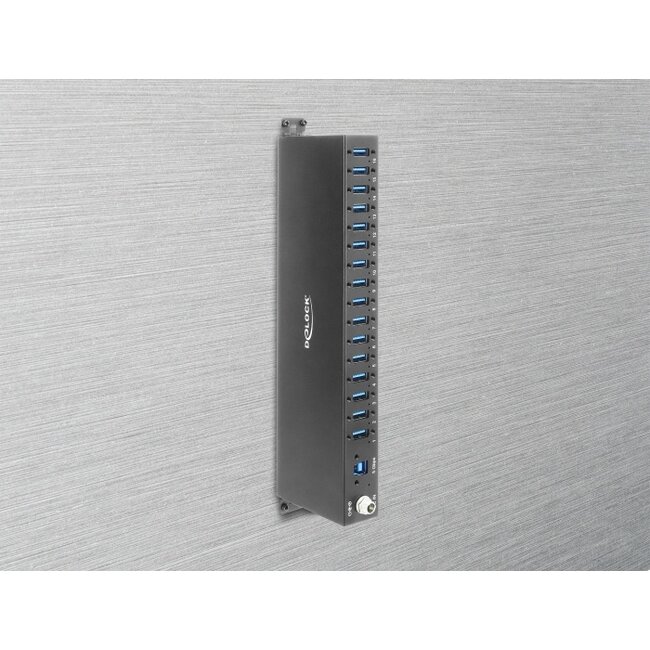

In addition, the hub comes with wall mounting plates and a DIN rail bracket, making it perfect for installation in an industrial environment.
ESD fuse
The USB ports are protected against electrostatic discharges up to 8 kV.
Power Supply
If necessary, an optional power supply or an optional power cable can be connected to the power socket. A voltage between 7 - 24 V can be applied to the terminal power connection, and to the DC connection.
• Connectors:
1 x USB 5 Gbps Type-B female
16 x USB 5 Gbps Type-A female
1 x 7 - 24 V DC jack
1 x 7 - 24 V 2 pin terminal power connector
• Chipset: VIA VL817
• Data transfer rate up to 5 Gbps
• Bootable
• Plug & Play
• 17 x LED indicator
• Robust metal housing
• USB ports with screw holes

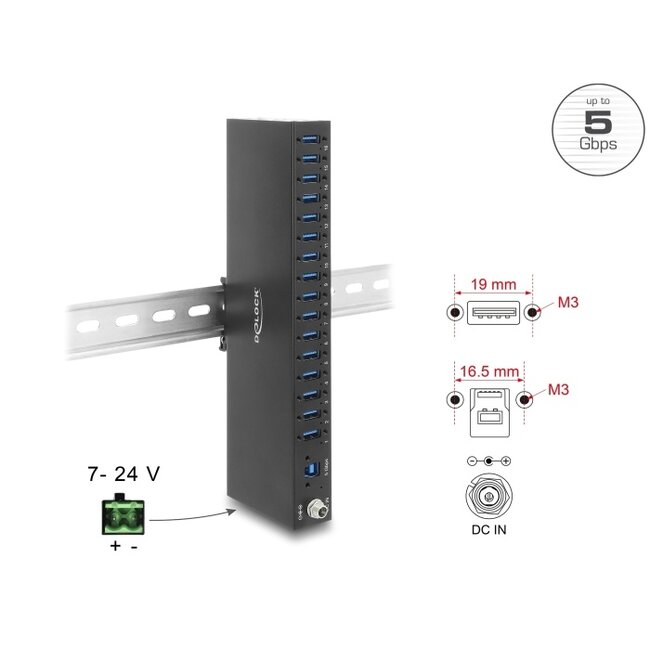

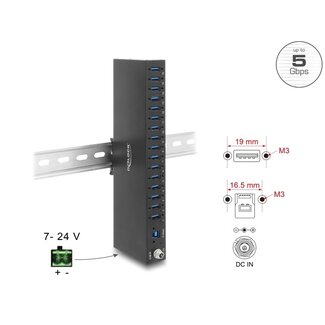

• Pitch of screw hole USB Type-A: ca. 19 mm
• Pitch of screw hole USB Type-B: ca. 16.5 mm
• Thread size: M3
• Removable wall-mount brackets
• Power supply: Bus-powered or Self-powered
• Flexible power supply with 7 V to 24 V
• ESD protection up to 8 kV for all ports
• Operating temperature: -40 °C ~ 85 °C
• Storage temperature: -40 °C ~ 125 °C
• Colour: black
• Dimensions (LxWxH): ca. 177 x 67 x 28 mm
Specification of power connector
DC:
• 7 - 24 V
• Dimensions:
inside: ø ca. 2.5 mm
outside: ø ca. 5.5 mm
length: ca. 10 mm
terminal:
• 7 - 24 V
• Linux Kernel 6.2 or above
• Mac OS 13.1 or above
• Windows 10/10-64/11
• Windows Server 2022
• PC or laptop with a free USB Type-A port

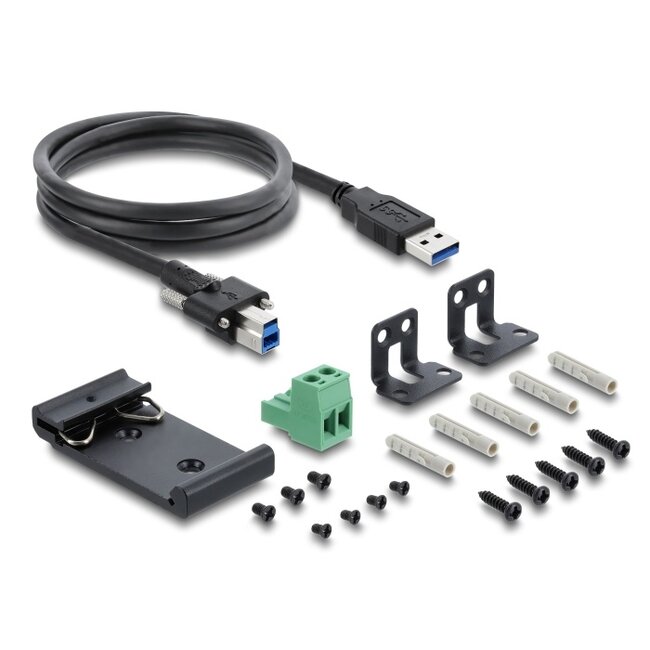

Package content
• Hub USB
• 1 x cable USB A male to USB B male, length ca. 1 m
• 2 x wall mounting brackets
• 1 x mounting for 35 mm DIN rail
• 1 x 2 pin terminal block
• Screws
• Dowel
• User manual
