This robust, industry capable Gigabit Ethernet switch by Delock can be used to connect different network components. The four RJ45 ports support Power over Ethernet according to IEEE802.3af / 802.3at, so they can supply power to PoE-enabled devices, such as an IP camera or a PoE splitter via the network cable. The additional SFP slot allows to expand the network with a fiber optic connection.
Redundant power supply with 48 V to 57 V
The switch accepts two terminal power sources, allowing it to be permanently connected to multiple power sources, enabling applications that require high availability.
• Connectors:
4 x RJ45 jack for 10/100/1000 Mbps Base-T (PoE+)
1 x RJ45 jack for 10/100/1000 Mbps Base-T
1 x SFP slot for 1 Gbps SFP module
1 x 5 pin terminal power connector
• Data transfer rate up to 1 Gbps
• Supports IEEE 802.3 / 802.3u / 802.3z / 802.3ab
• Supports IEEE 802.3af PoE
• Supports IEEE 802.3at PoE+
• Industrial standards: IEC61000-4-2 (ESD), IEC 61000-4-4 (EFT), IEC 61000-4-5 (Surge) level 4
• Industrial standards: IEC 60068-2-6 (Vibration), IEC 60068-2-27 (Shock), IEC 60068-2-32 (Free fall)
• Output power: 30 W per port
• VLAN port Isolation
• LEDs for status monitoring
• Redundant power supply with 48 V to 57 V
• Robust metal housing
• Fanless

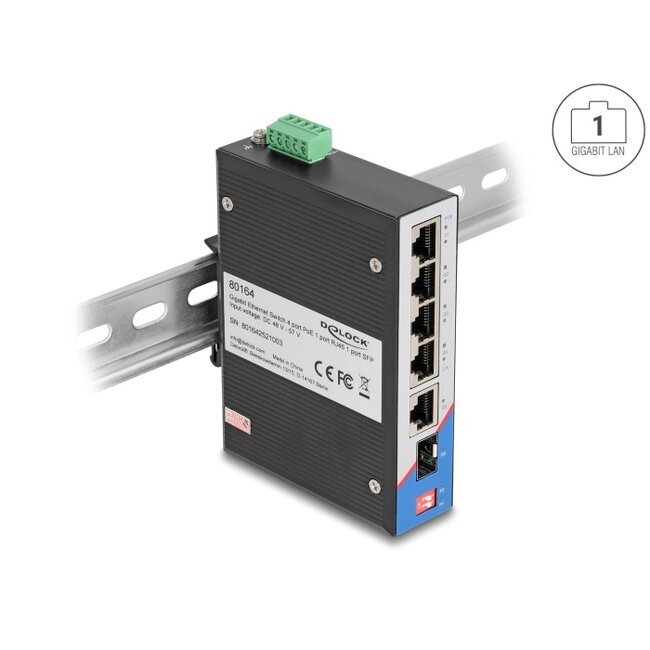

• Suitable for 35 mm DIN rail
• Protection class: IP40
• Operating temperature: -40 °C ~ 85 °C
• Dimensions (LxWxH): ca. 116 x 85 x 33 mm
• Power supply with DC 48 V - 57 V (not included)
Package content
• Switch
• User manual
