This heat shrink tube set by Delock is used to protect and to insulate cables, electrical tubes or wires. Under the effect of heat, the sleeve completely encloses the cable and shrinks. This protects the cable from the effects of the influence of weather and mechanical damage. The adhesive on the inner wall glues the shrink tube to the shrinked wire or cable.
Choice of different sizes and shrink rates
This set contains hoses with six different diameters and two different shrink rates that can be used in many different ways.

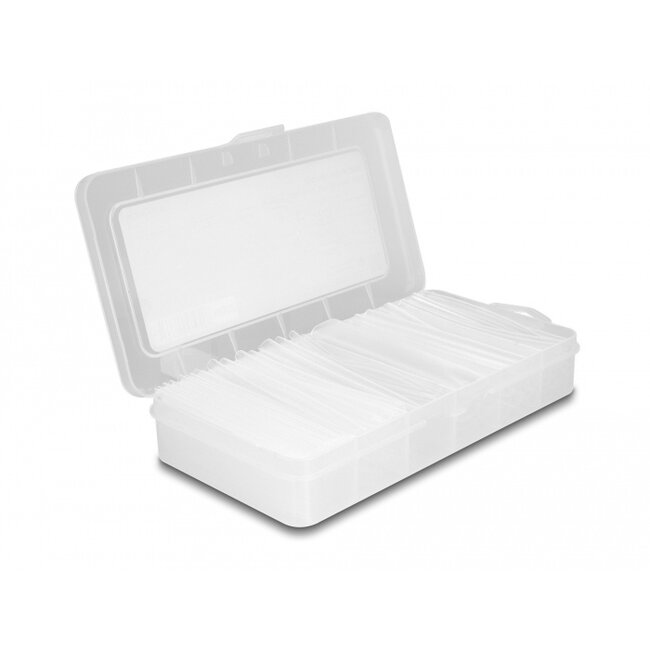

Practical storage box
The handy box is ideal for protecting the shrink tubes, keeping it free of dirt and dust. The box can also be reused to store various tool accessories, such as screws, nuts, etc.
Multifunctional application
The heat shrink tubes can be used e.g. in a workshop, at home or in the industry.
Application of shrink tubes
The heat shrink tube can be heated with a hot air gun, the hose shrinks to half of its original diameter when heated at a 2:1 shrinkage ratio and to one third of its original diameter at a 3:1 shrinkage ratio.
• Content:
Shrinkage ratio 2:1, single wall:
40 x diameter 3.0 mm
25 x diameter 5.0 mm
30 x diameter 10.0 mm
Shrinkage ratio 3:1, dual wall with inside adhesive:
25 x diameter 3.2 mm
10 x diameter 6.4 mm
5 x diameter 12.7 mm
• Tube length: ca. 98 mm
• Shrinking temperature: 125 °C
• Colour: transparent
• Material: polyethylene
• Box dimensions (LxWxH): ca. 203 x 102 x 37 mm

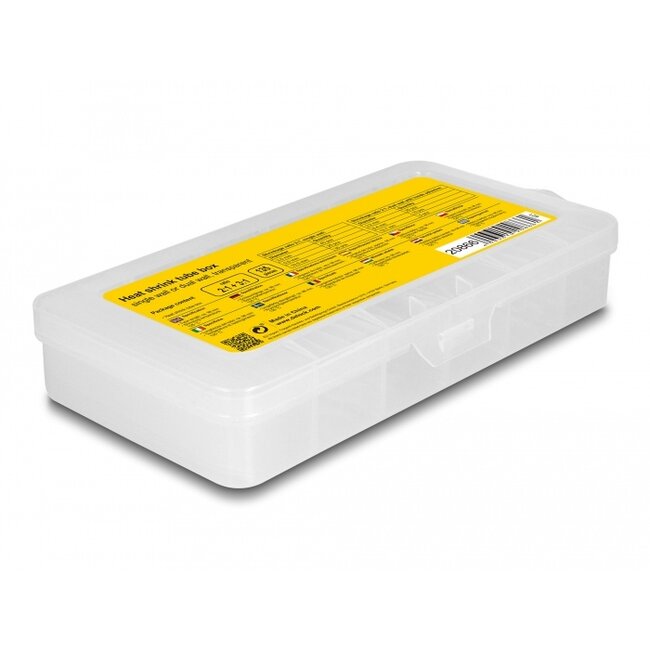

• Heat shrink tube box
