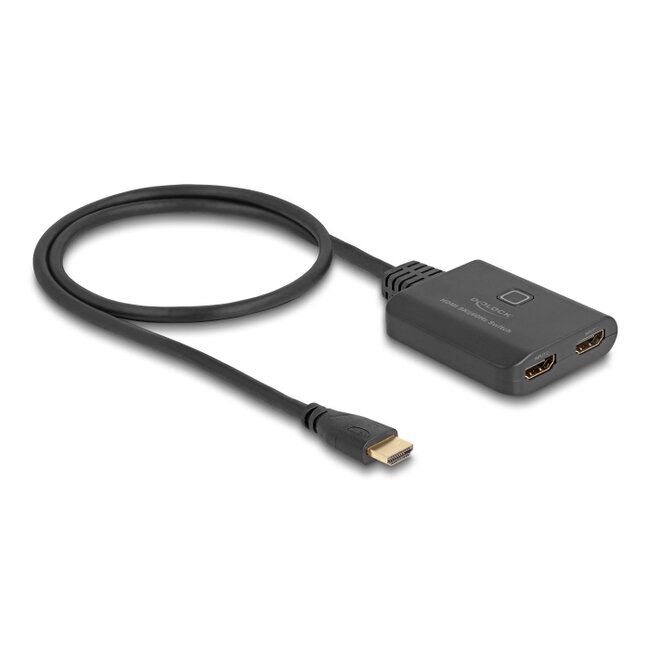

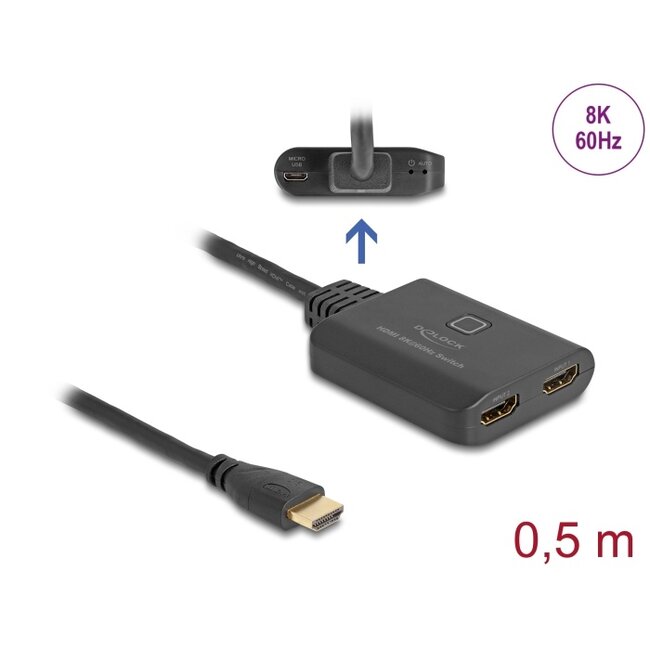

With this HDMI switch by Delock up to two HDMI devices can be used with one HDMI monitor, TV or projector. The button on the device allows switching between the HDMI devices.
USB powered
The device is powered via a USB port, a suitable USB cable is included. If no free USB-A port is available, an optional external power supply is required.
• Connectors:
Input:
2 x HDMI-A female
1 x USB Type Micro-B female (5 V power supply)
Output:
1 x HDMI-A male
• HDMI port switching: automatic function, "Select" button
• LED indicators for active HDMI port
• Ultra High Speed HDMI specification
• Supports HDCP 1.4 and 2.3
• Supports HDR
• Supports CEC
• Supports Game Mode VRR
• Supports Dolby® TrueHD and DTS-HD Master Audio™
• Resolution up to:
7680 x 4320 @ 60 Hz
3840 x 2160 @ 144 Hz
(depending on the system and the connected hardware)
• Video bandwidth up to 1200 MHz / 12 Gbps, max. 48 Gbps
• Power consumption: max. 5 W
• Colour: black
• Dimensions (LxWxH): ca. 66 x 56 x 16 mm
• Cable length without connectors: ca. 50 cm
• HDMI cable
• Power source with a free USB Type-A female port
Package content
• HDMI switch

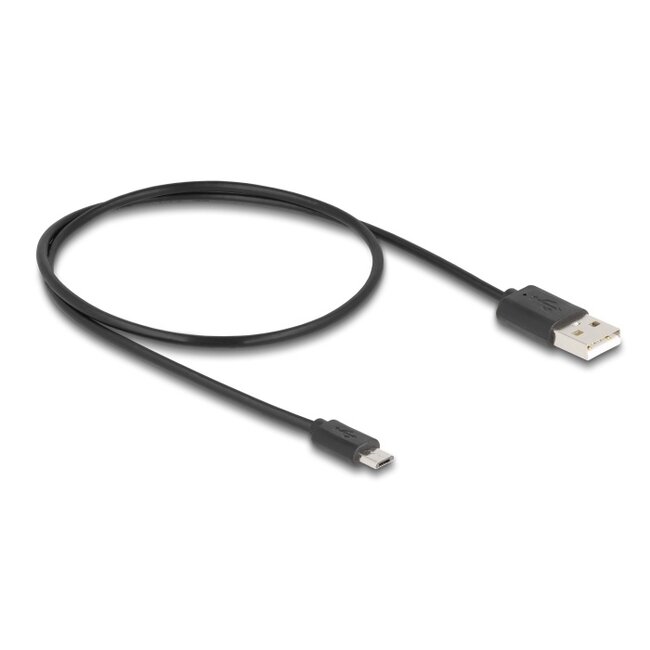

• USB power cable, length: ca. 0.75 m
• User manual
