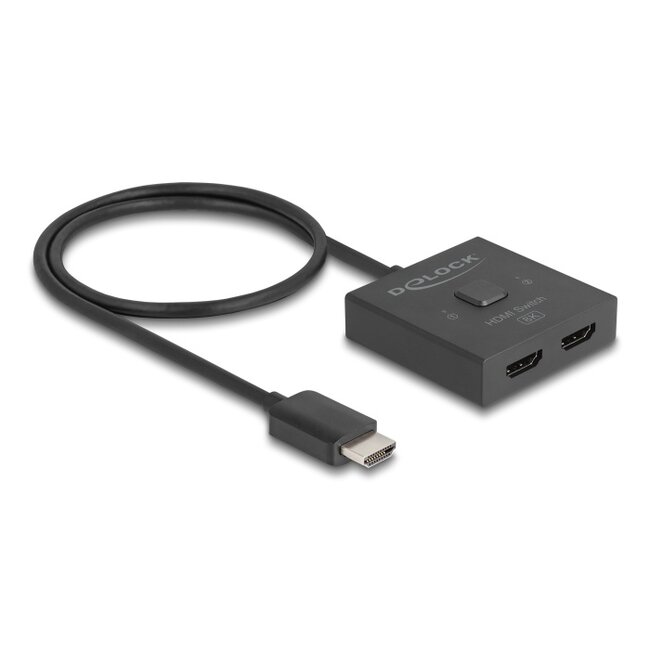

This HDMI switch by Delock is a manual bidirectional switch for connecting different devices with HDMI port. This switch offers two different applications.
Function 1
Up to 2 devices can be connected to a monitor, TV or projector. At the push of a button, the device that is displayed on the screen can be selected.
An HDMI device can be connected to up to 2 screens. The screen on which the signal is displayed can be selected at the touch of a button. Simultaneous output to multiple screens is not possible.
• Connectors:
Function 1
Input: 2 x HDMI-A female
Output: 1 x HDMI-A male
Function 2
Input: 1 x HDMI-A male
Output: 2 x HDMI-A female
• 1 x button with LED indicator for 1 or 2
• Ultra High Speed HDMI specification
• Supports HDR
• Resolution up to:
7680 x 4320 @ 60 Hz
3840 x 2160 @ 144 Hz
(depending on the system and the connected hardware)
• No external power supply needed
• Plastic housing
• Colour: black
• Dimensions (LxWxH): ca. 55 x 55 x 15 mm
• Cable length without connectors: ca. 50 cm
• A free HDMI female port
• HDMI cable
Package content
• Switch bidirectional
• User manual
