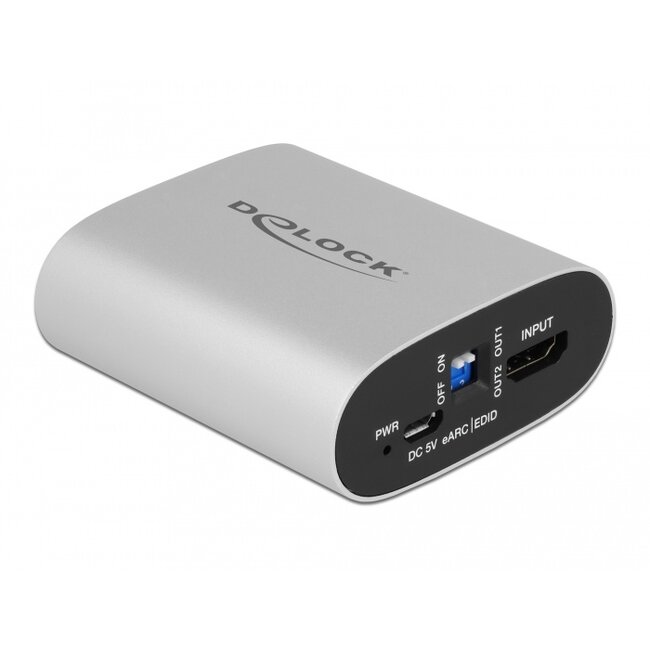

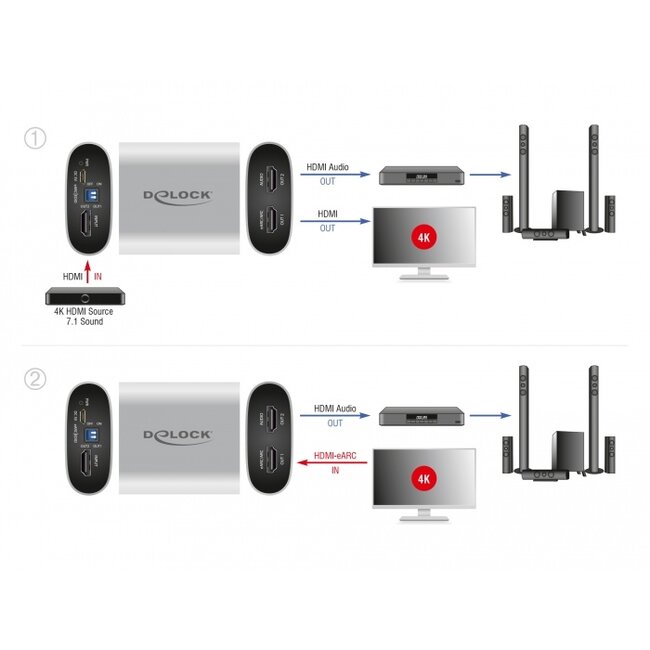

This adapter by Delock can be used to extract the audio signal from an HDMI transmission. While the video signal is displayed on a TV or monitor, the audio signal can be sent over the second HDMI port to a surround receiver. This allows an existing AV receiver or sound bar to be used even if no suitable Ultra-HD connection is available.
HDMI HD audio output
Unlike conventional digital S/PDIF audio outputs, the HDMI audio output can be used to transmit all modern surround formats to the receiver.
Audio Return Channel (ARC)
Alternatively, the eARC function can be activated on the extractor. Then the audio signal of the connected TV device is output at the HDMI audio port of the device.
Note
Operation on the HDMI ARC connector of a soundbar is not possible, the extractor requires a normal HDMI input.

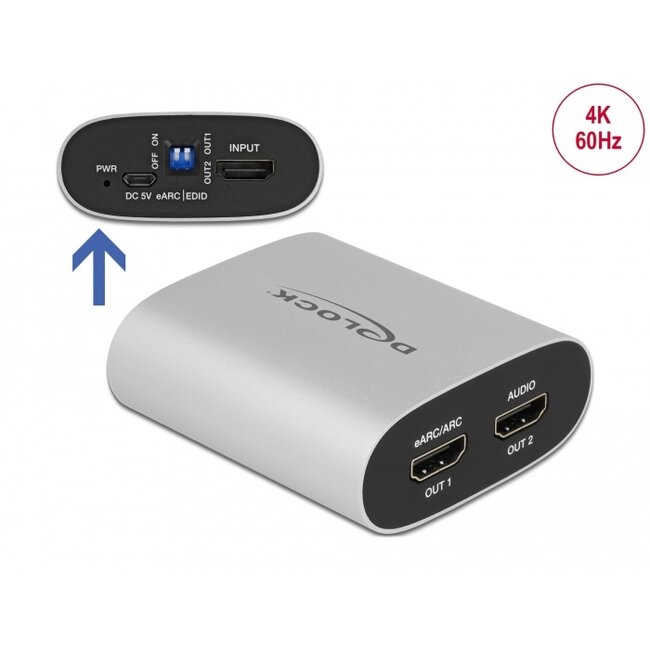

• Connectors:
Input:
1 x HDMI-A female
1 x USB Type Micro-B female (5 V power supply)
Output:
2 x HDMI-A female
• High Speed HDMI, 3D and HDCP 1.4 / HDCP 2.2
• Supports HDR (High Dynamic Range)
• Resolution up to 3840 x 2160 @ 60 Hz
• Video bandwidth up to 600 MHz / 6 Gbps, max. 18 Gbps
• Dedicated HDMI output for audio only with 720p (black screen)
• Supports all common 2.0, 5.1 and 7.1 audio formats:
Dolby Digital, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos
DTS-5.1, DTS-ES 6.1, DTS-HD HRA, DTS-HD Master Audio, DTS:X
• Supported sample rates: 16 / 20 / 24 bit, 32 / 44.1 / 48 / 88.2 / 96 / 192 kHz
• Supports eARC / ARC audio ouput to HDMI audio output
• Supports CEC
• Supports EDID management
• HDMI audio routed to the output (pass-through)
• Power supply via USB (power supply not included)
• Power consumption: max. 2 W
• Metal housing
• Colour: silver
• Dimensions (LxWxH): ca. 70 x 65 x 27 mm
• A free HDMI-A female
• Power source with a free USB Type-A female port
Package content
• HDMI Audio Extractor

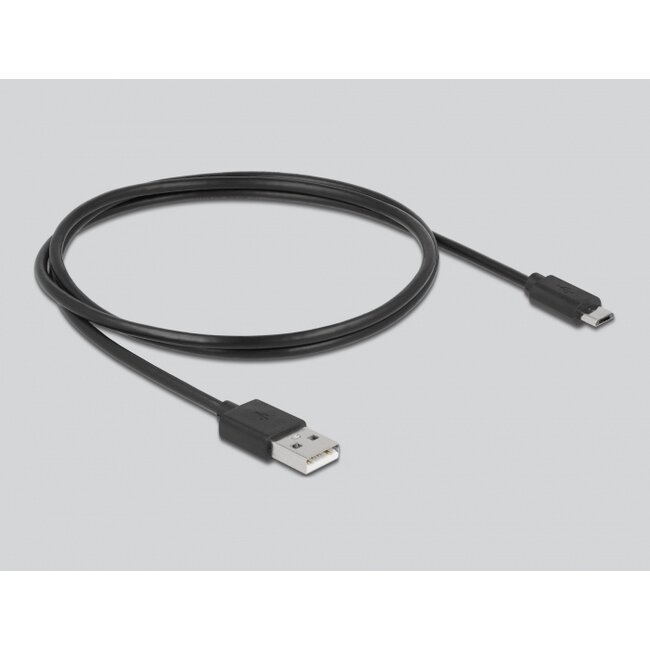

• USB Type-A to Type Micro-B cable, length ca. 100 cm
• User manual
