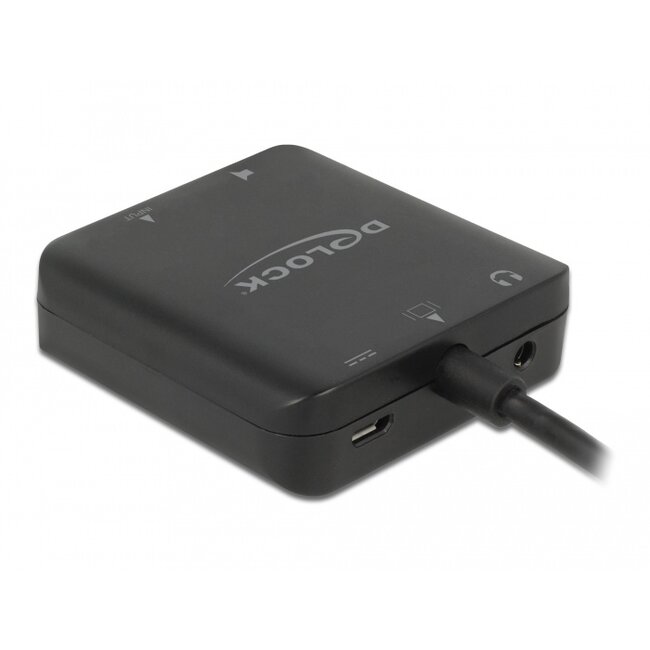

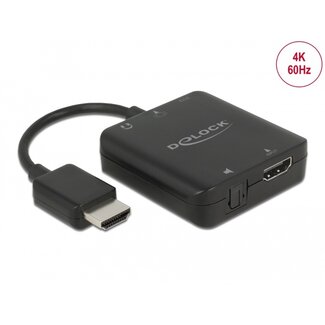

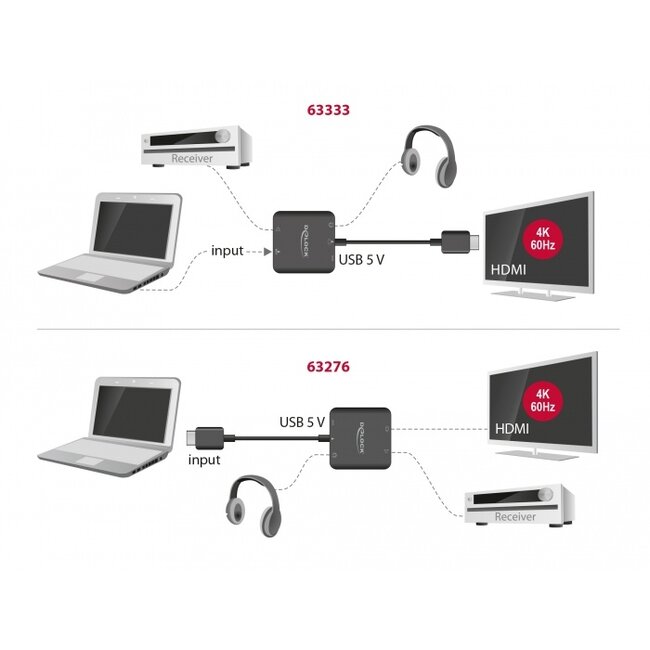

Description This adapter by Delock can be used to extract the audio signal from an HDMI transmission. While the video signal is displayed on a TV or monitor, the audio signal can be sent digital (S/PDIF) or analogue (stereo) to other devices, such as headphones or a surround receiver.
Small and practical

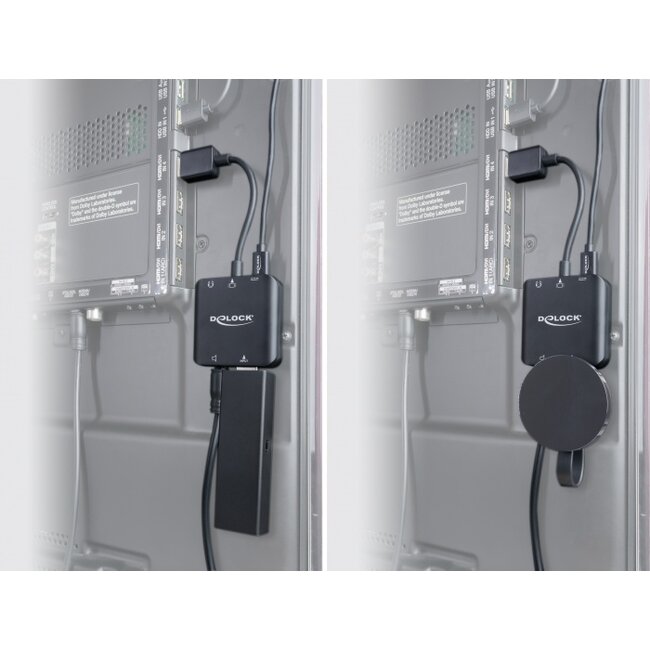

The device can be connected directly to the monitor or the TV, the short cable fits easily into side or recessed HDMI ports. The source, e.g. a TV streaming stick, can be connected to the input port.

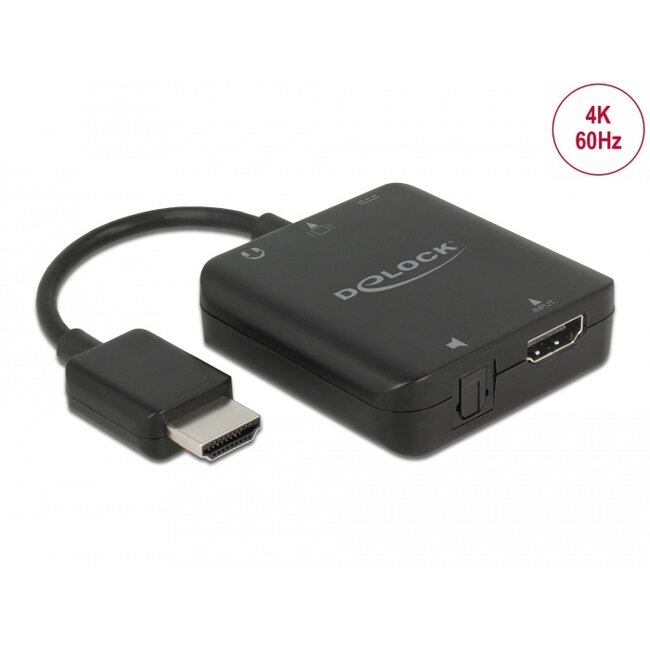

Specification • Connectors:
Input:
1 x HDMI-A female
1 x USB Type Micro-B female (5 V power supply)
Output:
1 x HDMI-A male
1 x 3.5 mm 3 pin stereo jack female (audio)
1 x TOSLINK female S/PDIF
• High Speed HDMI, 3D and HDCP 1.4 / HDCP 2.2
• Supports HDR (High Dynamic Range)
• Automatic switching to stereo (2.0) when using the stereo jack and automatic muting
of the digital output
• Resolution up to 3840 x 2160 @ 60 Hz
• Video bandwidth up to 600 MHz / 6 Gbps, max. 18 Gbps
• Supports all common 2.0 and 5.1 audio formats: LPCM, Dolby Digital, DTS Audio
• Supported sample rates: 16 / 20 / 24 bit, 32 / 44.1 / 48 / 88.2 / 96 kHz
(depending on the system and the connected devices)
• CEC and HDMI audio routed to the output (pass-through)
• Power supply via USB (power supply not included)
• Power consumption: max. 2 W
• Colour: black
• Cable length without connectors: ca. 12.5 cm
• Dimensions without cable (LxWxH): ca. 58 x 58 x 16 mm
System requirements • A free HDMI-A female
• Power source with a free USB Type-A female port
Package content
• HDMI Audio Extractor

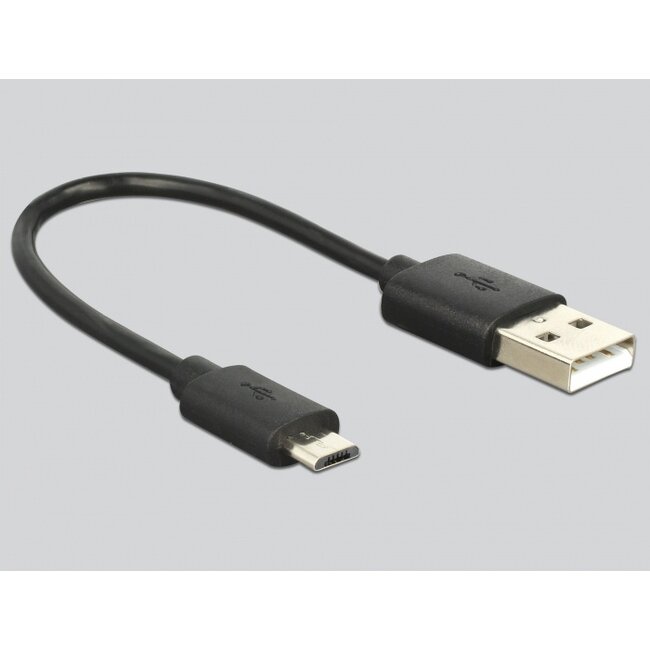

• USB Type-A to Type Micro-B cable, length ca. 30 cm
• User manual
