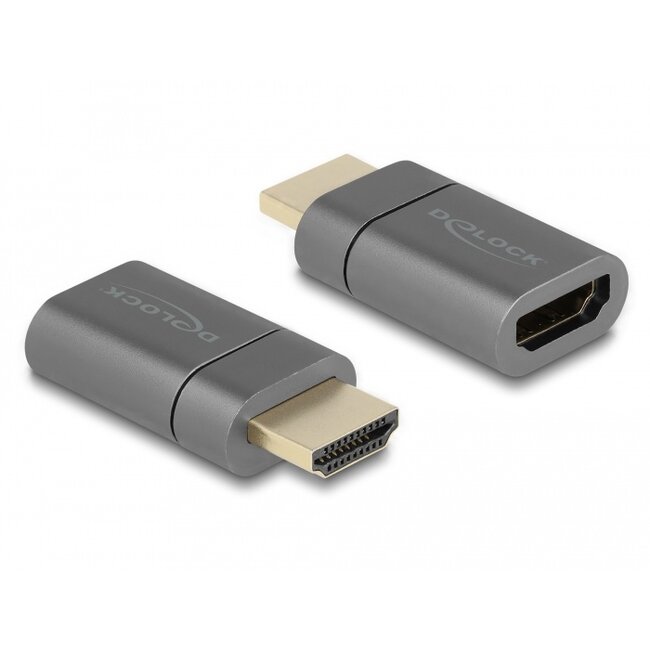

This magnetic adapter by Delock can be used for connecting HDMI devices. The adapter can also be used as a port saver to protect the interface in applications with high contact durability. The adapter is designed to remain inside the port of the device and avoid the deterioration of the interface as well as act as dust protection.
Magnetic function

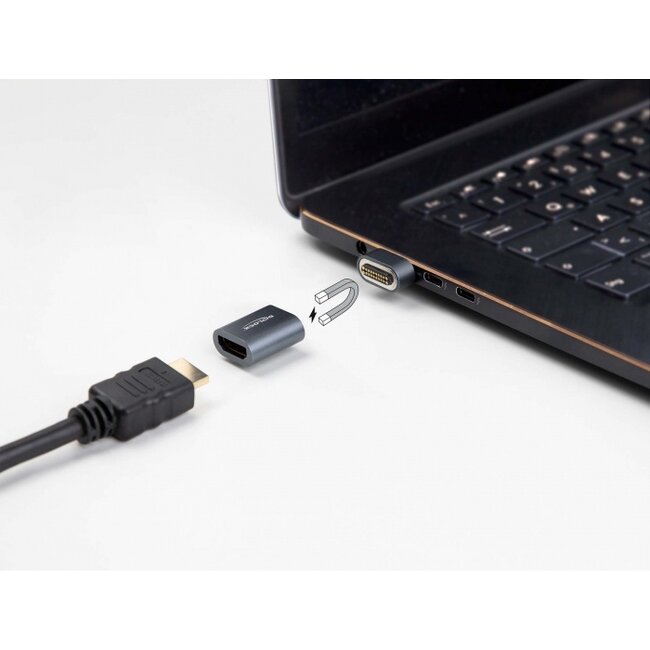

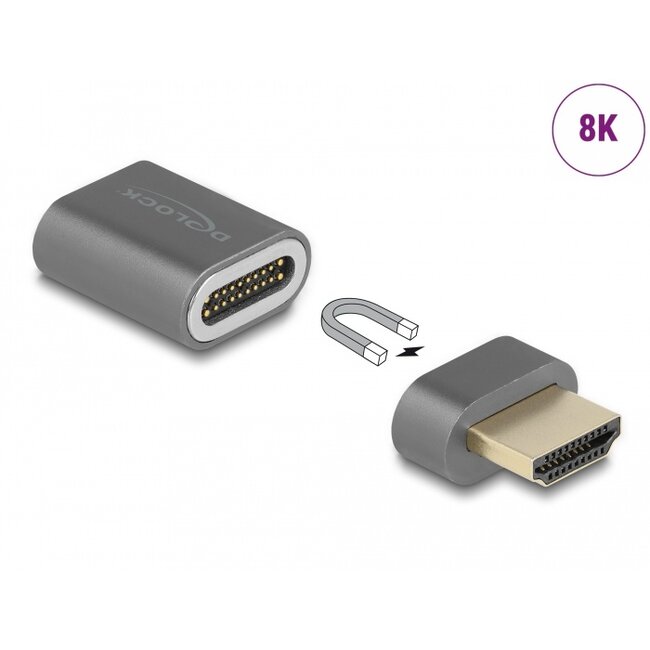

When using the adapter, the cable can be connected to the counterpart of the adapter, the counterpart then connects magnetically to the remaining part in the device. The solid magnetic force supports a secure HDMI connection.
Quality
Optically and qualitatively the adapter convinces by its elegant aluminium housing, which makes it very robust, light weight and durable. The spring contacts (Pogo pins) guarantee a high functional reliability with a very high contact durability.
Note
The connection can be disconnected if the cable is subject to strong tensile stress.
• Connectors:
1 x HDMI-A male > 20 Pogo pin
1 x HDMI-A female > 20 Pogo pin
• Transmission of audio and video signals
• Resolution up to 7680 x 4320 @ 60 Hz (depending on the system and the connected
hardware)
• Supports HDR
• Supports HDCP
• Material: aluminium
• Dimension: 3.2 x 2.0 x 1.0 cm (L/W/H) without connector
• Colour: anthracite
• A free HDMI female port
Package content
• Adapter
