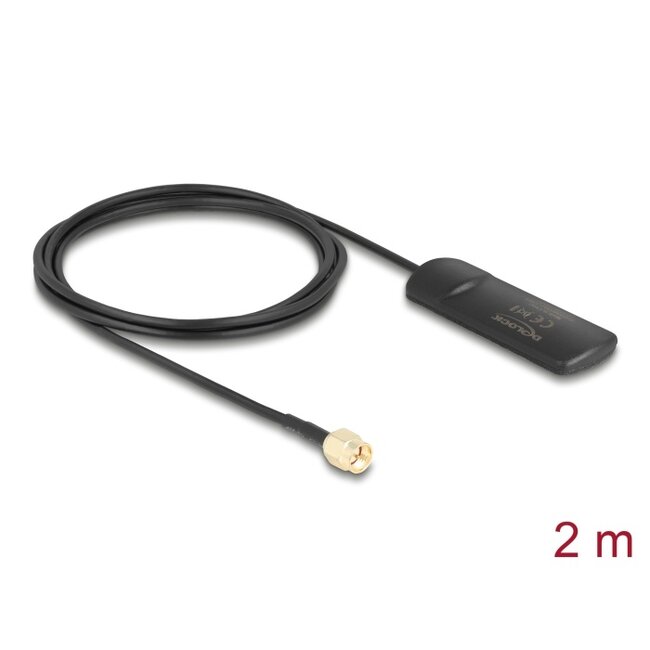

This antenna by Delock can be used indoors and takes advantage of different frequency bands. It is completely compatible to Bluetooth, WLAN 2.4 GHz, ZigBee, DECT and Z-Wave.
Specification• Connector: 1 x SMA plug
• Frequency range:
824 - 894 MHz
1710 - 2170 MHz
2400 - 2500 MHz
• Antenna gain: 2 dBi
• Impedance: 50 Ohm
• VSWR: < 2.0
• Polarisation: linear
• Operating temperature: -40 °C ~ 85 °C
• Colour: black
• Cable type: coaxial
• Cable type: RG-174
• Cable colour: black
• Cable diameter: ca. 2.7 mm
• Cable attenuation:
1.8 dB @ 1.8 GHz per meter
• Cable length incl. connectors: ca. 2 m
• Dimensions (LxWxH): ca. 72.0 x 25.0 x 7.5 mm
• Weight: ca. 40 g
• Device with one free SMA port
Package content
• Antenna
