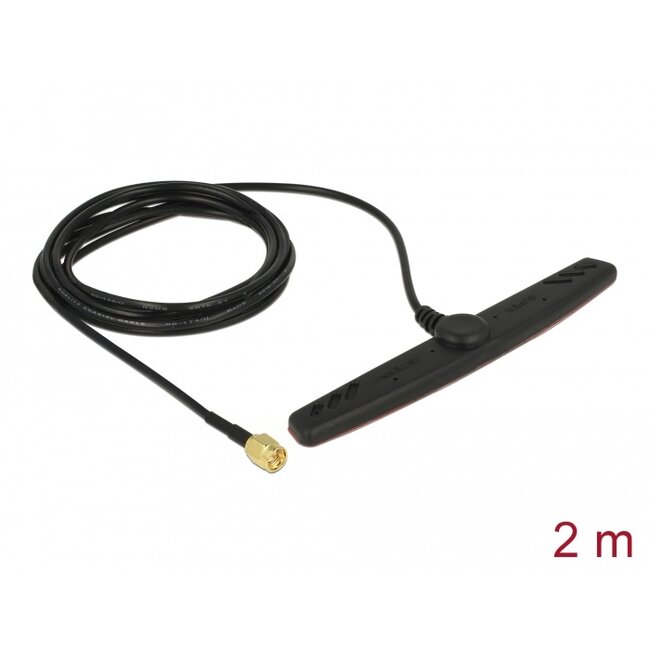

This GSM UMTS LTE antenna by Delock allows the use of different frequency bands indoors. It is completely ZigBee 868 / 915 MHz, DECT and Z-Wave compatible.
Specification• Connector: SMA plug
• LTE Band: 1-6/8-10/19/25/33-37/39
• Frequency range: 824 - 960, 1920 - 2170 Mhz
• GSM, UMTS, ZigBee 868 / 915 MHz, DECT, Z-Wave
• Antenna gain: 2.5 dBi
• Impedance: 50 Ohm
• Polarisation: vertical
• VSWR: 2.0
• Operating temperature: -40 °C ~ 85 °C
• Colour: black
• Dimensions (LxWxH): ca. 126.0 x 16.2 x 8.8 mm
• Cable category: coaxial
• Cable type: RG-174
• Cable colour: black
• Cable attenuation: 1,8 dB @ 1.8 GHz per meter
• Cable diameter: ca. 2.7 mm
• Cable length incl. connector: ca. 2 m
• Device with free SMA connector
Package content
• GSM UMTS LTE antenna
