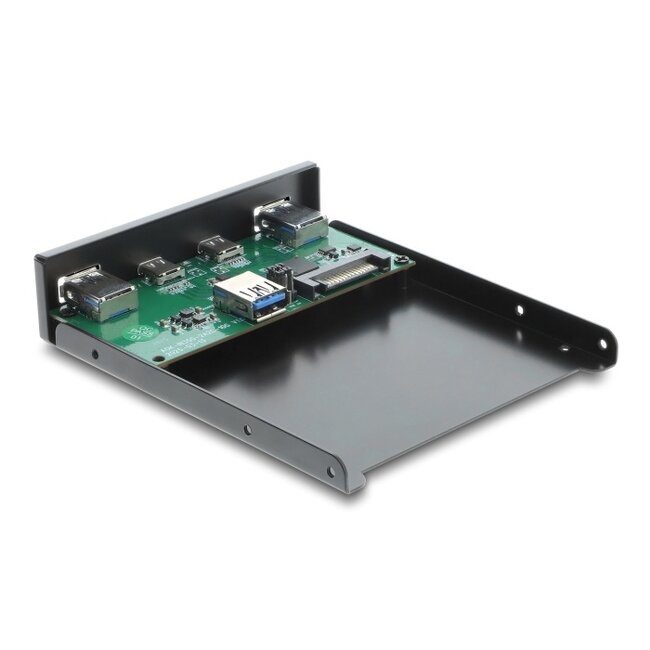

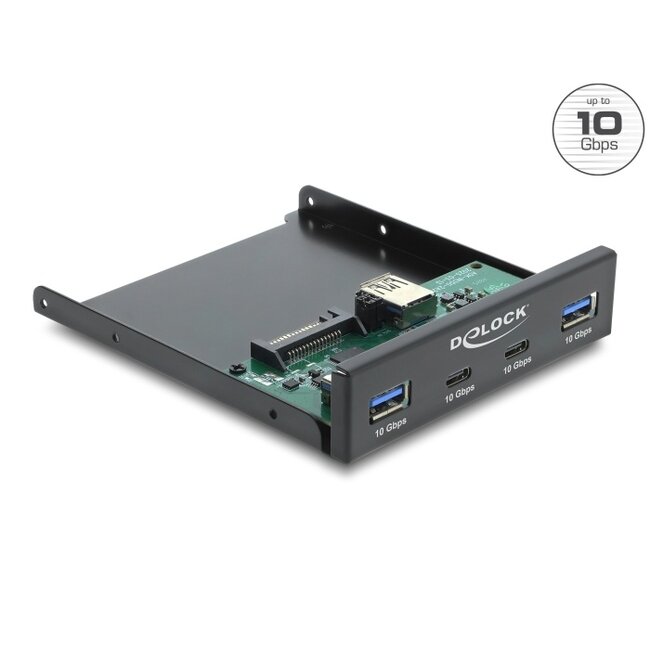

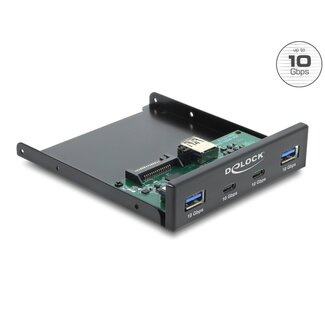

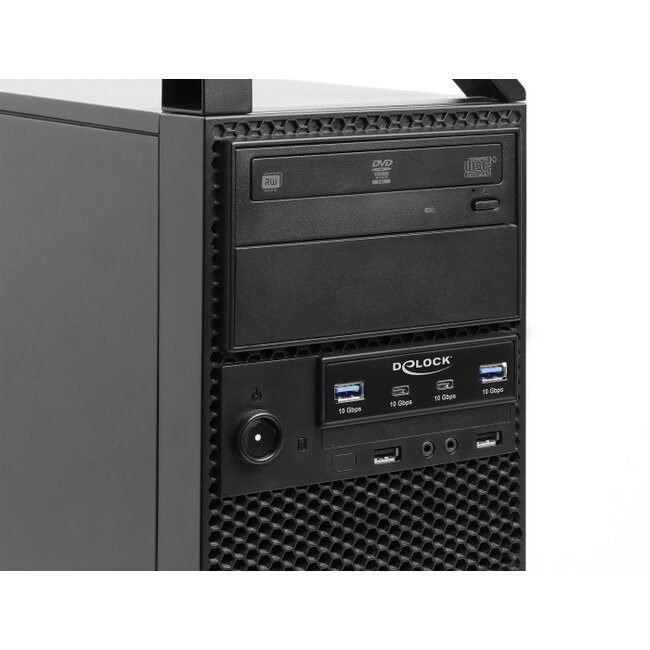

This front panel by Delock can be installed into a free 3.5″ bay of a computer. It has two USB Type-A and two USB Type-C™ ports. It will be connected to the motherboard internally via a USB key A male port.
Specification• Connectors:
external:
2 x USB 10 Gbps USB Type-C™ female
2 x USB 10 Gbps Type-A female
internal:
1 x USB 10 Gbps Type-A female
1 x SATA 15 pin plug (power supply)
• Chipset: VIA VL822
• Data transfer rate up to 10 Gbps
• Electrical power per port:
USB Type-C™: max. 15 watt (5 V / 3 A)
USB Type-A: max. 4.5 watt (5 V / 0.9 A)
• 2 x Jumper for setting the power supply via USB or SATA power connector
• 3.5″ metal frame
• Colour: black
• Hot Swap, Plug & Play
• Linux Kernel 6.11 or above
• Windows 10/10-64/11
• PC with one free 3.5″ bay
• Motherboard with a free USB type-E Key A female port
• Power supply with SATA 15 pin receptacle
Package content
• 3.5″ front panel

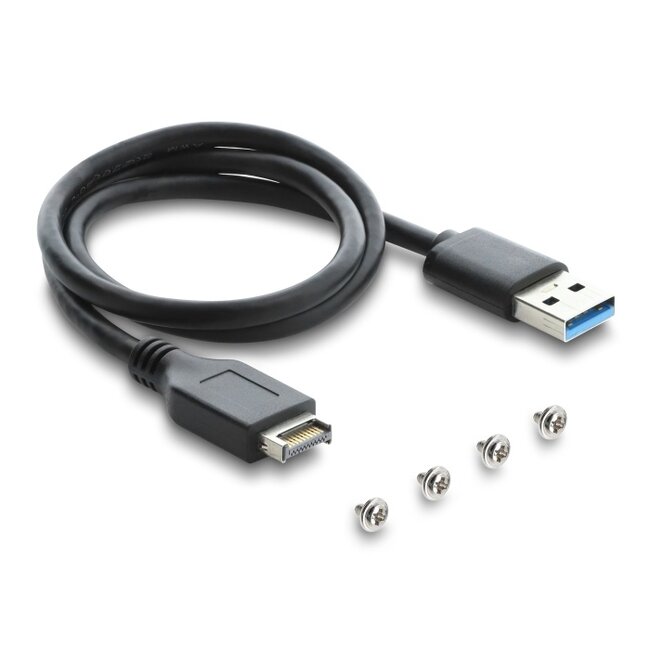

• Cable USB Type-A male to USB type-E key A male, length ca. 50 cm
• Screws
• User manual
