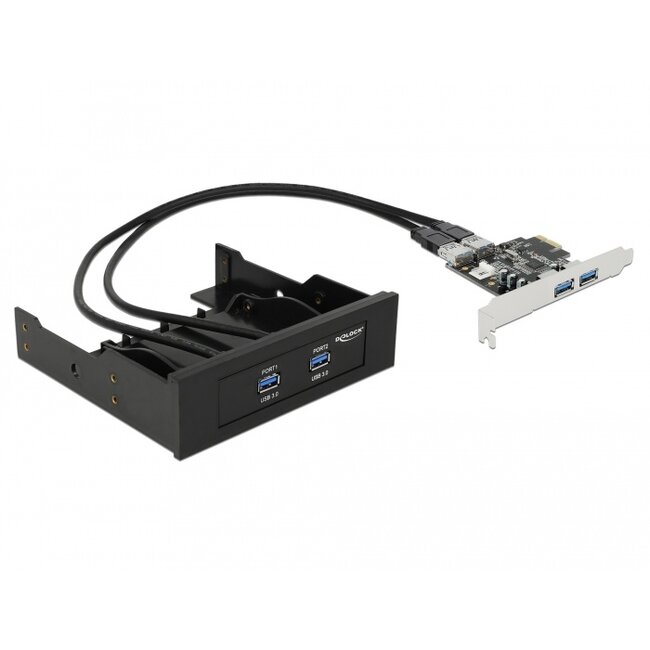

This USB 3.0 front panel by Delock can be installed into a free 3.5″ or 5.25″ bay of yours computer and will be connected internally by using the included PCI Express card. It expands your system by two USB 3.0 ports on the front side and two USB 3.0 ports on the back side. Thus you can connect different USB devices like e.g. docking station, card reader, external enclosure.
Specification• Connector:
Front Panel:
external: 2 x USB 3.0 Type-A female
internal: 2 x USB 3.0 Type-A male with connecting cable
PCI Express card:
external: 2 x USB 3.0 Type-A female
internal: 2 x USB 3.0 Type-A female
1 x Molex 4 pin power connector
• Data transfer rate up to:
SuperSpeed 5 Gbps,
Hi-Speed 480 Mbps,
Full-Speed 12 Mbps,
Low-Speed 1.5 Mbps
• USB 3.0 cable of the front panel will be connected internally to the PCI Express card
• Length of internal USB 3.0 cable: ca. 60 cm
• Windows Vista/Vista-64/7/7-64/8/8-64/8.1/8.1-64/10/10-64, Linux Kernel 2.6
• PC with one free PCI Express slot
• PC with one free 3.5″ bay
• Power supply with a free Molex power connector
Package content
• 3.5″ Front Panel USB 3.0 with connecting cable
• PCI Express card USB 3.0

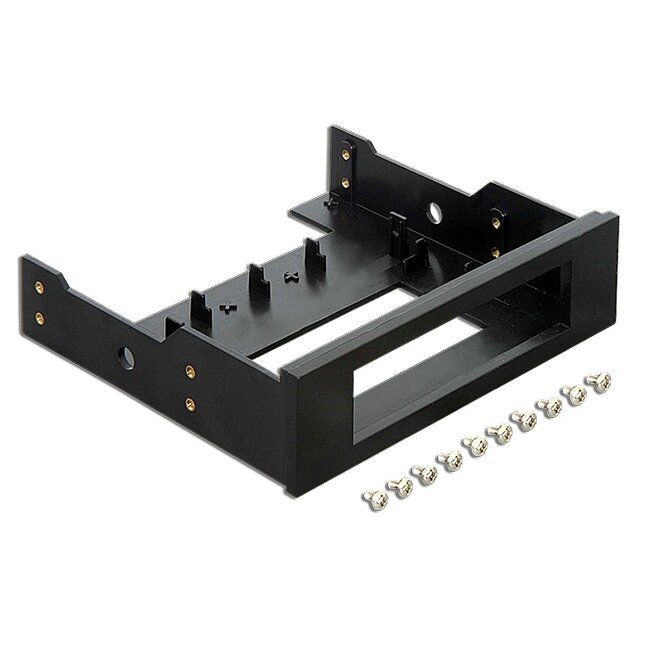

• 5.25″ frame

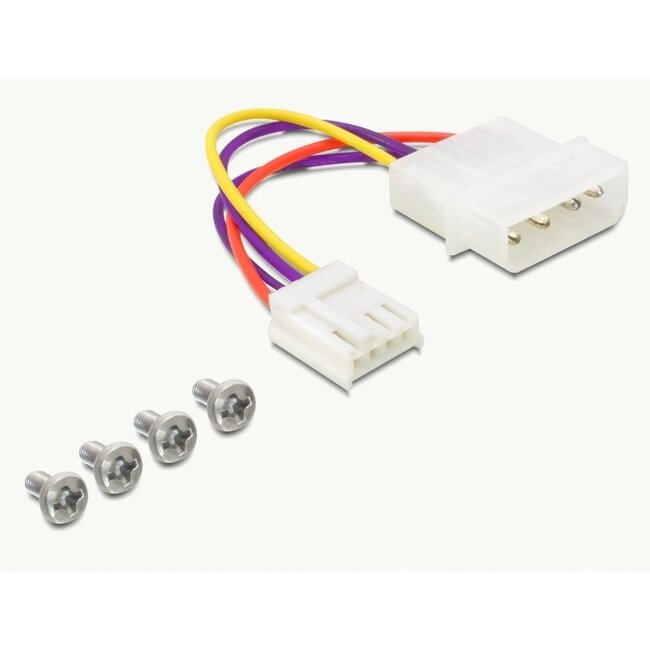

• 4 pin power cable
• Screws
• Driver CD
• User manual
