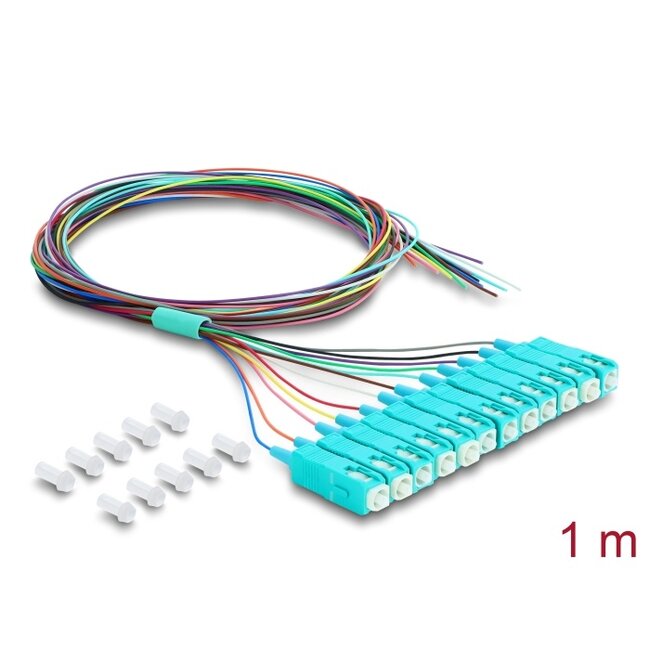

The fibre optical pigtail cable by Delock is ideal for fibre optic installations in data centres, network cabinets or FTTH applications. It features 12 pre-terminated SC / UPC connectors on one side and open fibre ends on the other, ideal for precise splicing and patch panel mounting.
Specification• Connectors:
12 x SC-UPC Simplex male
12 x open wires
• Ceramic ferrule with dust protection
• Multi-mode OM3 cable
• Fibre: 50/125 µm
• Insertion loss < 0.35 dB
• Return loss > 35 dB
• Smallest bending radius: 30 mm
• Cable diameter: ca. 4.8 mm
• LSZH (halogen-free)
• Operating temperature: -25 °C ~ 70 °C
• Cable length: ca. 1 m
• Optical fiber cable
