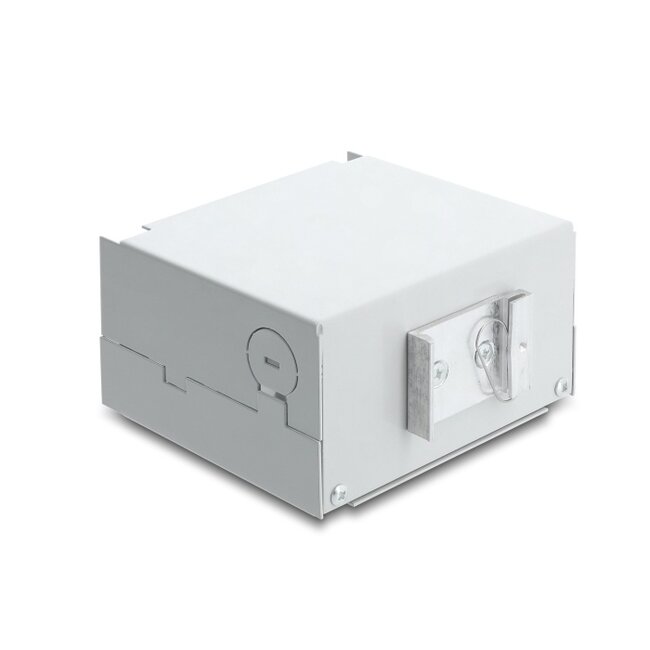

This fiber optic patch panel by Delock is suitable for mounting on a 35 mm wide DIN rail and can accommodate up to 6 fiber optic couplers of the types SC Duplex or LC Quad.
With splice cassette

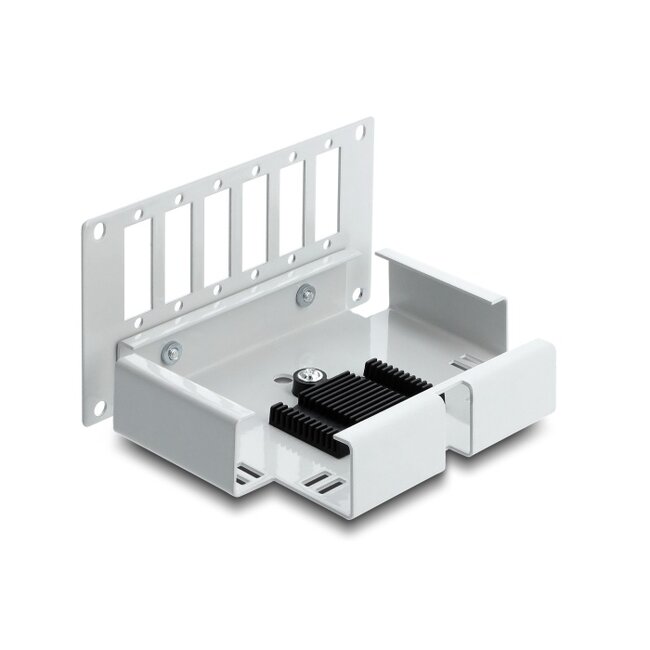

The integrated splice cassette allows for the clean routing of individual fibers, ensuring optimal transmission of optical signals.
• 6 slots for SC Duplex or LC Quad couplings
Rectangular cut-out: 26.2 x 9.5 mm
Mounting hole diameter: ca. 2.7 mm
Pitch of screw hole: ca. 30.7 mm

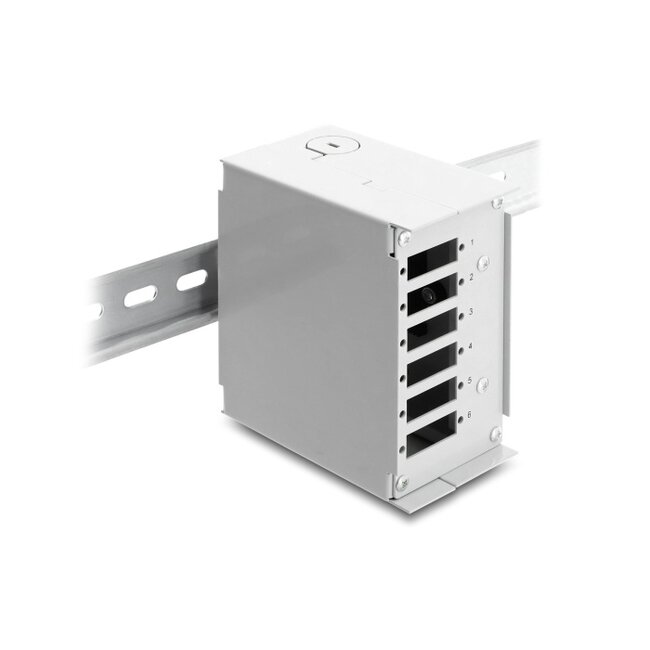

• DIN rail mounting: 35 mm
• With splice cassette

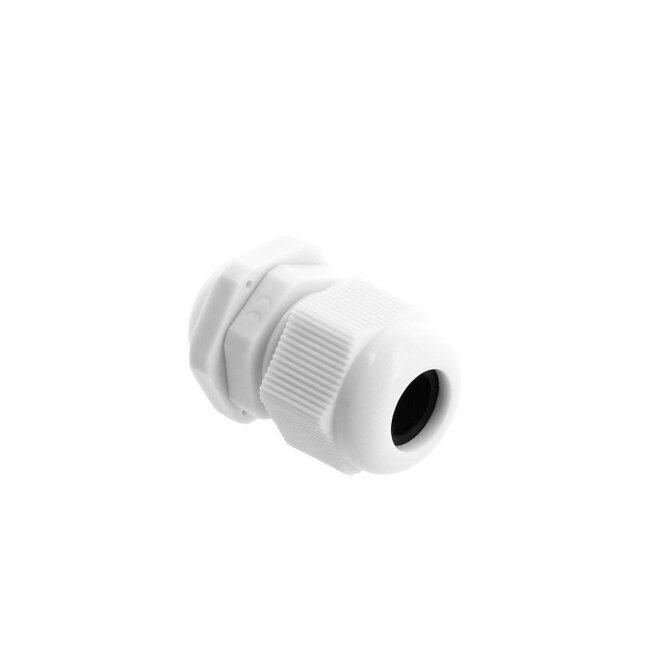

• PG13.5 cable gland
• Environmental temperature: -40 °C ~ 75 °C
• Housing colour: grey
• Housing material: metal
• Dimensions (LxWxH): ca. 110 x 98 x 61 mm
• Fiber optic distribution box
