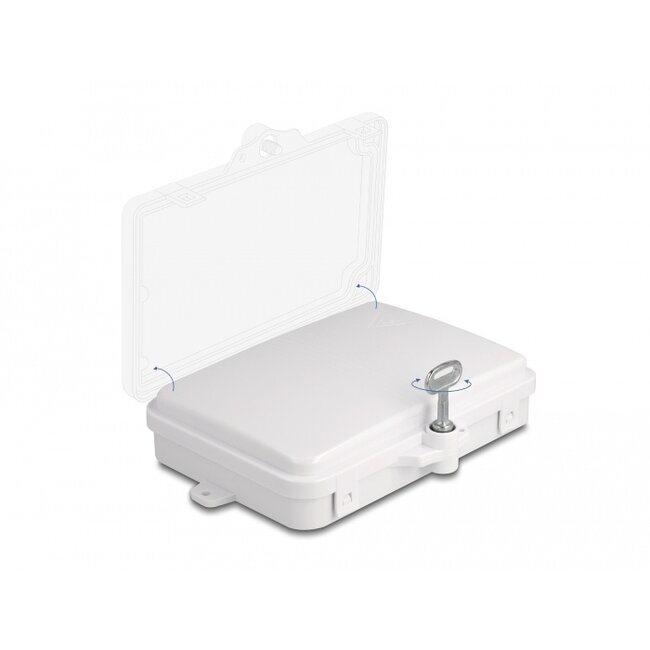

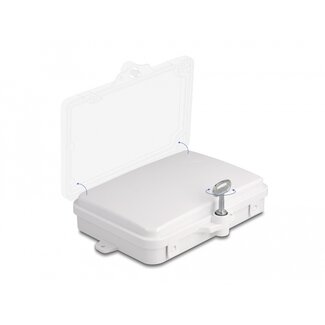

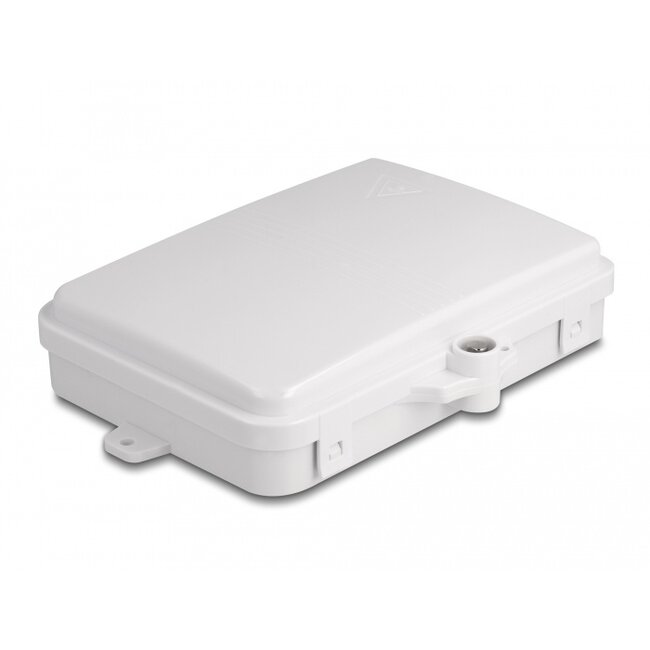

This lockable distribution box by Delock can be used for wall mounting and serves as a protective housing for optical cables and couplings. The distribution box can accommodate up to six SC Simplex or LC Duplex couplings.
With splice tray

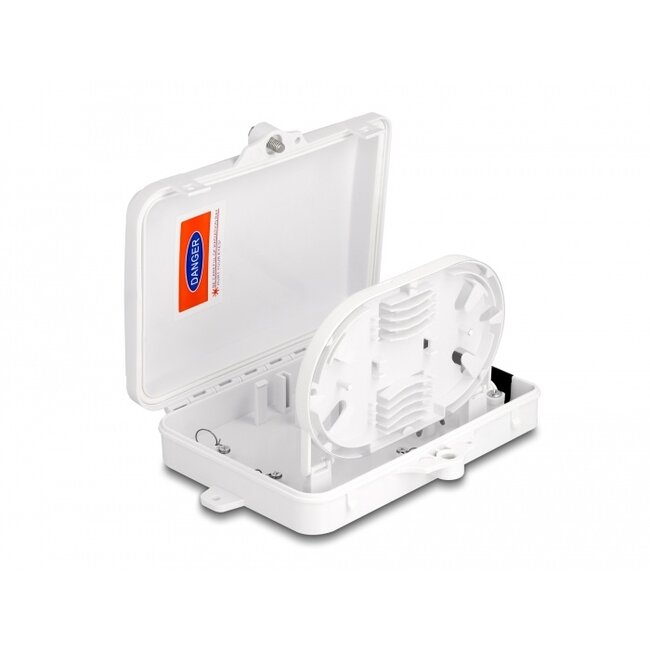

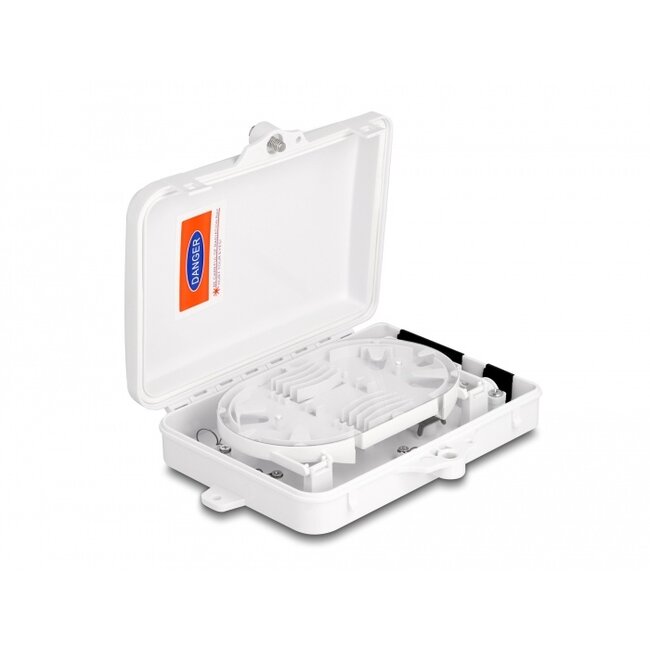

The integrated splice tray enables clean routing of the individual fibers for optimal transmission of lightwave signals.
IP65 dust and waterproof
The distribution box has one cable entry and six cable outlets which are protected by a rubber seal. The seal provides increased protection against dirt and moisture for the connection of fiber optic cables indoor and outdoor.
• Fiber optic distribution box for FTTH applications
• 6 slots for SC Simplex or LC Duplex couplings
• Wall mounting
• Lockable
• With splice tray
• Cable entry with rubber seal
• Cable diameter: ca. 10 mm
• Suitable for indoor and outdoor use
• Protection class: IP65
• Environmental temperature: -40 °C ~ 75 °C
• Housing colour: white
• Housing material: ABS
• Dimensions (LxWxH): ca. 196 x 144 x 41 mm

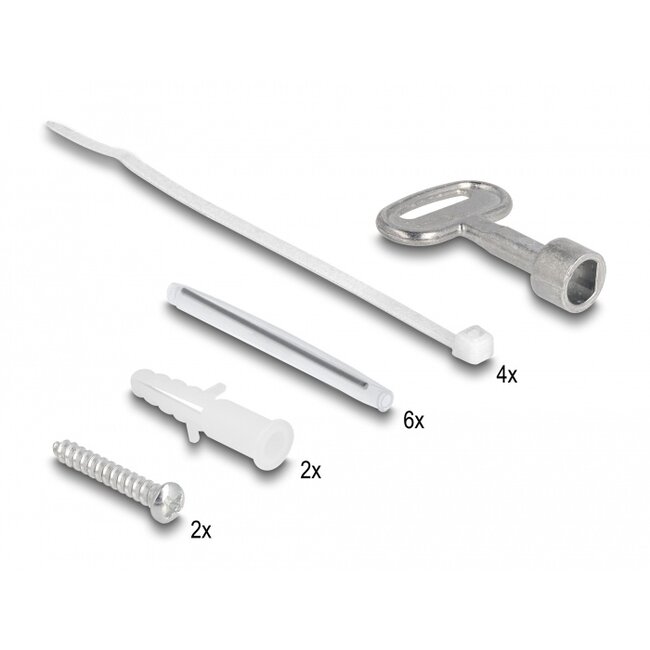

• Fiber optic distribution box
• 1 x key
• Mounting material
• 6 x heat shrink splice protection
