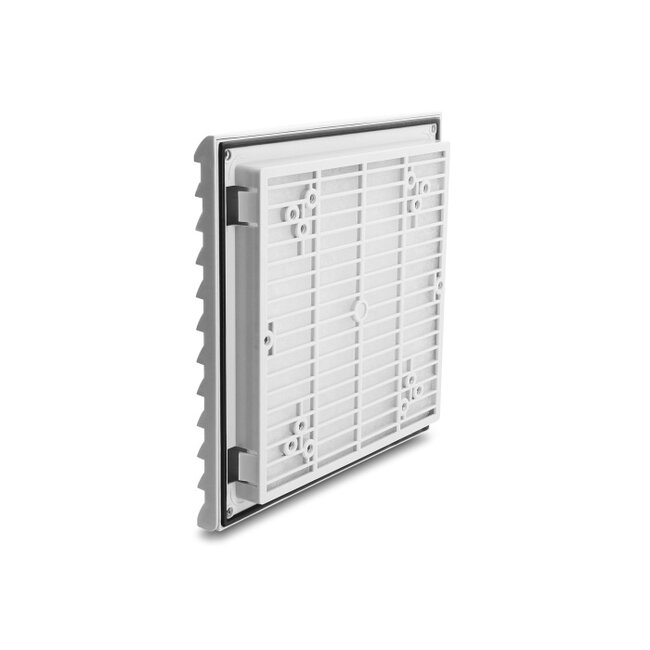

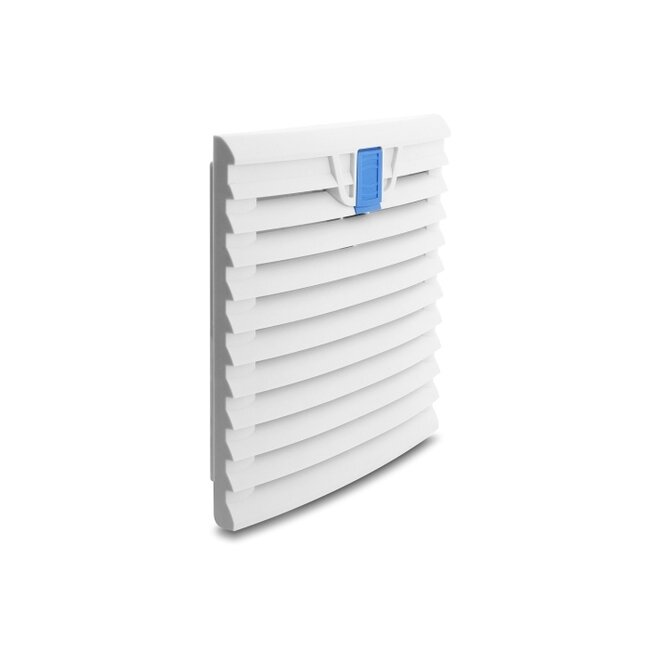

The fan filter with clip by Delock offers reliable protection against dust, dirt and particles and ensures a clean air supply in control cabinets, industrial enclosures and electronic devices with fan ventilation. It significantly contributes to extending the service life of fans and sensitive components.
Practical clip mounting for quick filter replacement

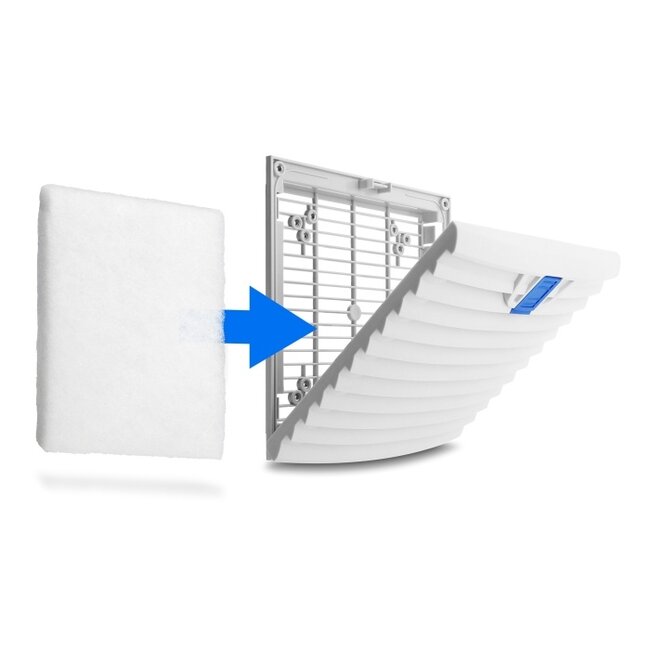

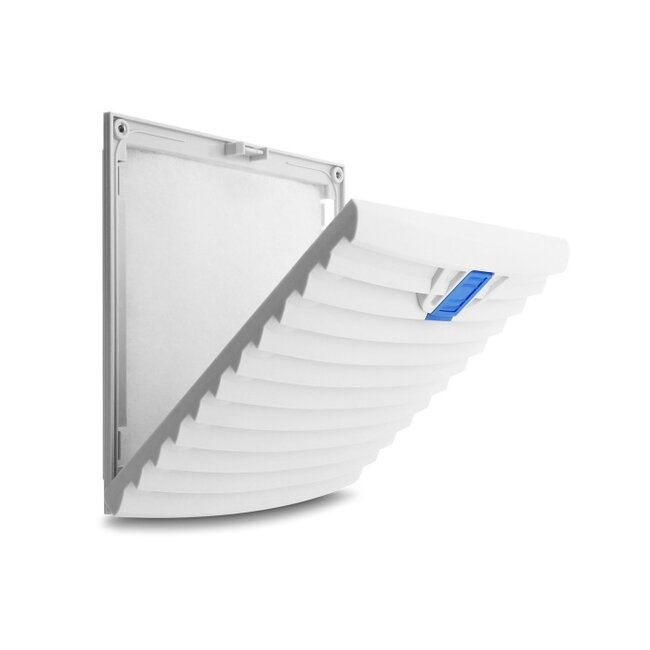

The integrated clip mechanism allows the filter frame to be opened and closed easily without loosening the fan or screw connection. This means that the filter insert can be quickly removed, cleaned or replaced.
• For fan size: 170 x 150 mm
• External dimensions: ca. 204 x 204 mm
• Filter replacement: clip mechanism, no tools required
• Mounting type: screw mounting
• Mounting hole diameter: ca. 4.5 mm
• Pitch of screw hole: ca. 185.0 mm
• Protection rating: IP54
• Filter type: foam
• Dust removal rate: 85 %
• Temperature range: -30 °C ~ 70 °C
• Material: plastic
• Colour: white / blue
• Fan filter protection

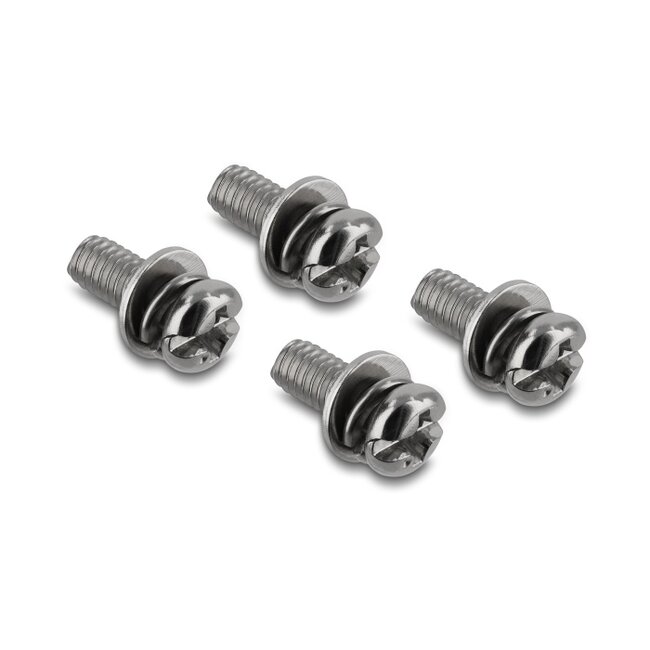

• Mounting material
