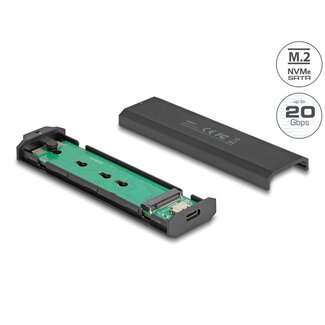

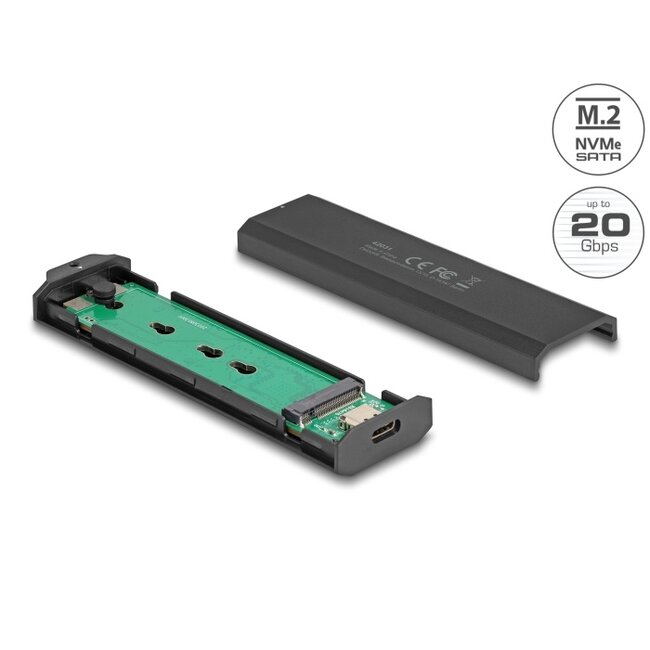

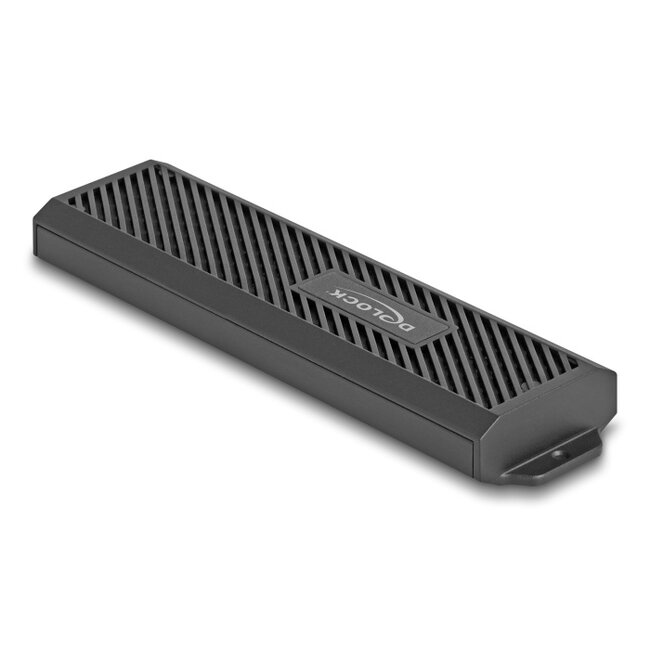

This enclosure by Delock enables the installation of an M.2 PCIe NVMe SSD or SATA M.2 SSD in 2280, 2260, 2242 and 2230 format. It can be connected via USB to the PC or laptop.
Combo enclosure
The big advantage of this Delock M.2 enclosure is that both SATA and PCIe (NVMe) M.2 SSDs can be inserted into the enclosure. The memory is automatically recognized by the chipset and can then be used.

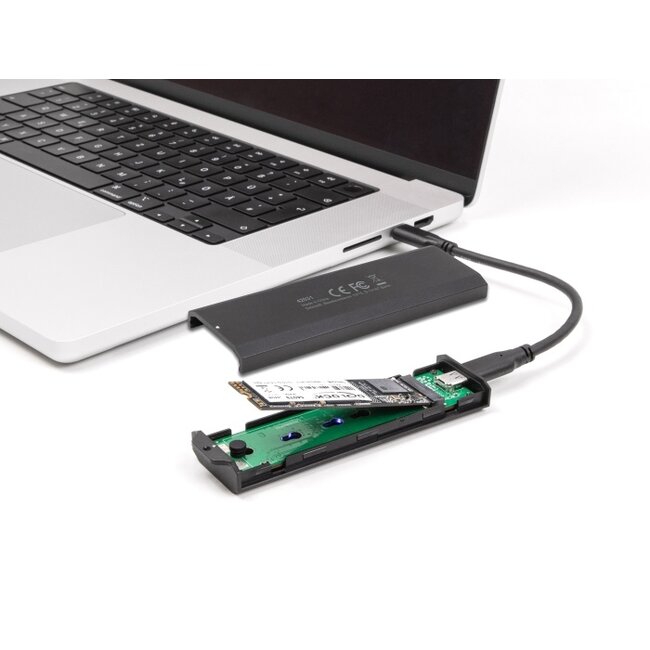

The special feature of this enclosure is that no tools are required to install the M.2 SSD. The SSD is inserted into the slot and attached to the board with a rubber nipple.
• Connectors:
external:
1 x USB 20 Gbps USB Type-C™ female
internal:
1 x M.2 key M slot
• Chipset: Realtek RTL9220
• Supports M.2 modules in format 2280, 2260, 2242 and 2230 with key M or key B+M based on SATA or PCIe (NVMe)
• Maximum height of the components on the module: 1.5 mm, application of double-sided assembled modules supported
• Supports NVM Express (NVMe)
• Bootable
• Data transfer rate up to 20 Gbps
• LED indicator for power and access
• Housing material: aluminium / plastic
• Dimensions (LxWxH): ca. 115 x 32 x 13 mm
• Hot Plug, Plug & Play
• Android 13.0 or above
• Chrome OS
• Linux Kernel 6.2 or above
• Mac OS 12.4 or above
• Windows 10/10-64/11
• iPad Air (4th Generation) or above
• iPad Pro (3rd Generation) or above
• Surface Pro 7
• Device with a free USB Type-C™ port or with a free Thunderbolt™ 3 or Thunderbolt™ 4 port
Package content
• External enclosure M.2

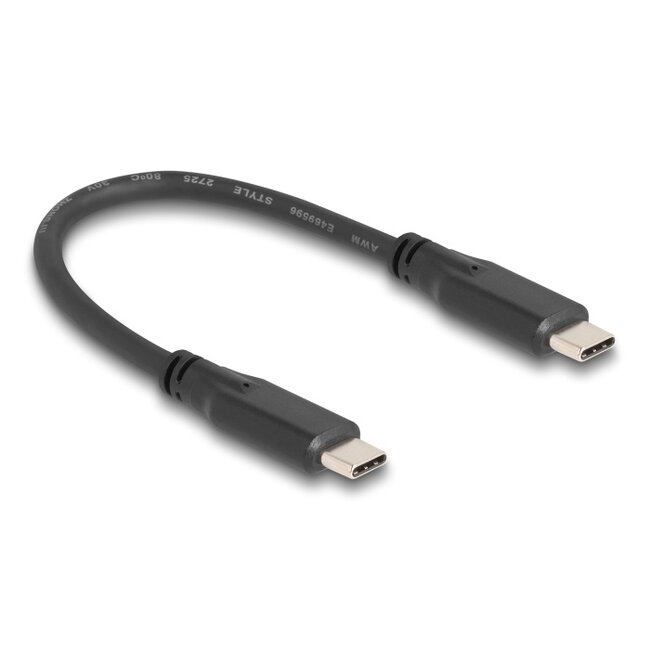

• Cable USB-C™ male to USB-C™ male, length ca. 20 cm
• User manual
