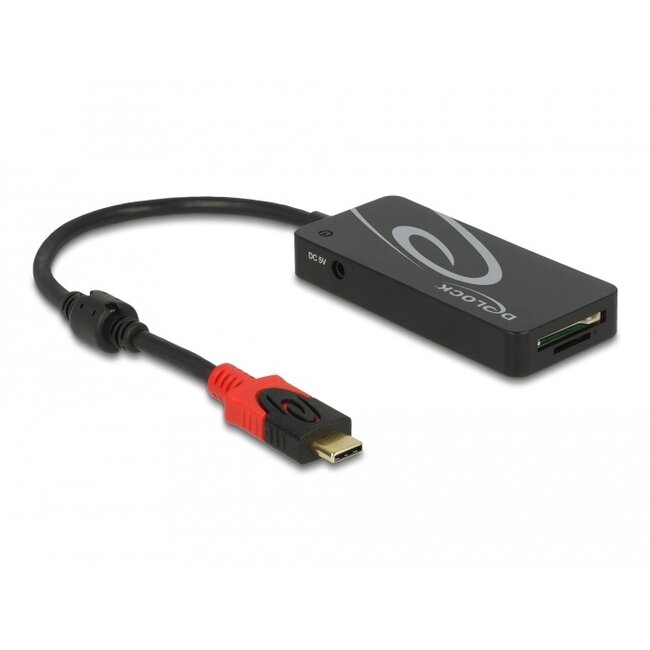

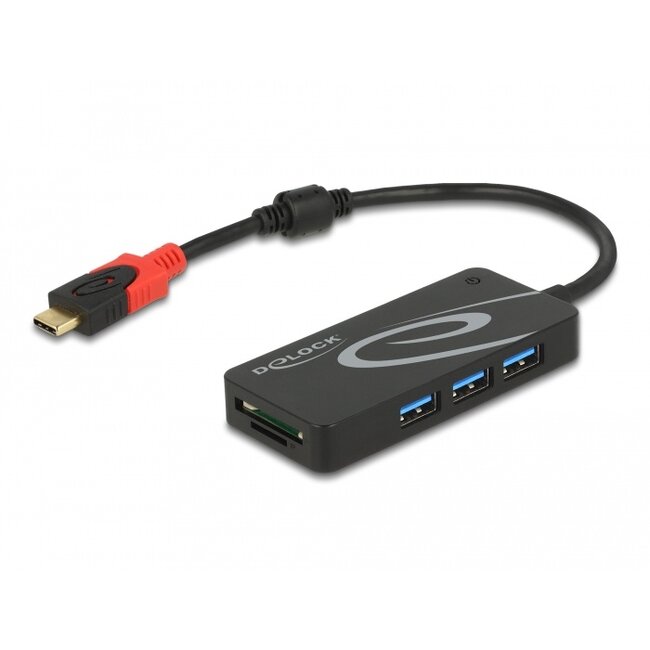

This USB Hub by Delock can be connected to a computer via the USB Type-C™ interface. It expands the computer by three USB Type-A connectors as well as two slots for SD and Micro SD memory cards. If the hub is connected to a computer with a USB 3.2 interface, a maximum current of 900 mA is divided between the USB ports and the card reader. If necessary, an optional power supply or an optional power cable can be connected to the power socket.
Specification• Connectors:
1 x SuperSpeed USB 5 Gbps (USB 3.2 Gen 1) USB Type-C™ male
3 x SuperSpeed USB 5 Gbps (USB 3.2 Gen 1) Type-A female
1 x SD slot
1 x Micro SD slot
1 x 5 V DC jack
• Chipset: Genesys Logic GL3520 (Hub), GL3224 (Card Reader)
• Data transfer rate up to:
SuperSpeed USB 5 Gbps 5 Gbps,
Hi-Speed 480 Mbps,
Full-Speed 12 Mbps,
Low-Speed 1.5 Mbps
• The Card Reader supports following memory cards:
1. Slot Secure Digital
SD, SD3.0 UHS-I, SD High Capacity (SDHC), SD Ultra, SDHC Ultra,
SDXC, MMC-I, MMC-II, MMC 4.0, Mini SD, Mini SDHC,
MMCmobile, RS-MMC, RS-MMC 4.0
2. Slot micro Secure Digital
MicroSD, Micro SDHC, Micro SDHC Ultra, T-Flash, MMCmicro
• USB cable directly on the hub (length ca. 15 cm)
• Dimensions (LxWxH): ca. 90 x 40 x 13 mm
• 1 x ferrite core
• Colour: black
• Plug & Play
Specification of power connector
• 5 V, ground outside, plus inside
• Dimensions:
inside: ø ca. 1.35 mm
outside: ø ca. 3.5 mm
length: ca. 9 mm
• Optional power cable: Delock 82377
• Optional power supply: Navilock 41337
• Android 6.0 or above
• Linux Kernel 2.6.x or above
• Mac OS 10.11 or above
• Windows 7/7-64/8.1/8.1-64/10/10-64/11
• PC or laptop with a free USB Type-C™ or Thunderbolt™ 3 port
Package content
• Hub USB + card reader
• User manual
