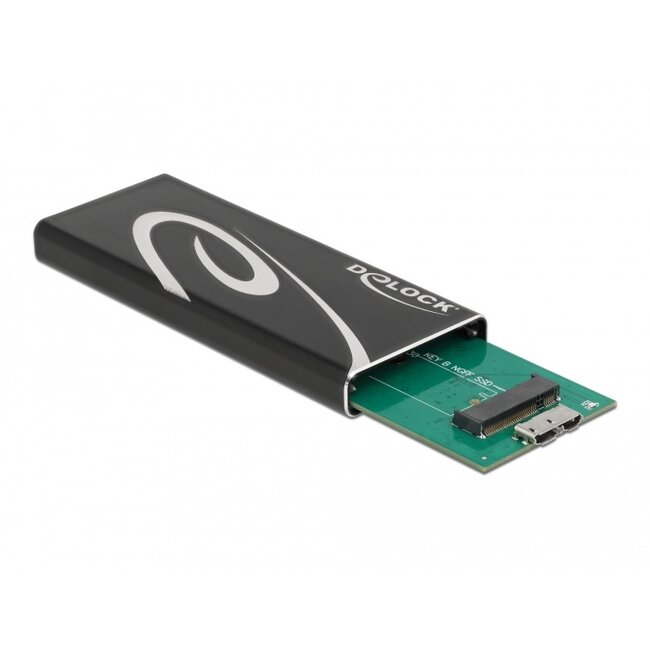

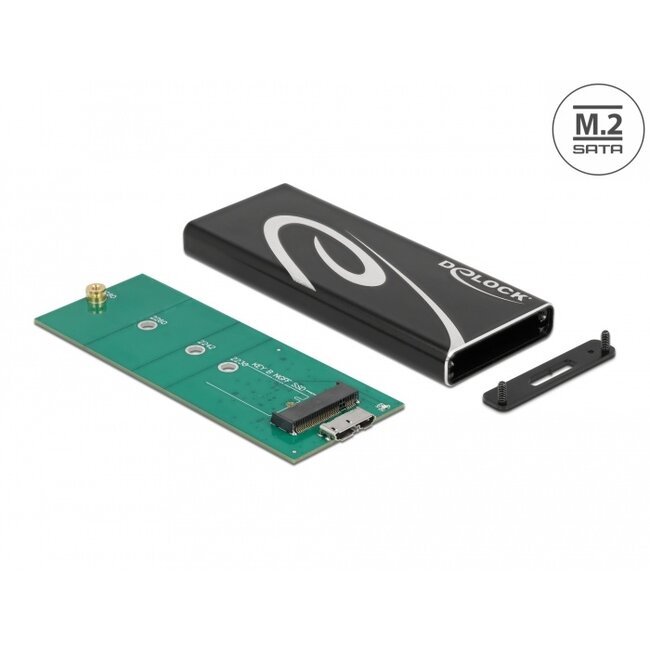

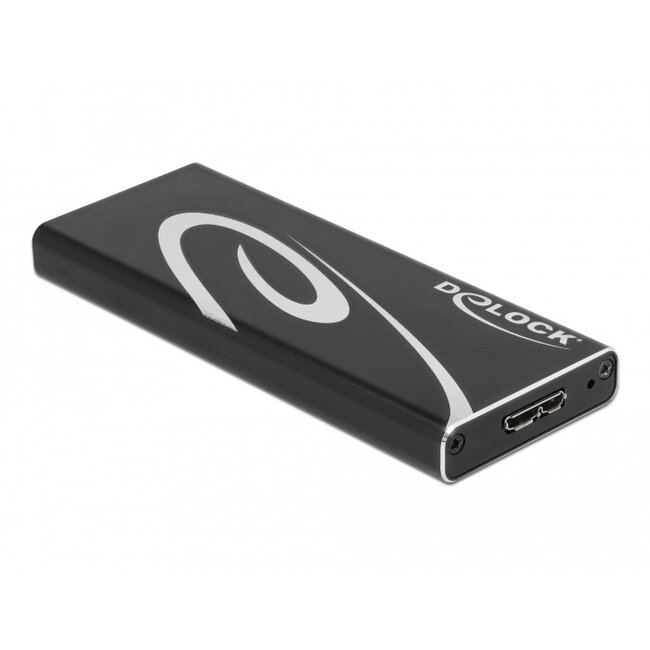

The aluminium enclosure by Delock enables the installation of a M.2 SSD in 2280, 2260, 2242 and 2230 format, which can be connected via USB to the PC or laptop.
Specification• Connectors:
external: 1 x SuperSpeed USB 10 Gbps (USB 3.2 Gen 2) Type Micro-B female
internal: 1 x 67 pin M.2 key B slot
• Chipset: Asmedia ASM235CM
• Supports M.2 modules in format 2280, 2260, 2242 and 2230 with key B or
key B+M based on SATA
• Maximum height of the components on the module: 1.35 mm, application of double-
sided assembled modules supported
• Data transfer rate up to 6 Gbps
• LED indicator for power and access
• Dimensions (LxWxH): ca. 98 x 39 x 9 mm
• Hot Plug, Plug & Play
• Chrome OS
• Linux Kernel 5.8 or above
• Mac OS 11.2.3 or above
• Windows 8.1/8.1-64/10/10-64
• PC or laptop with a free USB Type-A port
Package content
• External enclosure M.2

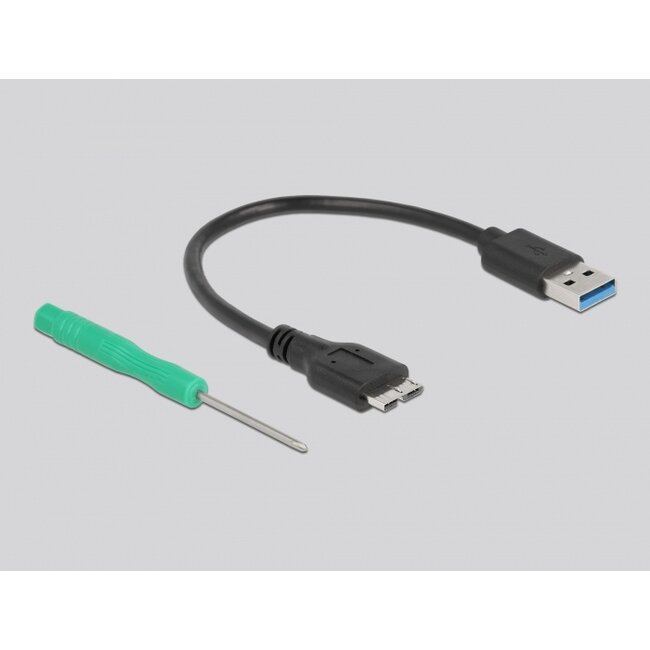

• Screwdriver, screws
• Cable USB 3.2 Type-A to Type Micro-B, length ca. 20 cm
• User manual
