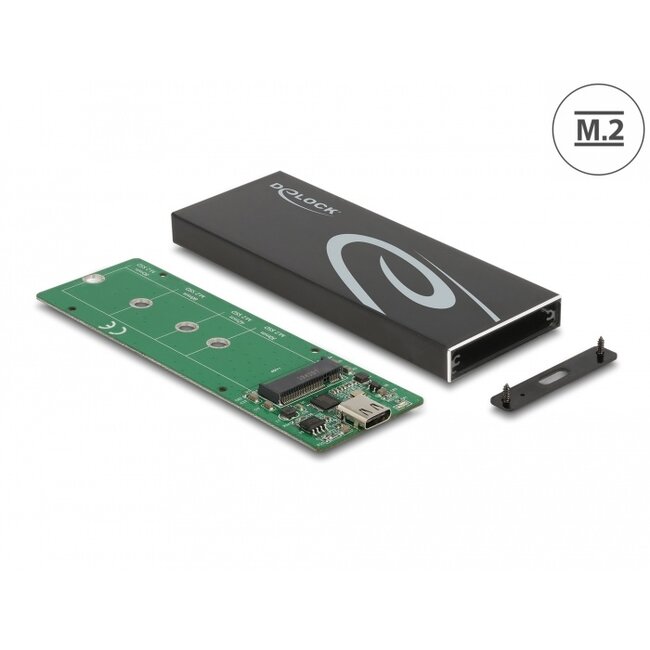

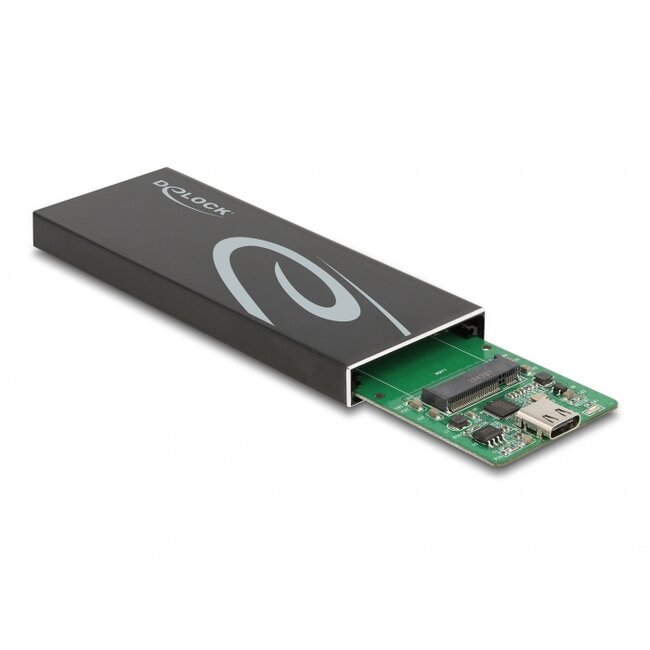

Description The aluminium enclosure by Delock enables the installation of a M.2 SSD in 2280, 2260, 2242 and 2230 format, which can be connected via USB to the PC or laptop. The robust metal housing ensures an optimum temperature of the memory.
Specification • Connectors:
external: 1 x USB 10 Gbps USB Type-C™ female
internal: 1 x M.2 key B slot
• Chipset: Asmedia ASM235CM
• Supports M.2 modules in format 2280, 2260, 2242 and 2230 with key B or key B+M
based on SATA
• Maximum height of the components on the module: 1.5 mm, application of double-
sided assembled modules supported
• Bootable
• Data transfer rate up to 6 Gbps
• LED indicator for power and access
• Dimensions (LxWxH): ca. 110 x 40 x 9.5 mm
• Hot Plug, Plug & Play
System requirements • Android 9.0 or above
• Chrome OS 83.0 or above
• iPad Pro (2018)
• Linux Kernel 5.4 or above
• Mac OS 10.15.6 or above
• Surface Pro 7
• Windows 8.1/8.1-64/10/10-64/11
• PC or laptop with a free USB Type-C™ port
• PC or laptop with a free Thunderbolt™ 3 port
Package content
• External enclosure M.2
• Screwdriver
• Mounting material
• Cable USB-C™ male to USB-C™ male, length ca. 45 cm
• User manual
