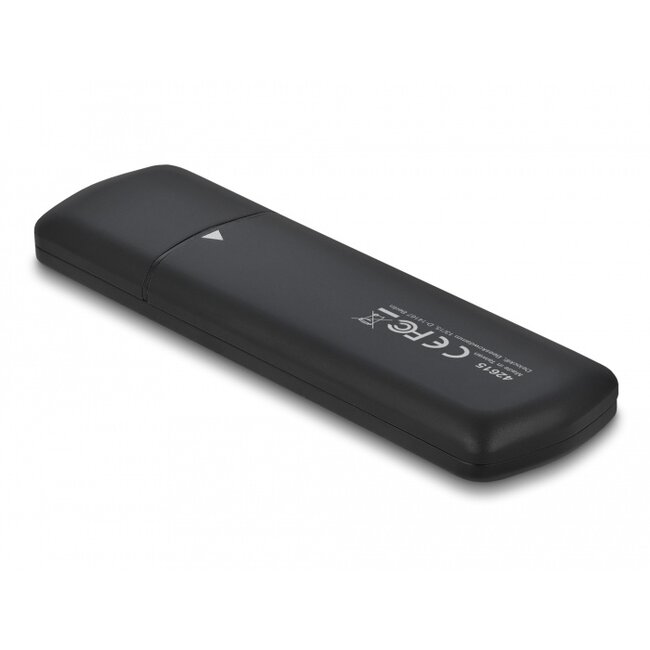

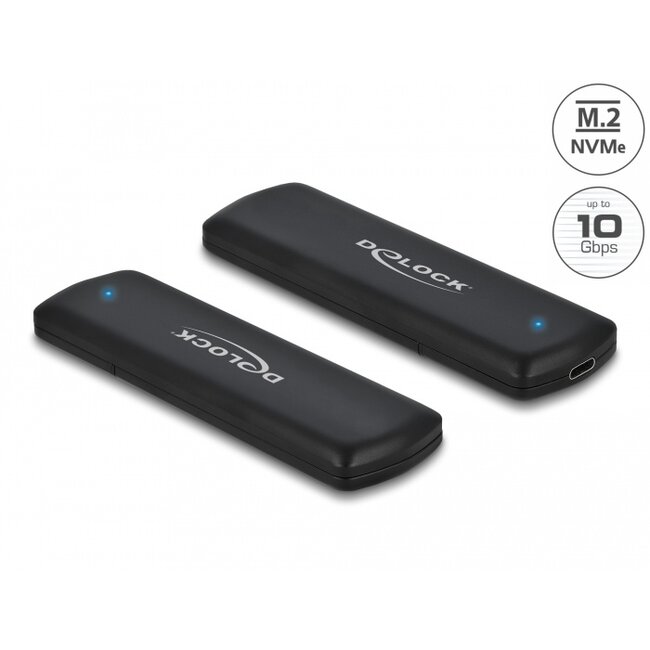

This enclosure by Delock enables the installation of an M.2 PCIe NVMe SSD in 2280, 2260, 2242 and 2230 format, it can be connected via USB to the PC or laptop. The robust metal housing ensures an optimum temperature of the memory.
SSD installation without tools

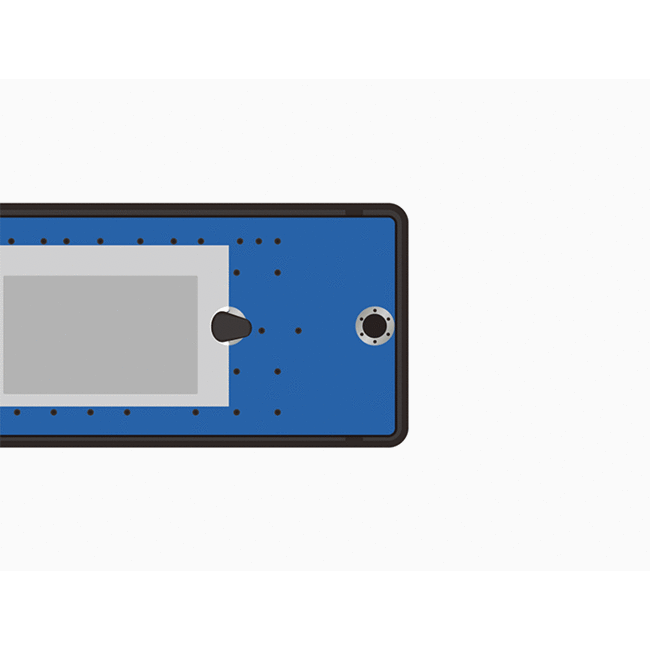

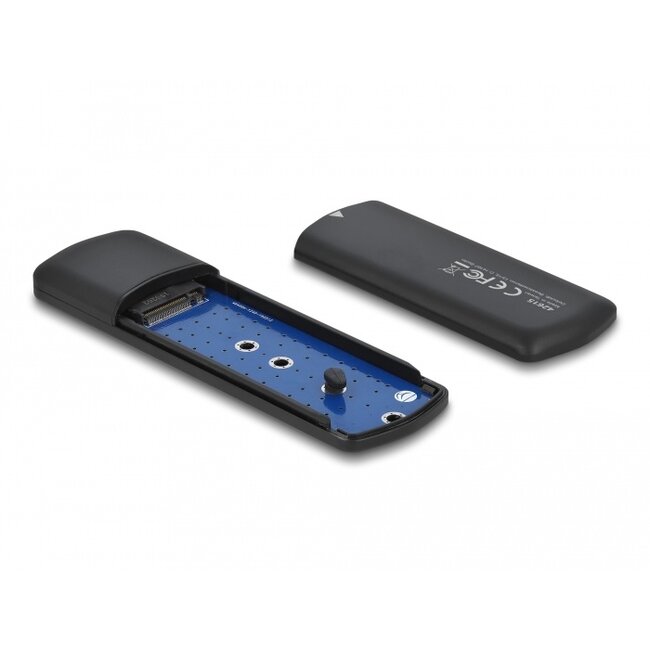

The special feature of this enclosure is that no tools are required to install the M.2 SSD. The lid can be pushed backwards by a little pressure, the SSD will be attached to the PCB with a rubber nipple and then the lid is reattached until it locks.
Note
There is no support for SATA M.2 SSD.
• Connectors:
external: 1 x SuperSpeed USB 10 Gbps (USB 3.2 Gen 2) USB Type-C™ female
internal: 1 x 67 pin M.2 key M slot
• Chipset: JMicron JMS583
• Supports M.2 modules in format 2280, 2260, 2242 and 2230 with key M
or key B+M based on PCIe (NVMe)
• Maximum height of the components on the module: 1.5 mm,
application of double-sided assembled modules supported
• Supports NVM Express (NVMe)
• Bootable
• Data transfer rate up to 10 Gbps
• LED indicator for power and access
• Metal housing
• Dimensions (LxWxH): ca. 122 x 36 x 12 mm
• Hot Plug, Plug & Play
• Android 9.0 or above
• Chrome OS 72.0 or above
• Linux Kernel 4.6.4 or above
• Mac OS 10.14.5 or above
• Windows 7/7-64/8.1/8.1-64/10/10-64/11
• PC or laptop with a free USB Type-C™ port
Package content
• External enclosure M.2

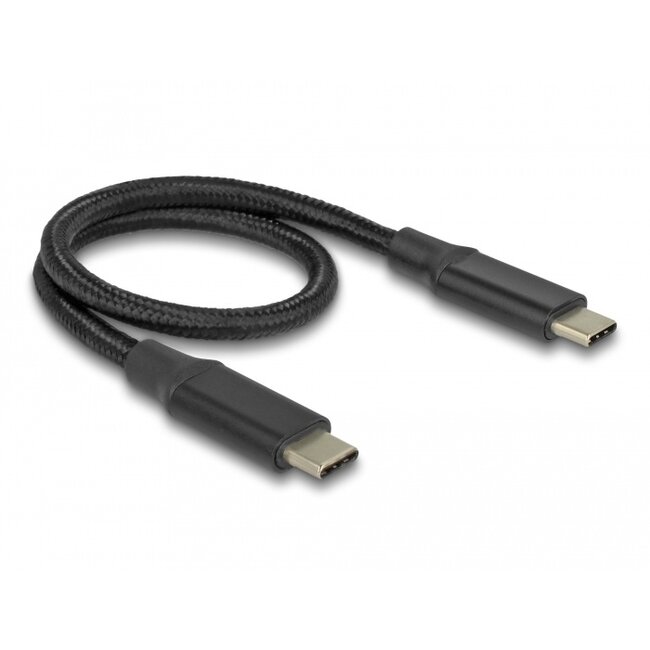

• Cable USB-C™ male to USB-C™ male, length ca. 30 cm
• User manual
