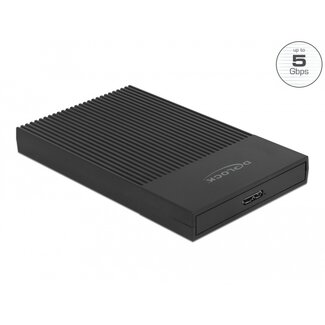

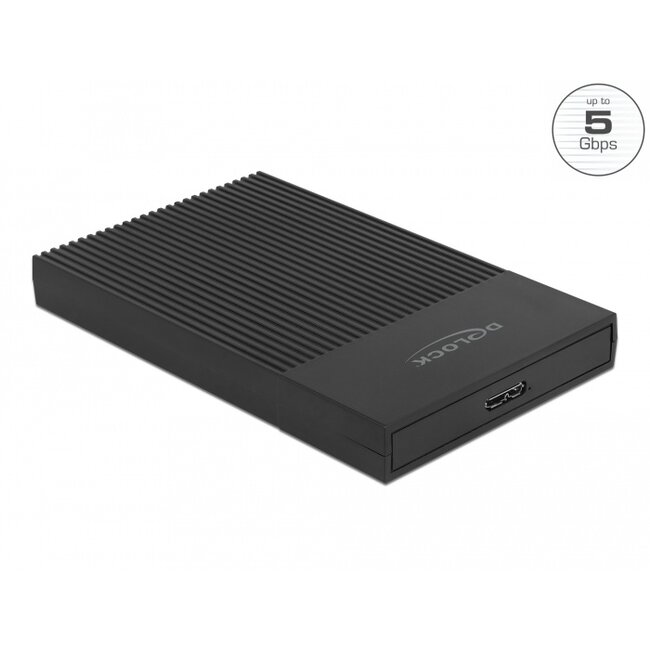

This plastic enclosure by Delock can be used for the installation of a 2.5″ SATA hard drive or SSD. Despite the slim design, hard disks up to a height of 9.5 mm can be installed. The included USB Type Micro-B to USB Type-A cable allows the connection to a free USB Type-A female port.
HDD / SSD installation without tools

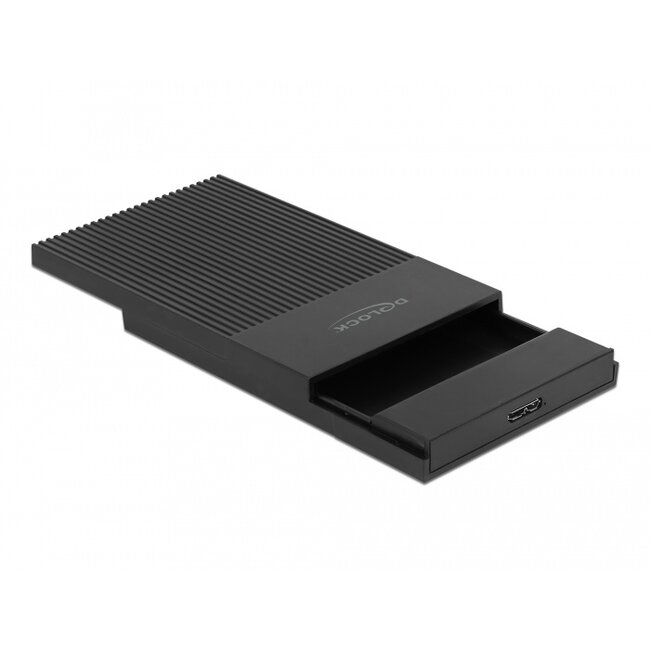

The special feature of this enclosure is that no tools are required to install the HDD. The lid can be pushed backwards by a little pressure, the HDD will be attached to the SATA port and then the lid is reattached until it locks.
• Connectors:
external: 1 x SuperSpeed USB (USB 3.2 Gen 1) Type Micro-B female
internal: 1 x SATA 6 Gb/s 22 pin receptacle
• Chipset: Asmedia ASM225CM
• Suitable for 2.5″ SATA HDD / SSD:
HDD height up to 9.5 mm
SATA HDD / SSD up to 6 Gb/s
HDD / SSD up to 4 TB
supports 5 V HDD / SSD
• Data transfer rate up to 5 Gb/s
• LED indicator for power and access
• Supports S.M.A.R.T.
• Supports TRIM
• Hot Plug, Plug & Play
• Dimensions (LxWxH): ca. 128 x 79 x 15 mm
• Chrome OS 90.0 or above
• Linux Kernel 5.8 or above
• Mac OS 11.4 or above
• Windows 8.1/8.1-64/10/10-64
• PC or laptop with a free USB Type-A port
Package content
• 2.5″ external enclosure

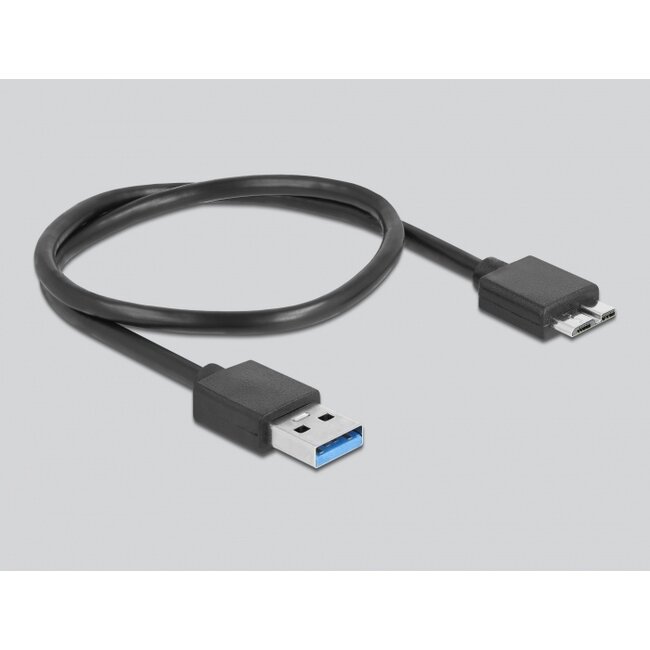

• Cable USB 3.0 Type-A to Type Micro-B, length ca. 50 cm
• User manual
