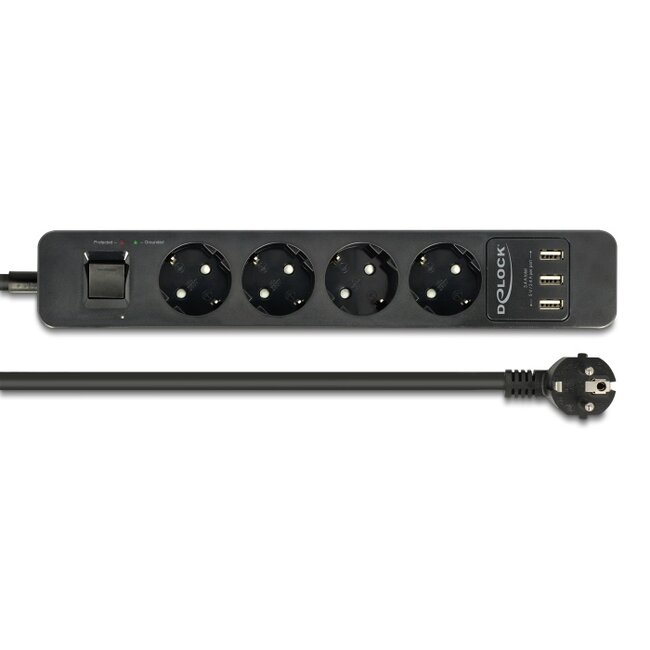

The 4-way extension socket by Delock with USB charging function is suitable for convenient connection of various devices directly on the desk. The built-in overvoltage protection function keeps devices safe during thunderstorms and power failures.

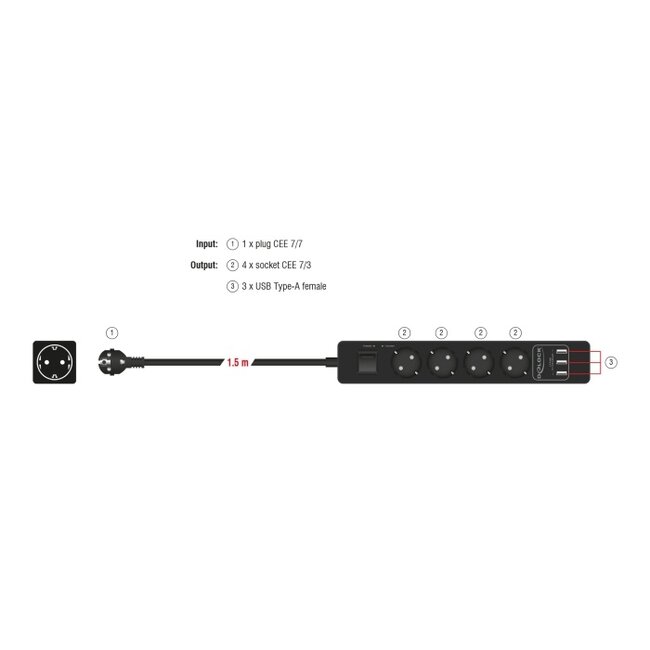

Specification• Connectors:
Input:
1 x plug CEE 7/7
Output:
4 x socket CEE 7/3
3 x USB Type-A female
• Rated current: 16.0 A / 250 V~
• Rated power: 4000.0 W
• Surge protection SPD Type 3: Uoc = 6 kV~, Up = 1.3 kV~ / 1700 J
• Sockets in a 45° arrangement, childproof lock
• 2-pole safety switch, with overload protection
• Wall-mount option
• LEDs for status monitoring
• USB Charger:
Input: AC 250 V / 50 Hz / 0.5 A
Output: 5.0 V / 2.4 A per port, max. 3.4 A combined
Output power: max. 17.0 W total
Average active efficiency 82.82 %
Efficiency at low load (10 %) 75.39 %
No-load power consumption 0.090 W
Over current protection, over heating protection, short circuit protection
• Colour: black
• Cable length: ca. 1.5 m
• Dimensions (LxWxH): ca. 36.1 x 5.6 x 4.2 cm
• Extension socket
• User manual
