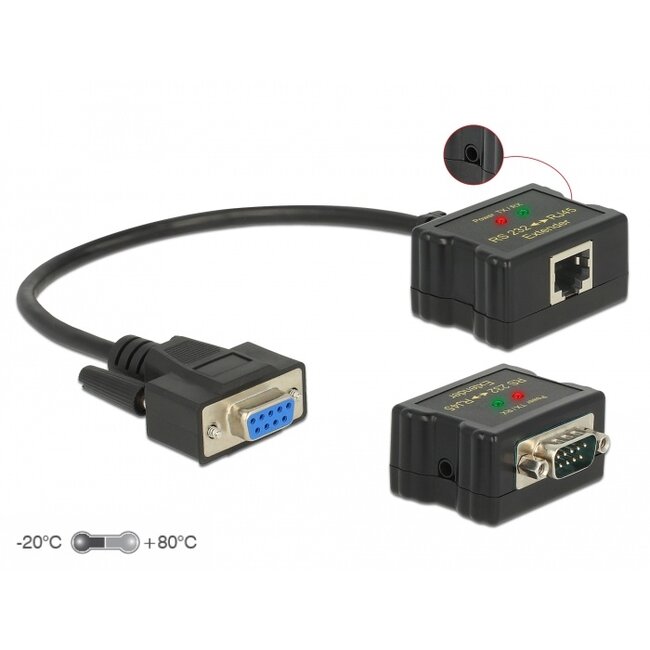

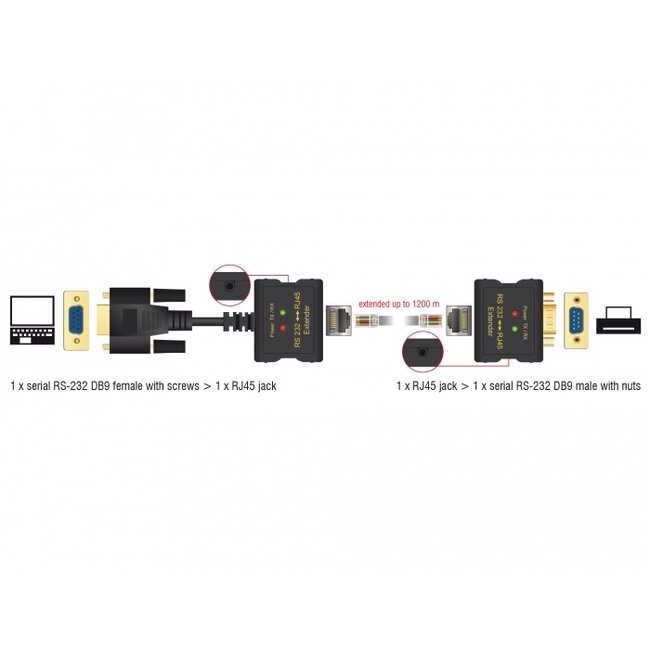

• Connectors:
1 x serial RS-232 DB9 female with screws >
1 x RJ45 jack
1 x serial RS-232 DB9 male with nuts >
1 x RJ45 jack
• Plug & Play
• Screw type: #4-40 UNC
• ±15 kV ESD protection for all serial signals
• Data transfer rate up to 460.8 Kbps (300 m, Cat.5)
• Data transfer rate up to 115.2 Kbps (1200 m, Cat.5)

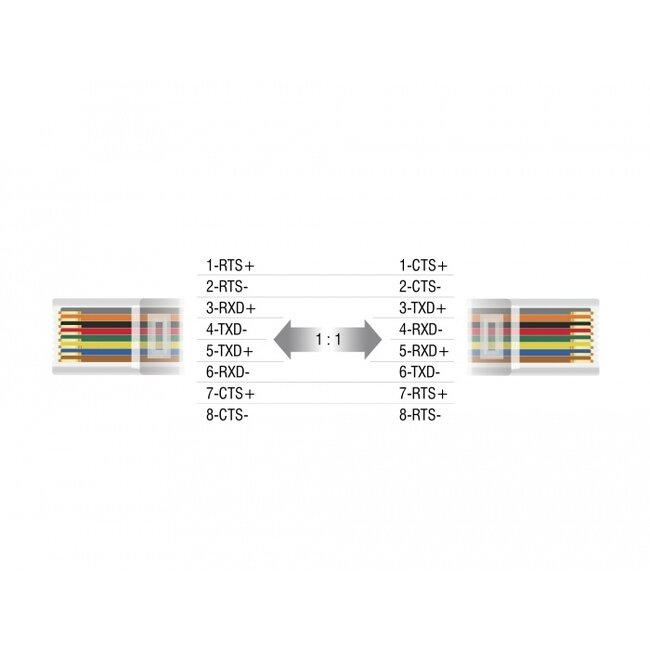

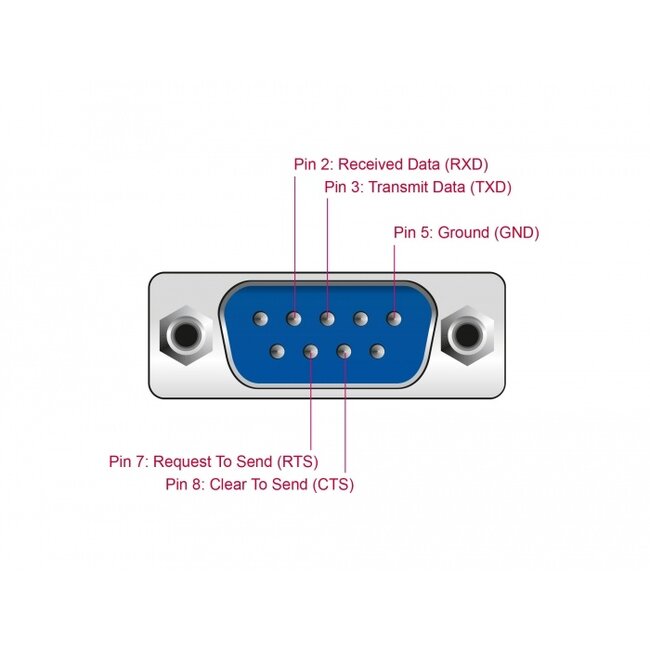

• Signals: RXD, TXD, CTS, RTS
• Flow control: none, Xon / Xoff, RTS / CTS
• Data transmission: bidirectional and differential
• LED indicator for power and activity
• Housing material: plastic
• Housing colour: black
• Cable length incl. connectors: ca. 24 cm
• Operating temperature: -20 °C ~ 80 °C
• Relative humidity: 20 - 60 %
• Dimensions (LxWxH): ca. 46 x 35 x 24 mm

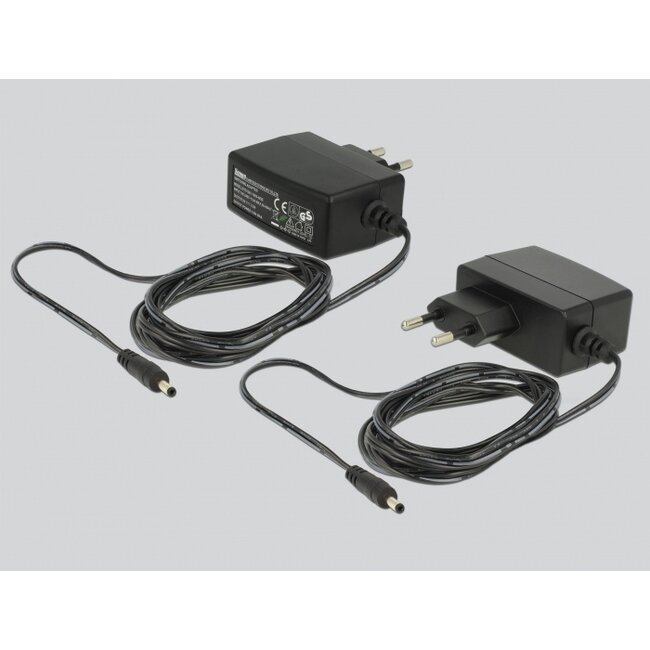

Power supply specification
• Wall power supply
• Input: AC 100 ~ 240 V / 50 ~ 60 Hz / 0.5 A
• Output: 5 V / 2 A
• Cable length incl. connectors: ca. 1.4 m
• Ground outside, plus inside
• Dimensions:
inside: ø ca. 1.35 mm
outside: ø ca. 3.5 mm
length: ca. 9.5 mm
• Devices with a free RS-232 interface
Package content
• Converter RS-232 DB9 female with screws > RJ45 female
• Converter RS-232 DB9 male with nuts > RJ45 female
• 2 x power supply
