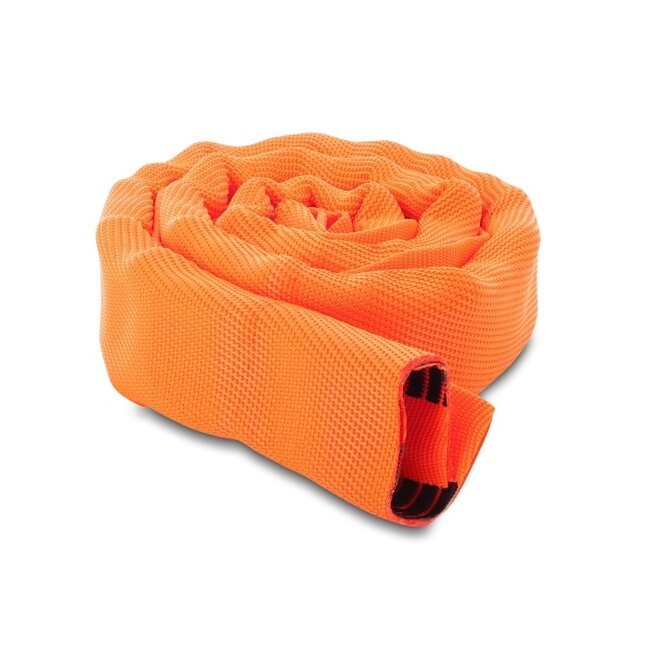

This flat, double-layer protective sleeve by Delock reliably protects cables or high-voltage copper busbars from abrasion and damage. The double layer makes it particularly robust, yet it remains flexible and easy to install. With its compact dimensions of 40 x 16 mm, the cable can be laid in a space saving manner, while the bright orange colour ensures particularly good visibility.
Wear warning

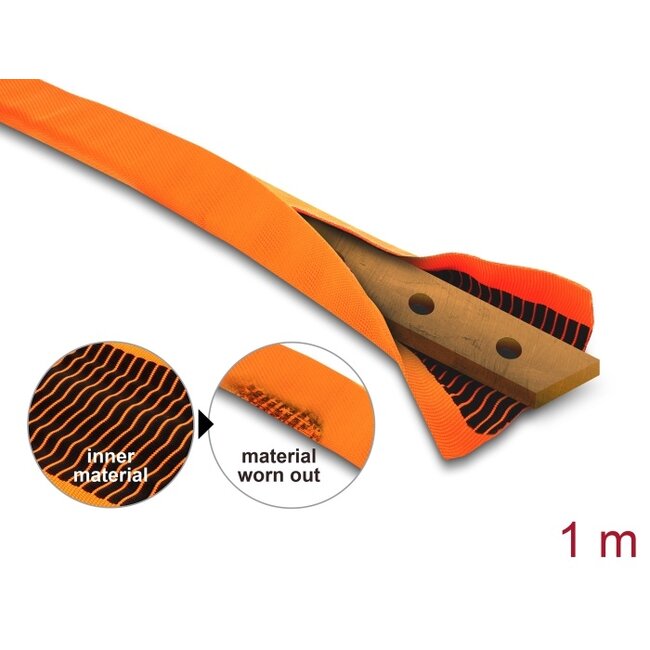

Due to the integrated wear indicator, it is possible to detect at an early stage when the hose is under heavy use and should be replaced. This ensures that the cables remain safe and optimally protected at all times. As soon as the orange layer becomes visible, the sleeve and cable should be checked and replaced if necessary to prevent damage to the wiring.
• Length: ca. 1 m
• Cable size: ca. 40 x 60 mm
• Protects cables and high-voltage busbars
• Double layer
• With black wear warning indicator
• Heat resistance: according to SAE J2192, 150 °C / 3000 h without cracks or embrittlement
• Impact resistance: LV312-3, ≥ grade E, 50 J
• Abrasion resistance: ISO 6722-1 > 500,000 cycles, SAE ARP1536B > 1,000,000 cycles
• Flammability class: UL 94 V0
• Moisture and temperature resistance: LV312, 85 °C / 85 % RH, 1000 hours without
embrittlement
• Operating temperature: -40 °C ~ 150 °C
• Material: polyester
• Colour: orange
• Protection sleeve
