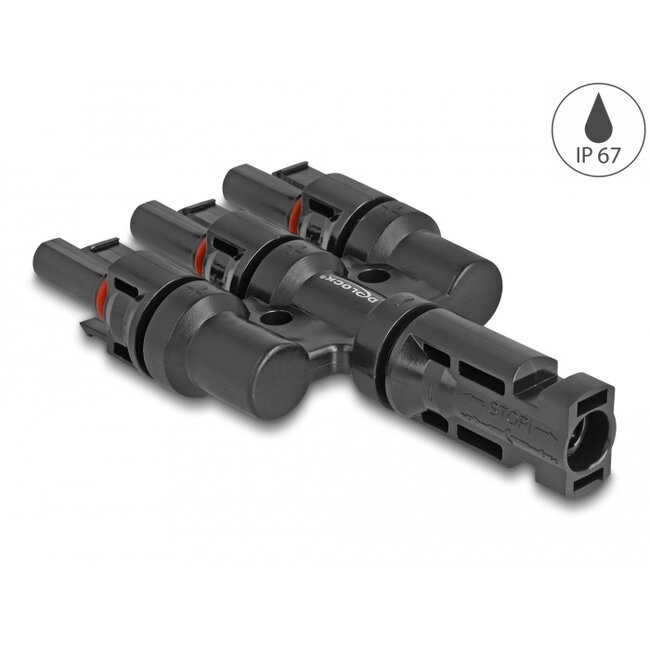

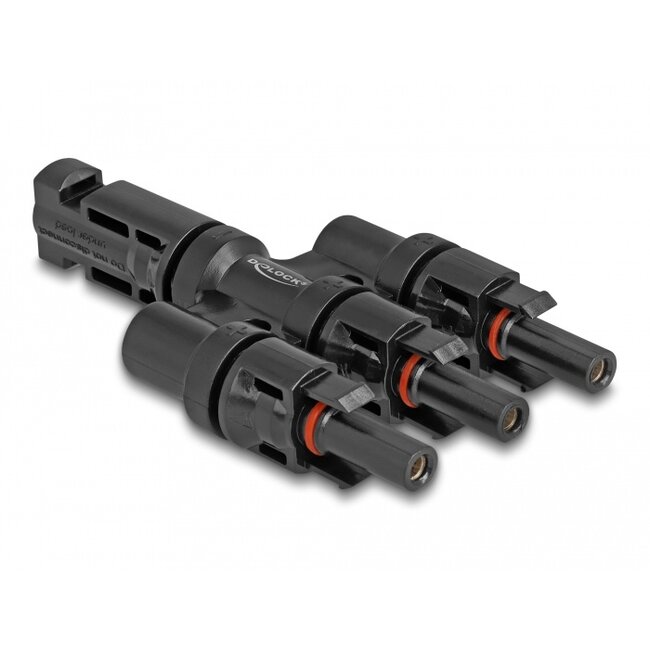

This DL4 solar connectors by Delock can be used to transmit power obtained from a photovoltaic system.
DL4 connectors
The DL4 plugs and sockets have a snap-in function, which avoids unwanted interruptions and ensures a secure connection. The connection can be released again with the appropriate tool.
IP67 dust and waterproof
The DL4 solar connector is protected from dirt and moisture.
• Connectors:
1 x DL4 male
3 x DL4 female
• Cable cross section: ca. 2.5, 4, 6 mm²
• Compatible with MC4, TS4, QC4
• Operating temperature: -40 °C ~ 85 °C
• Protection class: IP67
• Voltage: max. 1000 V
• Colour: black
• Dimensions (LxWxH): ca. 10.4 x 3.9 x 1.8 cm
• Free DL4 ports
Package content
• DL4 solar connector
