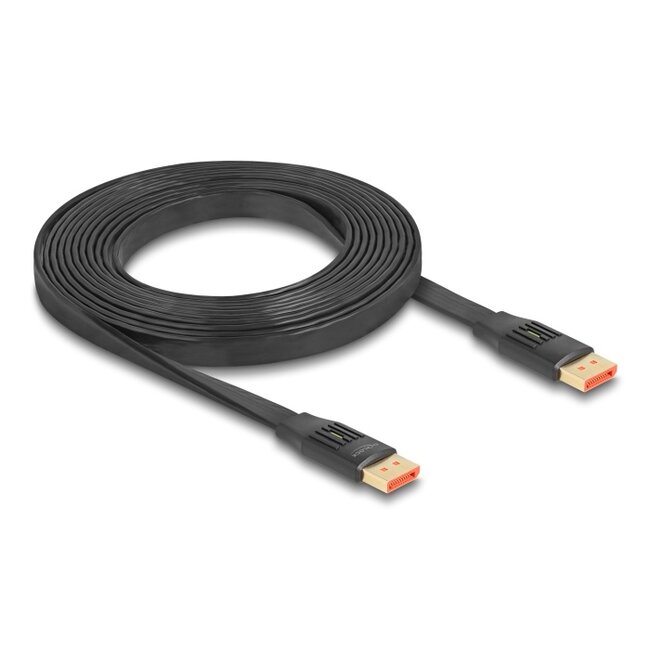

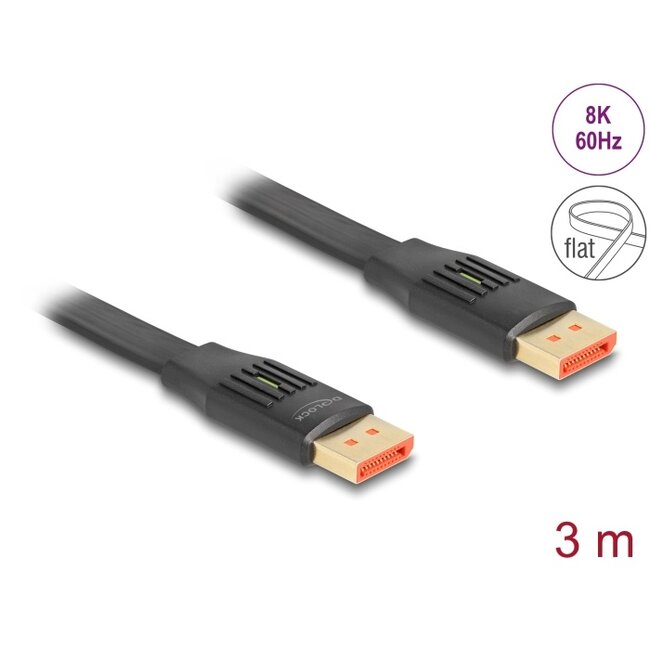

This cable by Delock is used to connect devices with a DisplayPort interface, such as monitors or TVs, to a PC or a laptop.
8K resolution and HDR support
By supporting a maximum bandwidth of 32.4 Gbps, content up to 8K Ultra HD (7680 x 4320 @ 60 Hz) resolution can be displayed.
Due to the HDR support colours are realistically displayed with impressive depth, brightness and contrast are optimally reproduced.
• Connectors:
2 x DisplayPort male
• DisplayPort 1.4 specification
• Downwards compatible to DisplayPort 1.3, 1.2 and 1.1
• Pin 20 not connected
• Cable gauge:
30 AWG data line
28 AWG power line
• Cable size: ca. 2.3 x 13 mm
• Copper conductor
• Contacts gold-plated
• Connector finishing: gold-plated
• Transmission of audio and video signals
• Data transfer rate up to 32.4 Gbps
• Resolution up to:
Display with DSC support:
7680 x 4320 @ 60 Hz
3840 x 2160 @ 240 Hz
Display without DSC support:
7680 x 4320 @ 30 Hz
3840 x 2160 @ 120 Hz
(depending on the system and the connected hardware)
• Supports Display Stream Compression 1.2 (DSC)
• Supports HDR10
• Supports HDCP 1.4 and 2.3
• Supports HBR3 (8.1 Gbps) data rate
• Up to 32 audio channels for speakers
• Up to 1536 kHz audio sampling rate
• Supports colour sampling in 4:4:4, 4:2:2 and 4:2:0 format
• Colour: black
• Length incl. connectors: ca. 3 m
• DisplayPort cable
