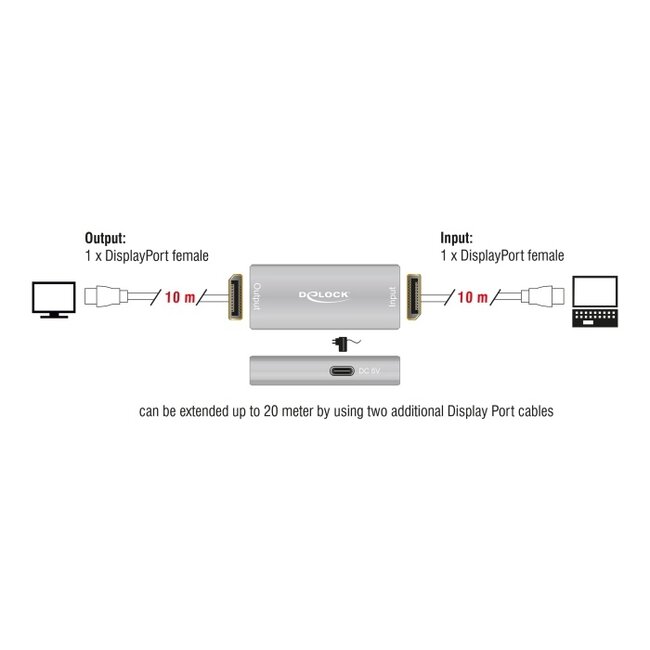

Description This DisplayPort repeater by Delock can be used for signal enhancement of a DisplayPort connection up to 20 m. An up to 10 m long cable can be connected from a PC or laptop to the input port of the repeater, and on the other side an up to 10 m long cable to the output port of the repeater, which is then connected to a display or TV.
Specification • Connectors:
Input:
1 x DisplayPort female
1 x USB Type-C™ female (5 V power supply)
Output:
1 x DisplayPort female
• DisplayPort 1.4 specification
• Downwards compatible to DisplayPort 1.3, 1.2 and 1.1
• Resolution up to:
7680 x 4320 @ 30 Hz
3840 x 2160 @ 144 Hz
(depending on the system and the connected hardware)
• Supports HBR3 (8.1 Gbps) data rate
• Transmission of audio and video signals
• Data transfer rate up to 32.4 Gbps
• Robust metal housing
• Colour: grey
• Dimensions (LxWxH): ca. 58 x 25 x 11 mm
System requirements • A free DisplayPort port on your system and display
• DisplayPort connection cables
• Power source with a free USB Type-A female port
Package content
• DisplayPort repeater

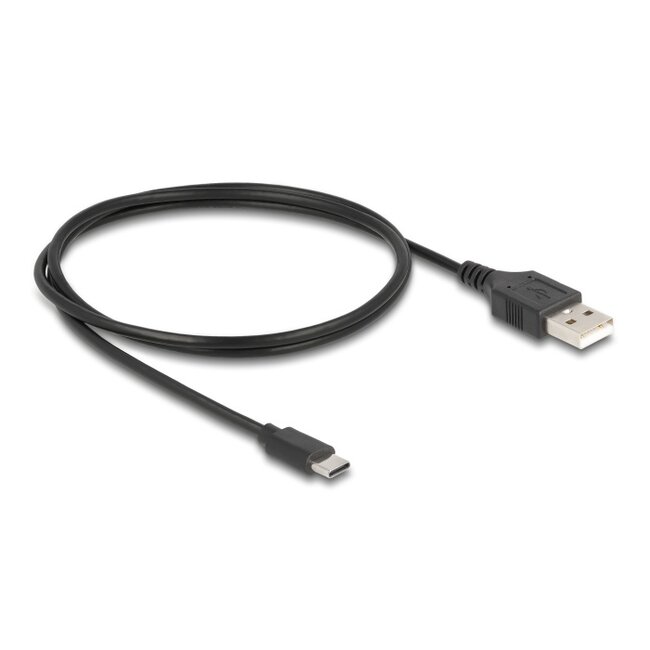

• USB power cable, length: ca. 1 m
• User manual
