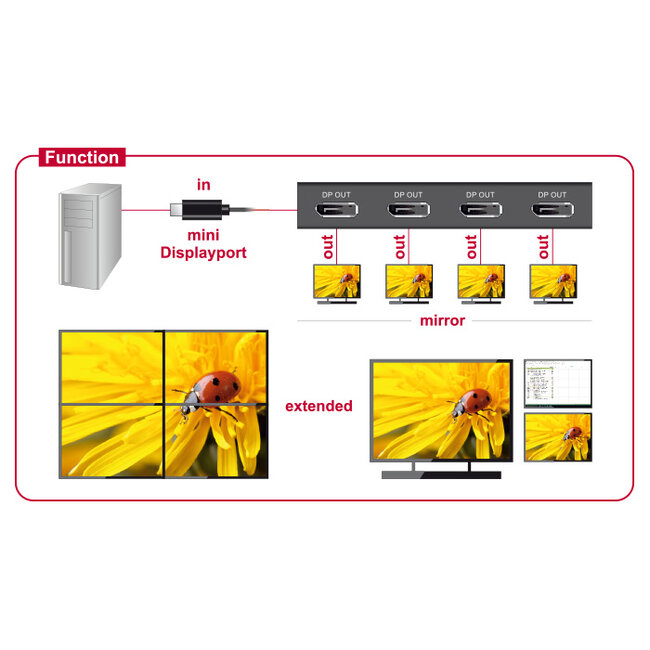

This splitter by Delock receives a DisplayPort signal from a PC or laptop and splits it to four connected displays. Thereby one DisplayPort connection can be used to operate four DisplayPort monitors. The outputs are dual-mode capable (DP++), so that HDMI or DVI monitors can be connected with suitable adapters.
Specification• Connectors:
Input:
1 x mini DisplayPort 20 pin male
1 x 5 V DC jack
Output:
4 x DisplayPort 20 pin female
• Chipset: STDP4320
• DisplayPort 1.2a specification
• Active converter, Single / Multi Stream Transport Hub (SST / MST)
• Maximum resolution (depending on the system and the connected hardware):
DisplayPort 1.1 or 1.2 Single Stream Transport (SST):
up to 1920 x 1080 @ 60 Hz (mirrored)
DisplayPort 1.2 Multi Stream Transport (MST):
up to 2560 x 1440 @ 60 Hz or 3840 x 2160 @ 30 Hz (mirrored or extended)
max. 4x 1920 x 1080 @ 60 Hz
• DisplayPort output supports Dual Mode DP++
• Supports audio and video signals
• Supports Eyefinity / Single Large Surface (SLS)
• Audio input formats: 7.1 channel up to 192 kHz sample rate
• Metal housing

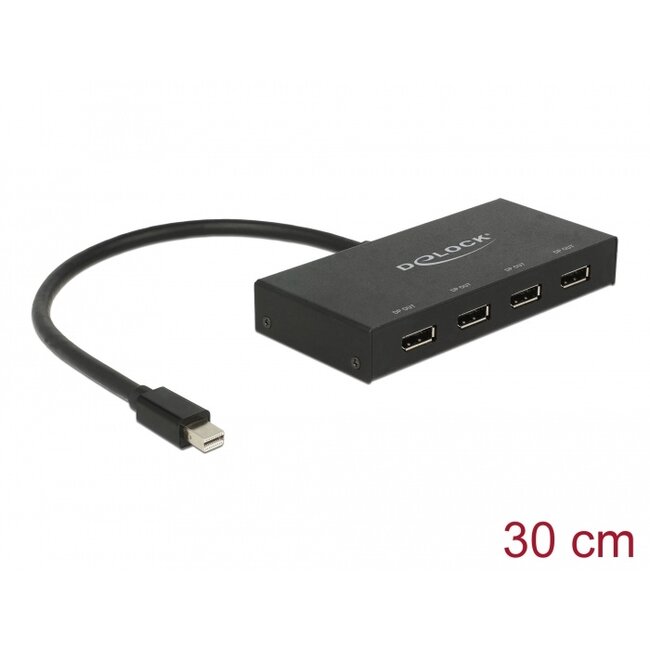

• Cable length without connectors: ca. 30 cm
• Colour: black
• Dimensions (LxWxH): ca. 143 x 67 x 23 mm
• OS independent, no driver installation necessary
Power supply specification
• Wall power supply
• Input: AC 100 ~ 240 V / 50 ~ 60 Hz / 0.4 A
• Output: 5 V / 2 A
• Ground outside, plus inside
• Dimensions:
inside: ø ca. 2.1 mm
outside: ø ca. 5.5 mm
length: ca. 9 mm
• One free mini DisplayPort female
Package content
• DisplayPort Splitter
• External power supply
• User manual
