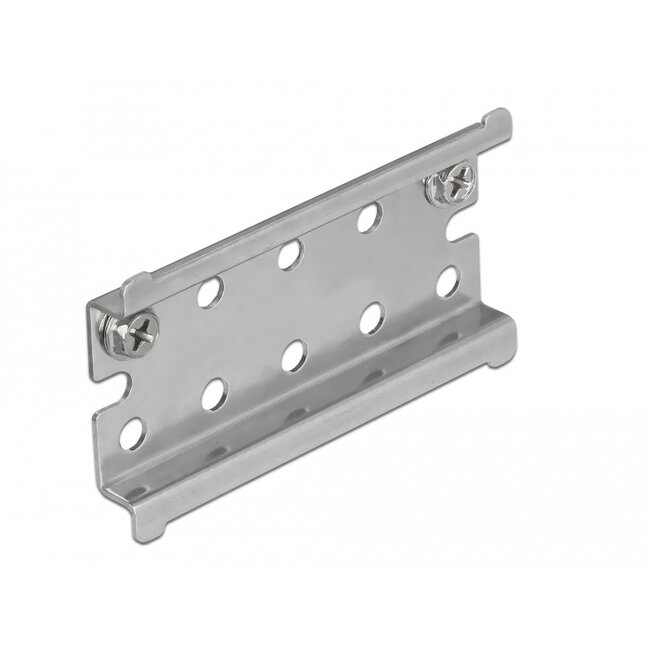

This DIN rail by Delock is suitable for the mounting onto a wall.
To be used for different devices

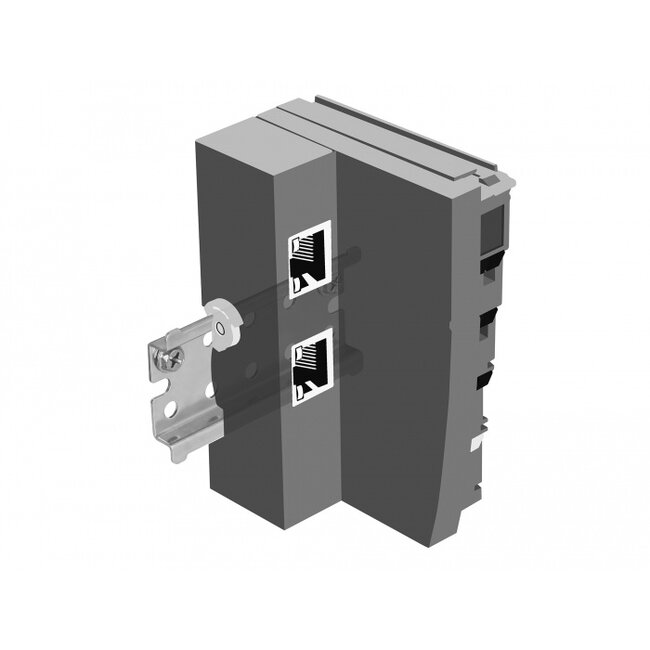

The DIN rail can be screwed onto the wall by the mounting holes and can be used as a mounting system e.g. for converters or terminals.
The end stop serves to secure the products which are fastened to the DIN rail. Thus, they can not be pulled out at the side.
• 35 mm DIN rail
• 10 x mounting holes
• Mounting hole diameter: 4.5 mm
• Pitch of screw hole: ca. 14 mm
• Material: stainless steel

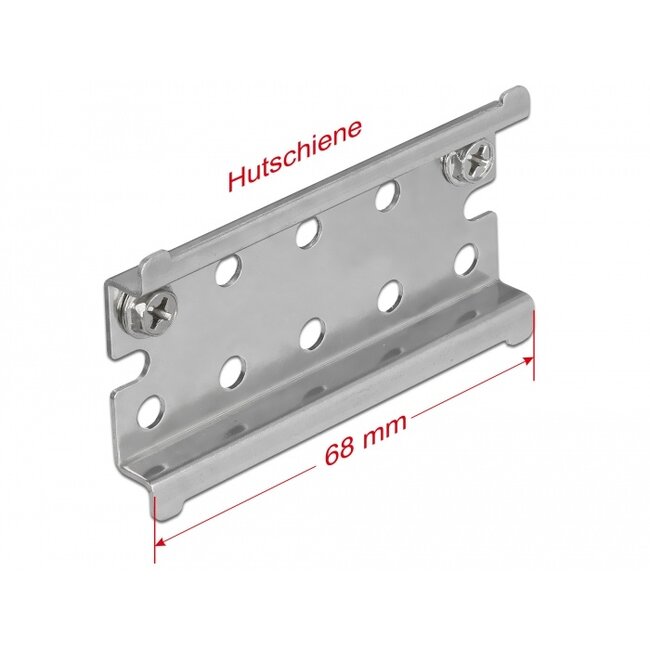

• Dimensions (LxWxH): ca. 68.0 x 38.0 x 7.5 mm
• 1 x DIN rail

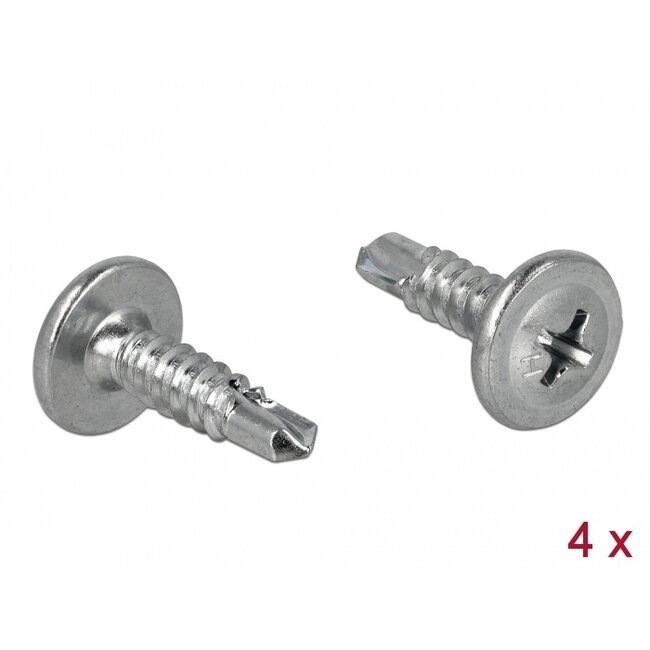

• 4 x screw
