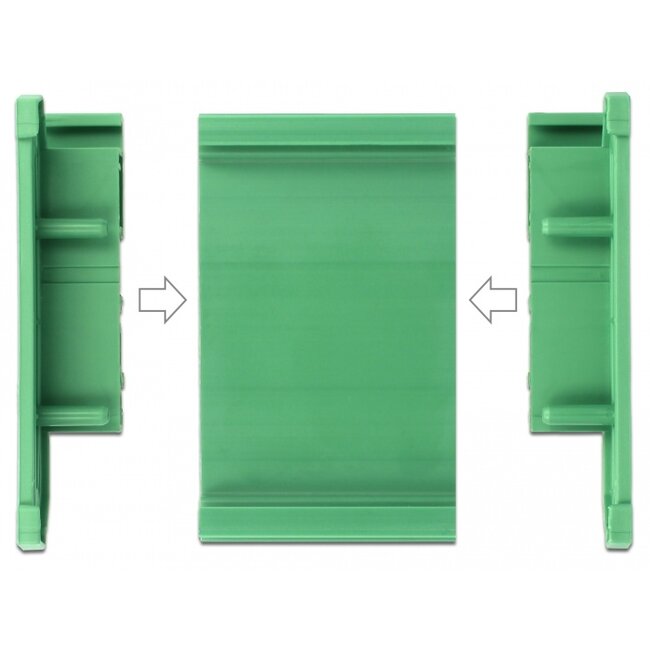

This DIN rail side panel by Delock can be placed on the ends of the board holder (Delock item number 65984-65989 and 66086-66087).
Suitable for Board Holder
This DIN rail side panel can be mounted on a board holder with a width of 72 mm.
The delivery includes 2 left and 2 right side panels.
DIN Rail Mounting
Together this can be fixed on a DIN rail with width of 15 mm or 35 mm.

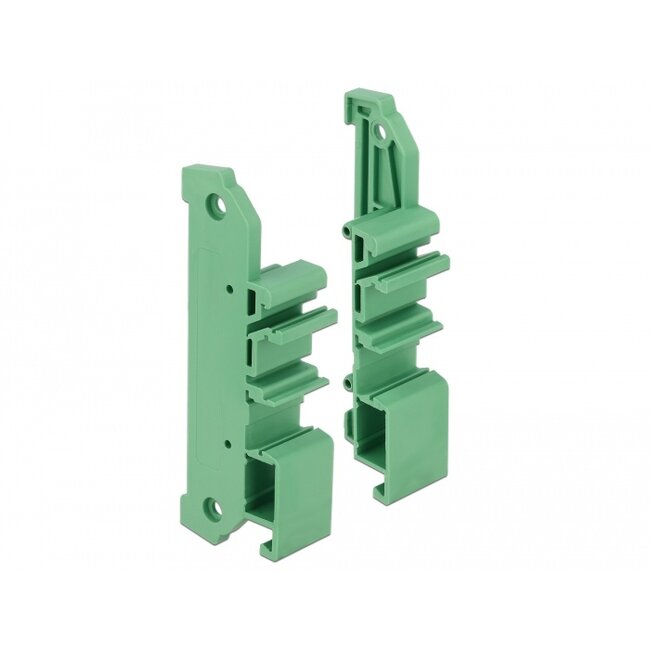

DIN Rail Side Panel for Board Holder
Note
Attachable to a board holder of Delock item number 65984-65989 and 66086-66087.

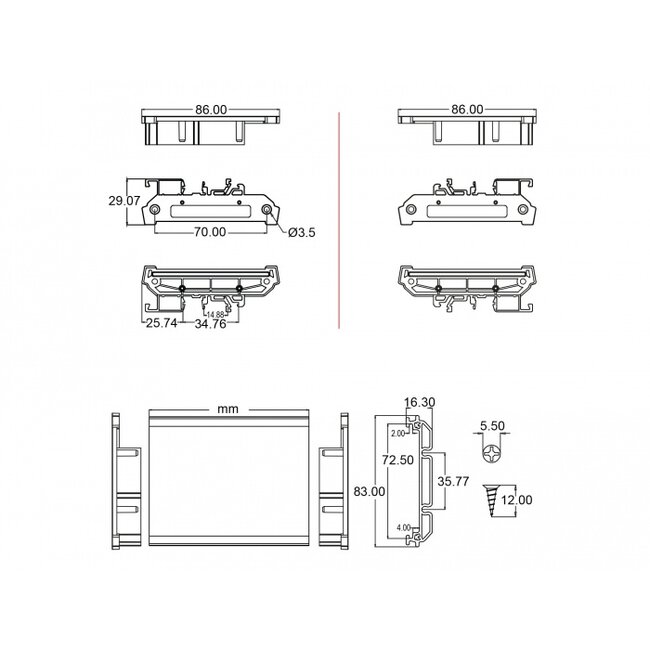

• DIN rail mounting: 15 mm and 35 mm
• 2 x mounting holes
• Mounting hole diameter: 3.5 mm
• Pitch of screw hole: ca. 70 mm
• Environmental temperature: -10 °C ~ 70 °C
• Material: plastic
• Colour: green
• Dimensions (LxWxH): ca. 86.00 x 29.07 x 17.60 mm
• Delock board holder
• 15 mm or 35 mm DIN rail
Package content

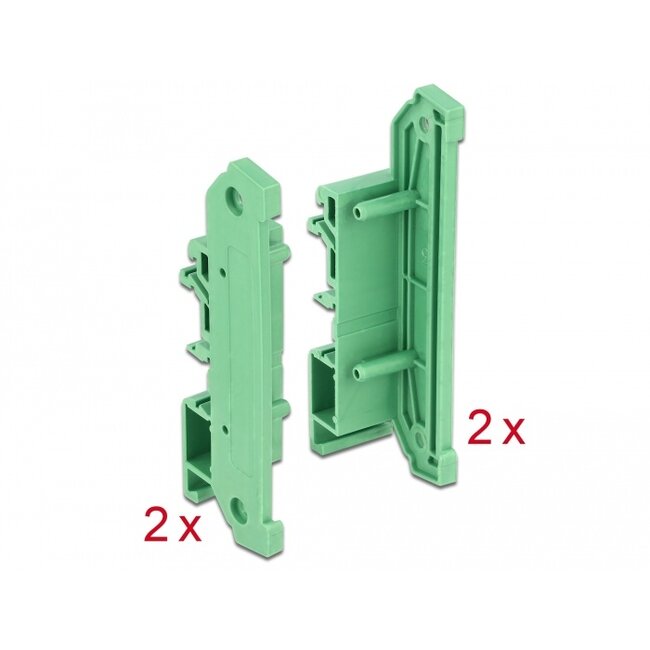

• 4 x DIN rail side panel
• 10 x screw
