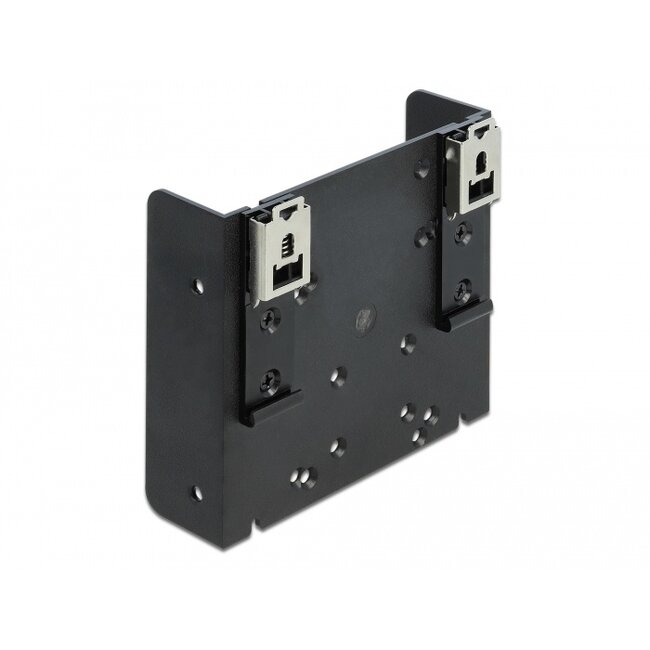

This mounting kit by Delock allows easy mounting of a micro controller on a 35 mm DIN rail. The two pre-assembled clamps ensure a firm hold on the DIN rail.
Flexible use

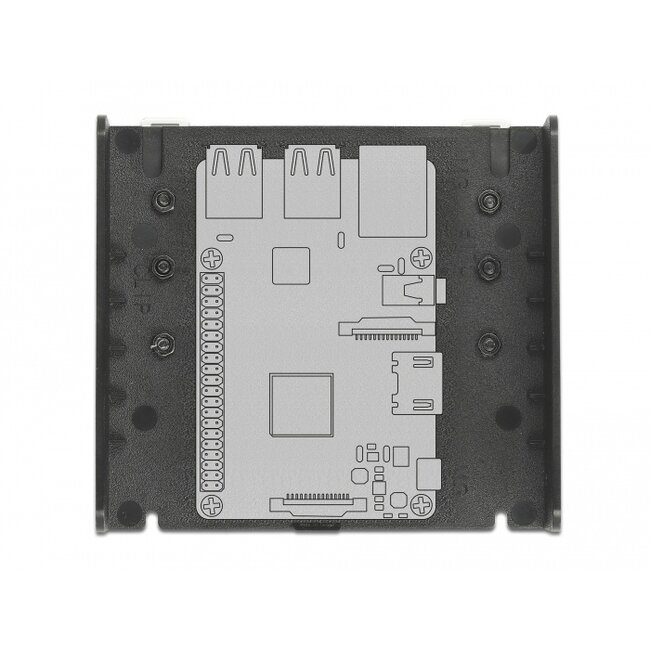

The prefabricated holes offer the mounting possibility for the most common micro controllers. Different models of Raspberry Pi, Asus Tinkerboard, Arduino and others can be mounted on it.
Suitable for 3.5″ devices

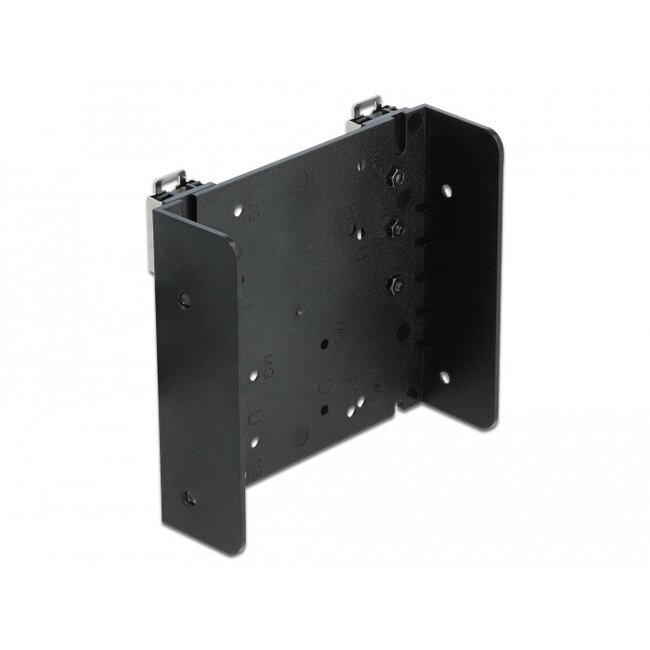

In addition to the micro controller, devices and panels in 3.5″ format can also be attached to the mounting kit. This allows 3.5″ built-in USB hubs or similar to be mounted to a DIN rail.
• Prefabricated holes for:
Raspberry: Pi A+, Pi B+, Pi 2 B, Pi 3 B, Pi 3B+, Pi 3 A+
ASUS Tinkerboard
Arduino UNO, Arduino Mega
• Suitable for devices of 3.5″ format

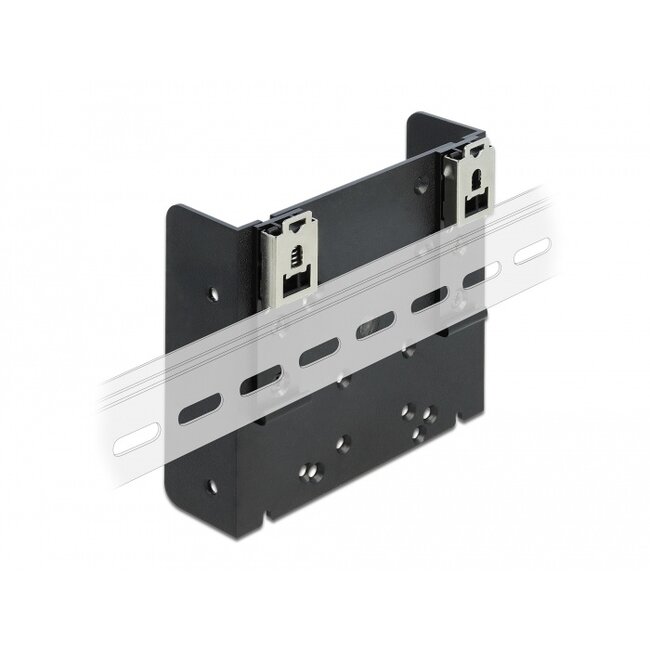

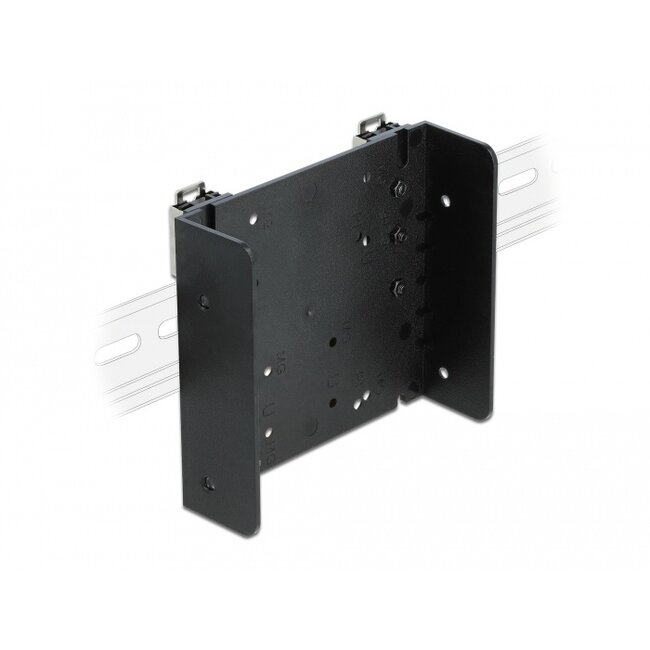

• Mounting for 35 mm DIN rail
• Colour: black
• Material: PC + ABS
• Dimensions (LxWxH): ca. 105 x 95 x 43 mm
• 35 mm DIN rail
Package content
• DIN rail mounting kit

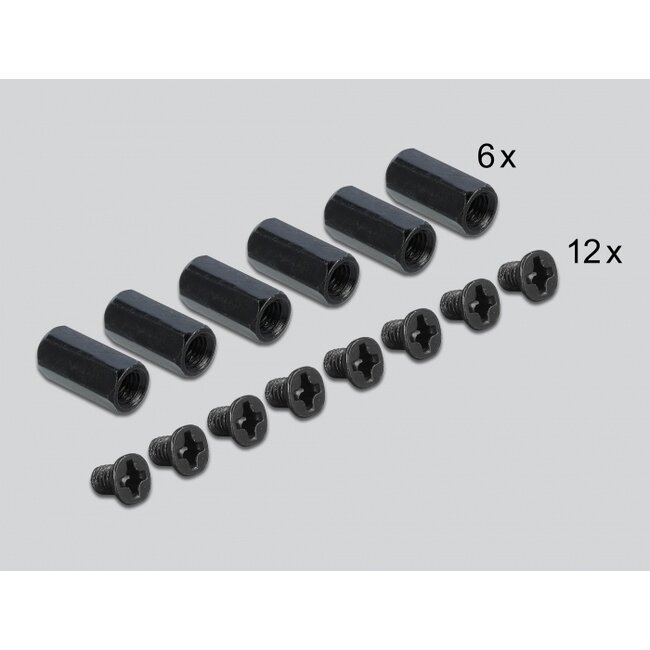

• 12 x screws M3
• 6 x spacer
• User manual
