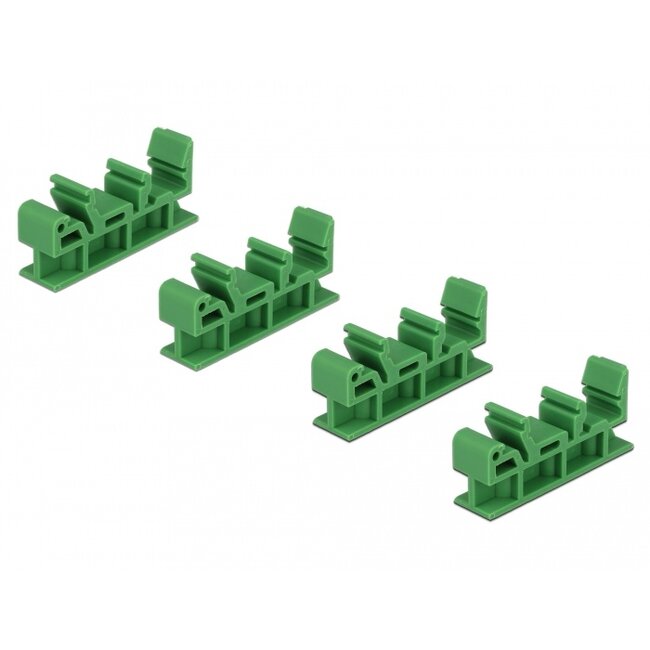

This DIN rail clip by Delock can be used to mount e.g. a PCB or single-board computer on a 15 mm or 35 mm DIN rail.
DIN rail clip for PCB

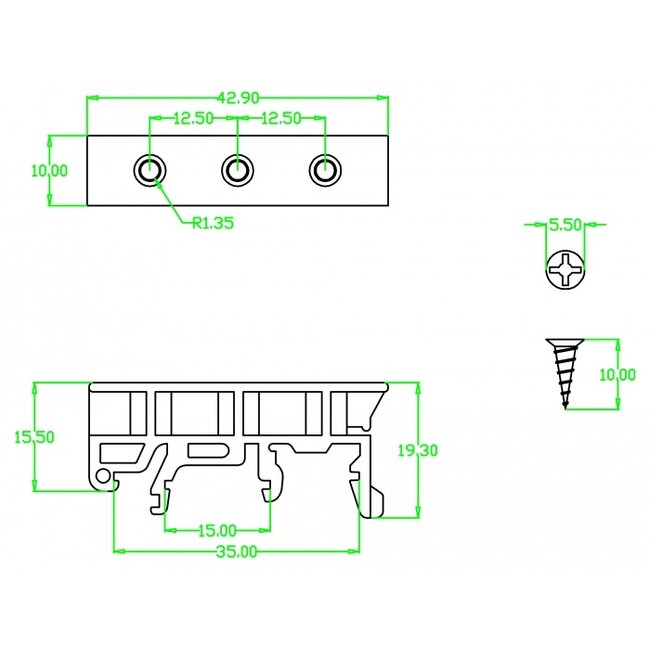

• DIN rail mounting: 15 mm and 35 mm
• 3 mounting holes
• Mounting hole diameter: 1.35 mm
• Pitch of screw hole: ca. 12.5 mm
• Environmental temperature: -10 °C ~ 70 °C
• Material: plastic
• Colour: green
• Dimensions (LxWxH): ca. 42.9 x 19.3 x 10 mm
• 15 mm or 35 mm DIN rail
Package content
• 4 x DIN rail clip

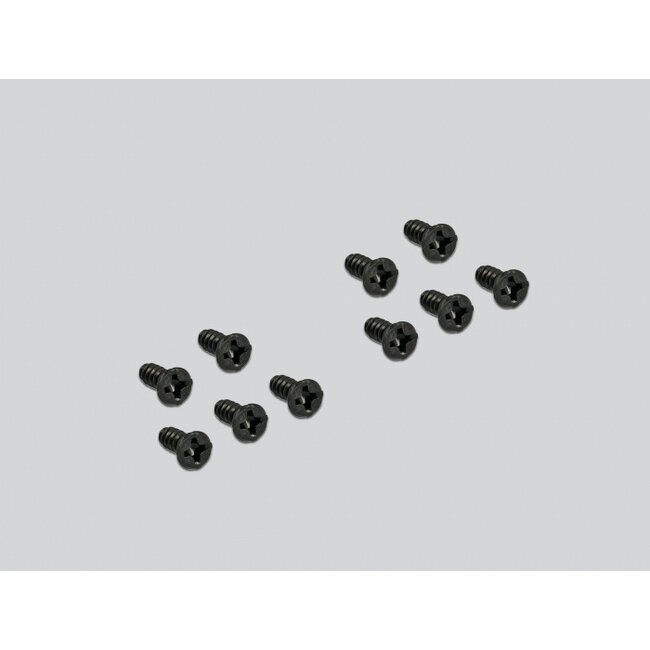

• 10 x screw 3 x 10 mm
