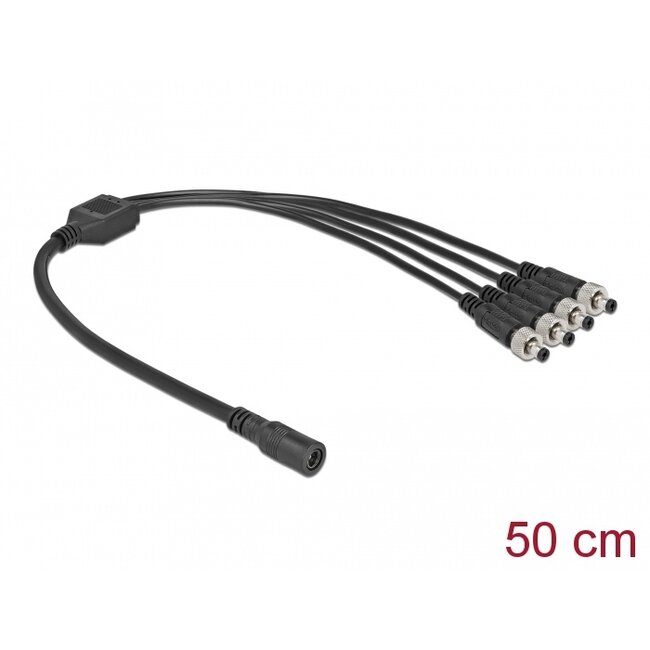

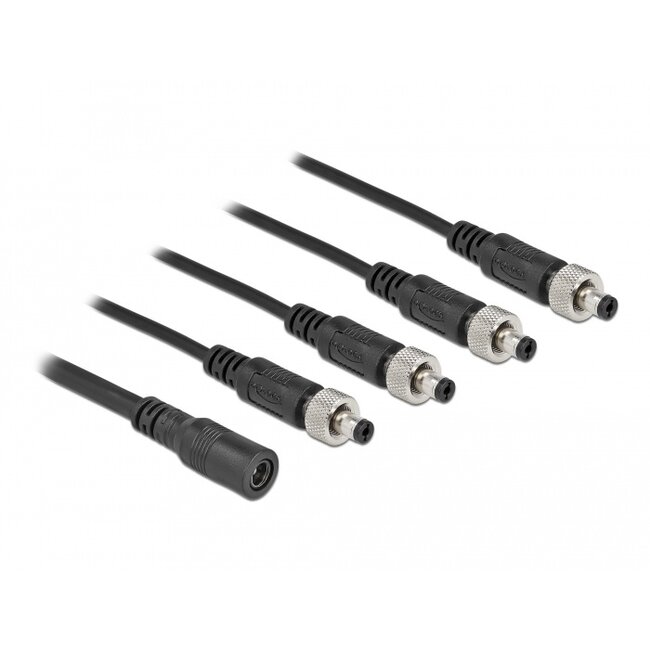

This splitter cable by Delock can be used for the connection of four devices which need low voltage e. g. cameras or LED-stripes to a power supply with DC connector. The screw type connector on the plugs supports a tight connection with the suitable DC jacks.
Specification• Connectors:
1 x DC 5.5 x 2.1 mm female
4 x DC 5.5 x 2.1 mm male screwable
• Maximum current: 2 A
• Voltage: max. 30 V
• Cable gauge: 21 AWG
• Cable jacket material: PVC
• Nickel-plated contacts
• Screw type: M8 x 0.75
• Length incl. connectors: ca. 50 cm
Specification of power connector
• Dimensions:
inside: ø ca. 2.1 mm
outside: ø ca. 5.5 mm
Length: ca. 18.7 mm
• Power supply with DC 5.5 x 2.1 mm male
Package content
• Splitter cable
