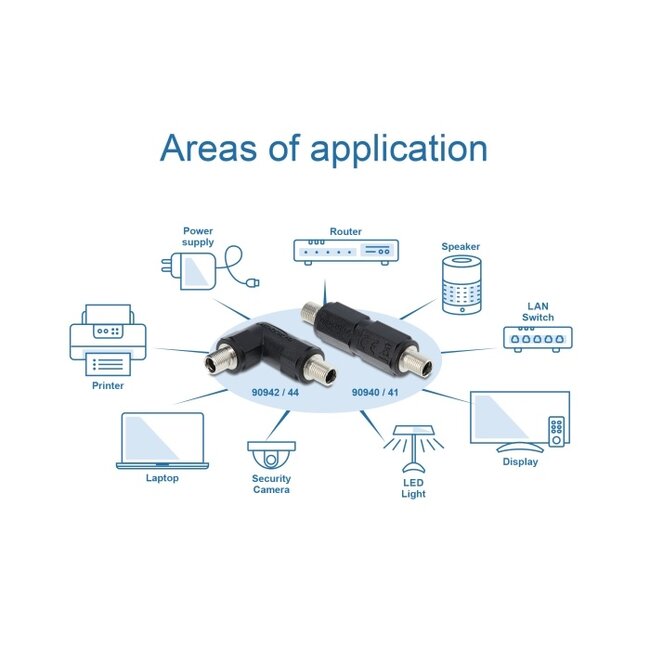

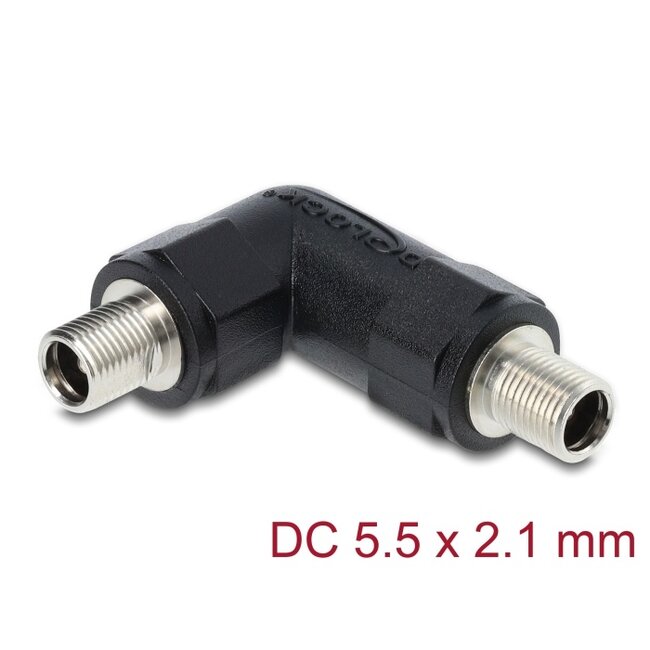

The DC adapter by Delock is suitable for reliable power supplies and for screw mounting on devices, panels or simply as a cable coupling. DC connectors can be connected both with and without union nut.
Specification• Connectors:
1 x DC 5.5 x 2.1 mm female
1 x DC 5.5 x 2.1 mm female
• Operating voltage: max. 300 V
• Current: max. 10 A
• Colour: black
• Shape: hexagon
• Version: angled 90°
• Thread length: 9 mm

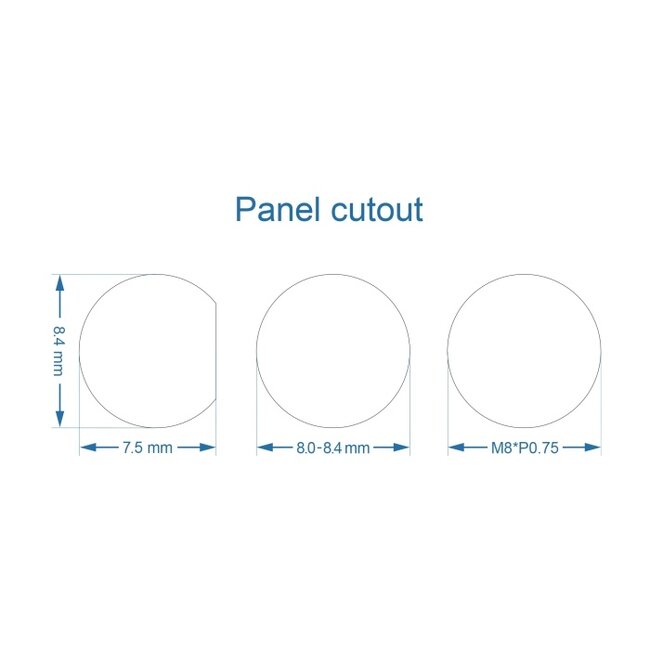

• Thread type: M8*P0.75
• Housing material: PVC
• Operating temperature: -40 °C ~ 80 °C
• Dimensions (LxWxH): ca. 43 x 35 x 15 mm
• DC barrel jack adapter

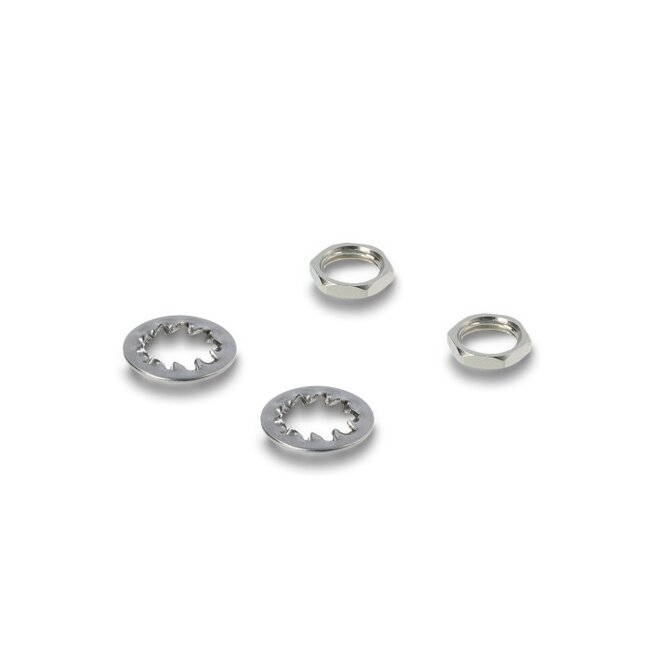

• 2 x nut
• 2 x serrated lock washer
