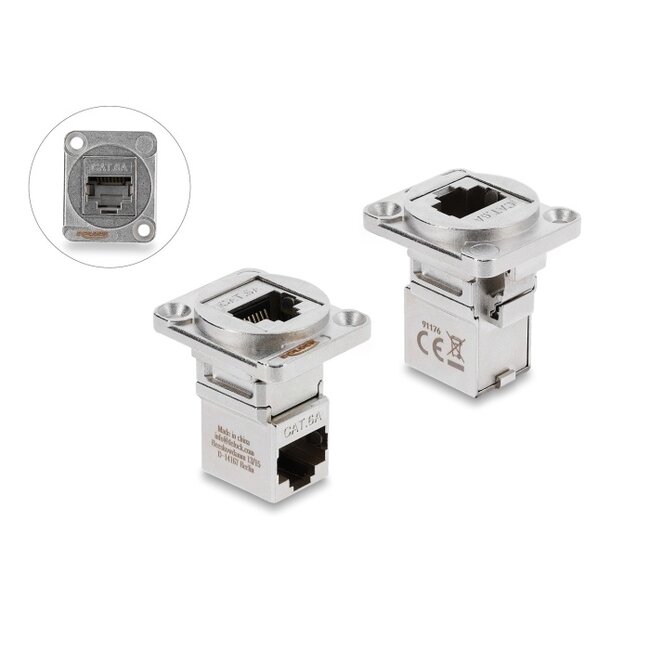

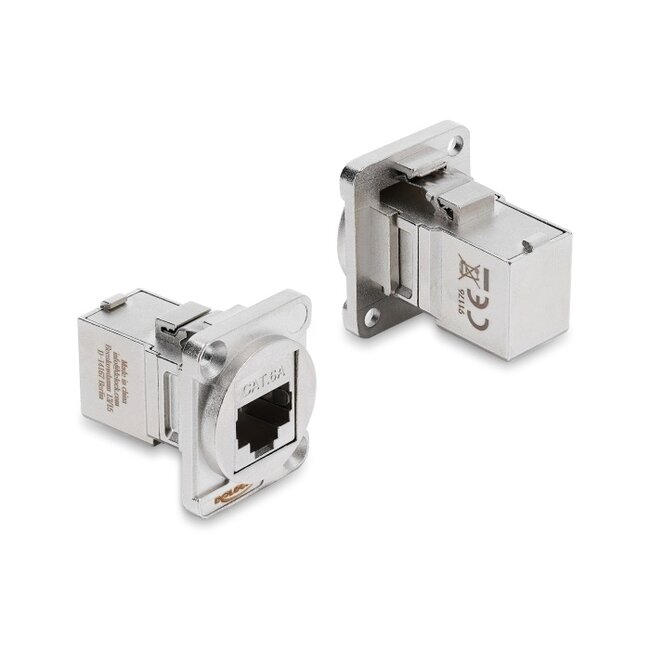

This module by Delock can be mounted e.g. in panels or cases with D-type openings and is suitable for network applications.
90° angled module – space-saving and flexible for tight spaces
The 90° angled design of the connector allows for space-saving installation in tight or hard to reach areas. The cable routing is efficiently adapted to the available space, preventing cable slack and tangles. This makes integration into compact housings, machines, or control cabinets much easier.
• Connectors:
1 x RJ45 jack
1 x RJ45 jack 90° angled
• For D-type ports with 31 x 26 mm
• Panel cut-out (diameter): ca. 23.5 mm
• Two mounting holes for screw fastening
• Mounting hole diameter: ca. 3.2 mm
• Cat.6A specification
• 90° angled
• Shielded
• Material: metal
• Colour: silver
• Dimensions (LxWxH): ca. 37 x 31 x 22 mm
• D-Type module
