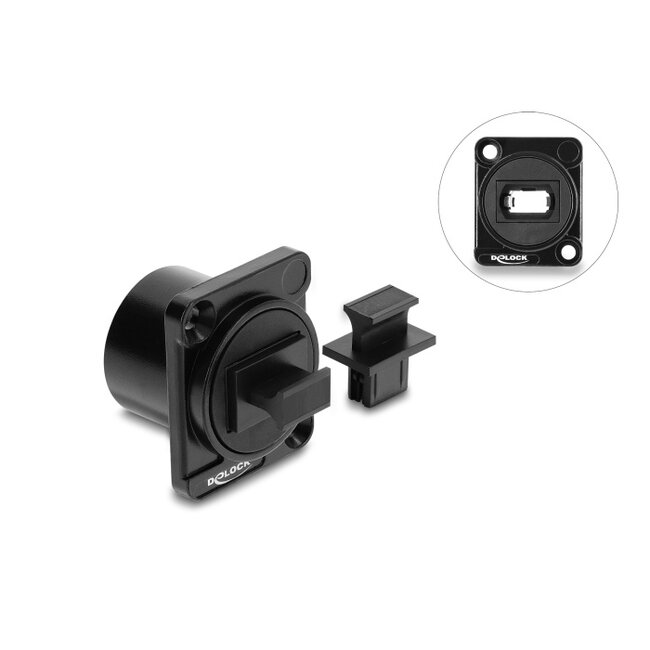

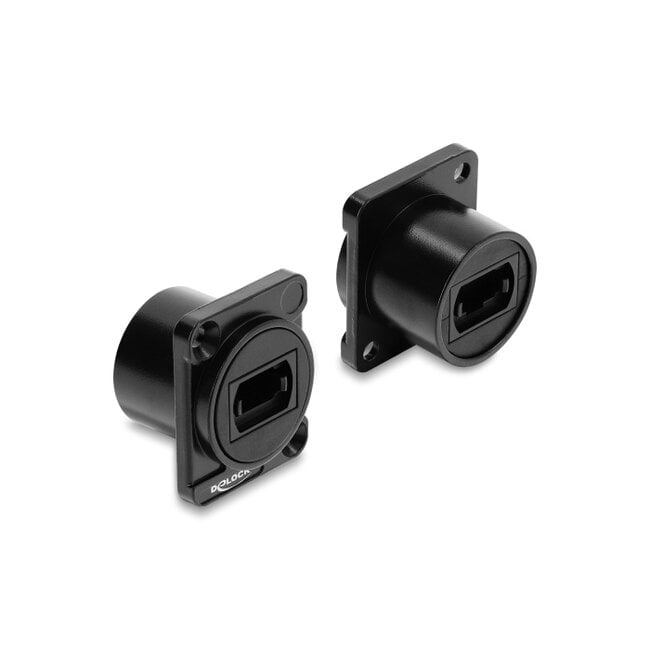

This module by Delock can be mounted e.g. in panels or cases with D-type openings and is suitable for fibre optic applications.
Protection by dust cover
The module is equipped with an appropriate cap to protect the sleeve from dust and to keep it clean.
• Connectors:
1 x MPO female
1 x MPO female
• Key-up to key-down direction
• For D-type ports with 31 x 26 mm
• Panel cut-out (diameter): ca. 23.5 mm
• Two mounting holes for screw fastening
• Mounting hole diameter: ca. 3.2 mm
• Insertion loss < 0.5 dB
• Operating temperature: -25 °C ~ 65 °C
• Material: metal
• Colour: black
• Dimensions (LxWxH): ca. 31 x 26 x 21 mm
• D-Type module
