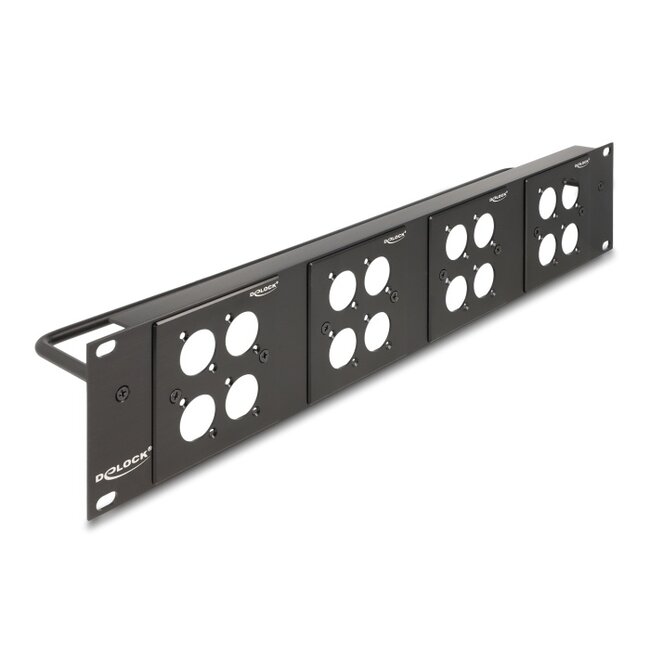

This patch panel by Delock can be mounted in a 19″ rack. With its standardized dimensions, it is suitable for easy mounting of 16 D-type modules.

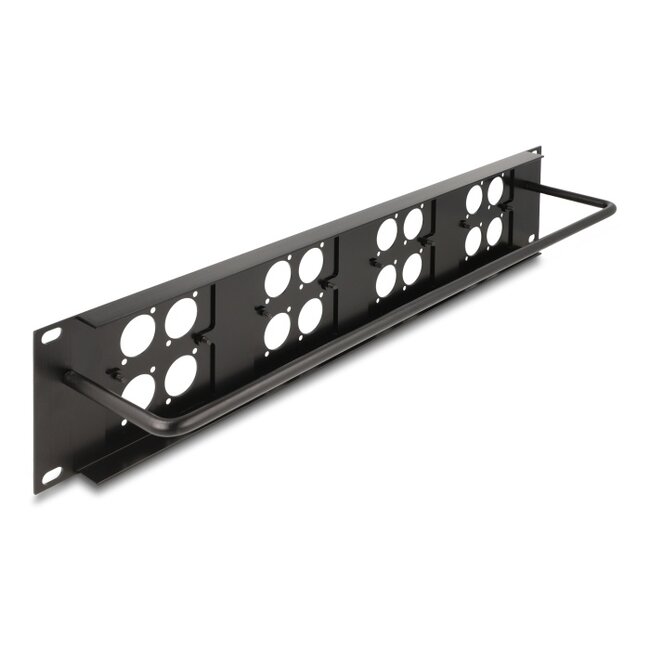

With strain relief for optimal cable management
On the back of the patch panel, the cables can be fixed with cable ties to enable clear and orderly cable routing.

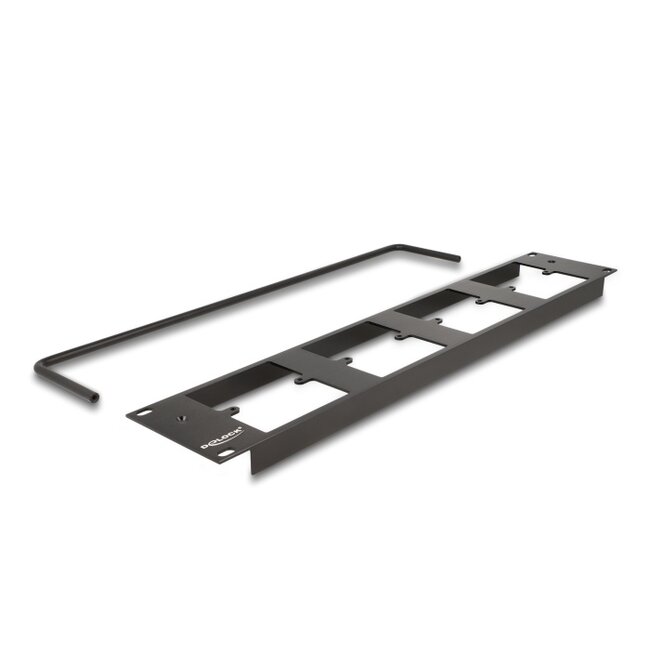

D-Type plates removable
The plates can be removed and added individually.
• For mounting in 19″ racks, 2U
• 4 D-type plates 86 x 86 mm with 4 ports each
• 16 D-type ports 24 x 19 mm
• D-type plates removable
• Material: metal
• Colour: black
• Dimensions (LxWxH): ca. 483 x 90 x 85 mm

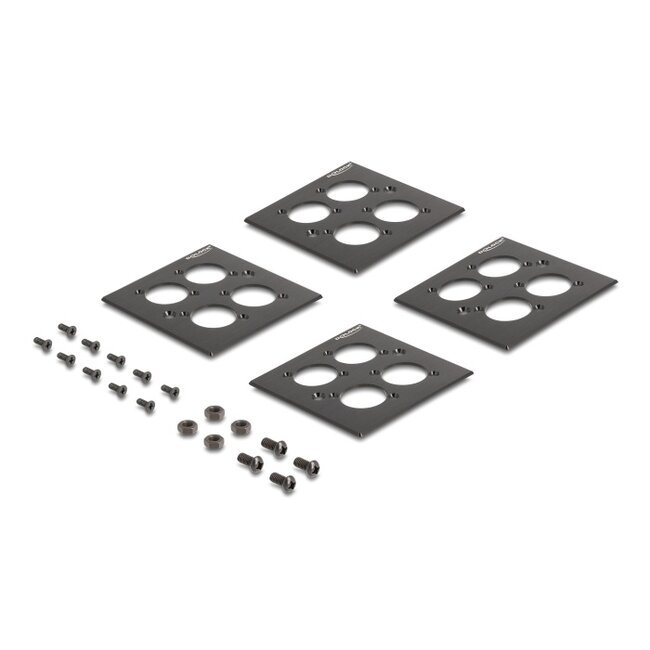

• D-type patch panel
• 14 x screw
• 4 x washer
• 4 x D-type plates
