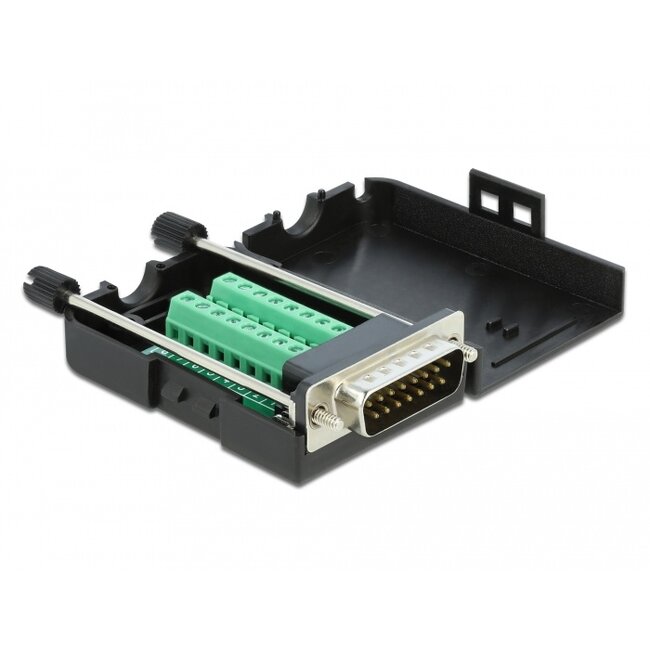

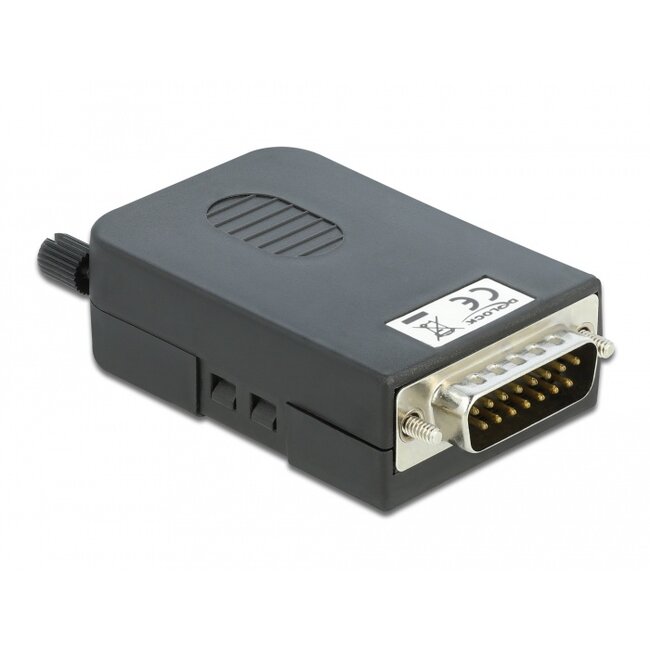

This terminal block adapter by Delock can be used to connect bare wires. Thus the adapter is not only convenient for special industry applications, but also for the hobby area, e.g. railway modelling.

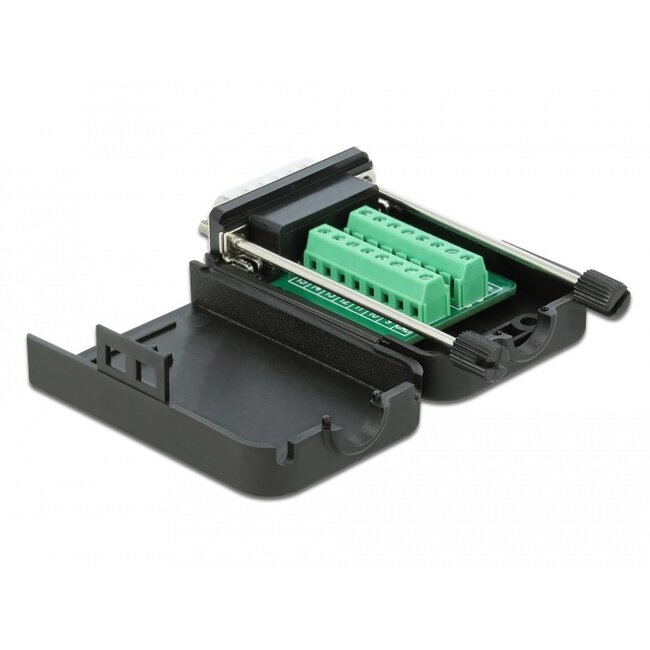

Protection by enclosure
The plastic enclosure protects the PCB from dirt and damage.

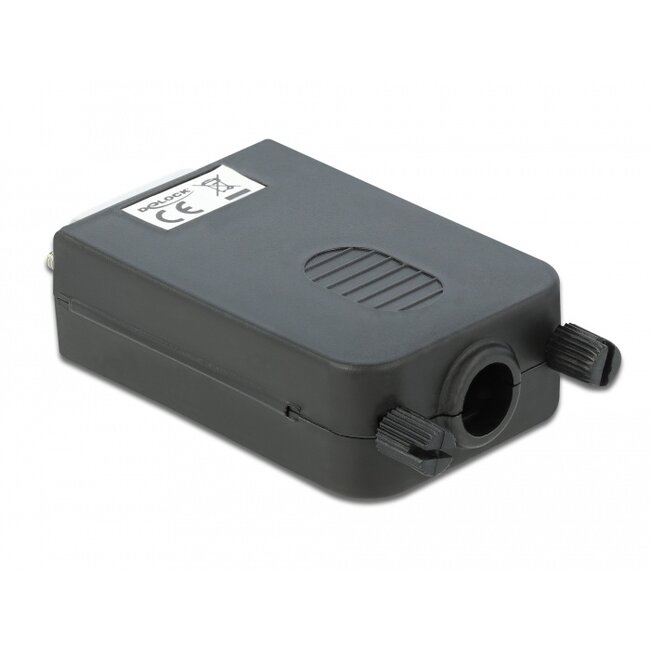

Strain relief
The screw-on strain relief fixes the cable in the enclosure.
Â
• Connectors:
1 x serial D-Sub15 male (2 rows) with screws
1 x 16 pin terminal block
• Pin assignment: 1:1
• Pitch: 3.81 mm
• Useable for a cable gauge from 26 to 18 AWG
• Operating temperature: -20 °C ~ 105 °C
• Dimensions (LxWxH): ca. 78 x 42 x 21 mm
• A free D-Sub15 female

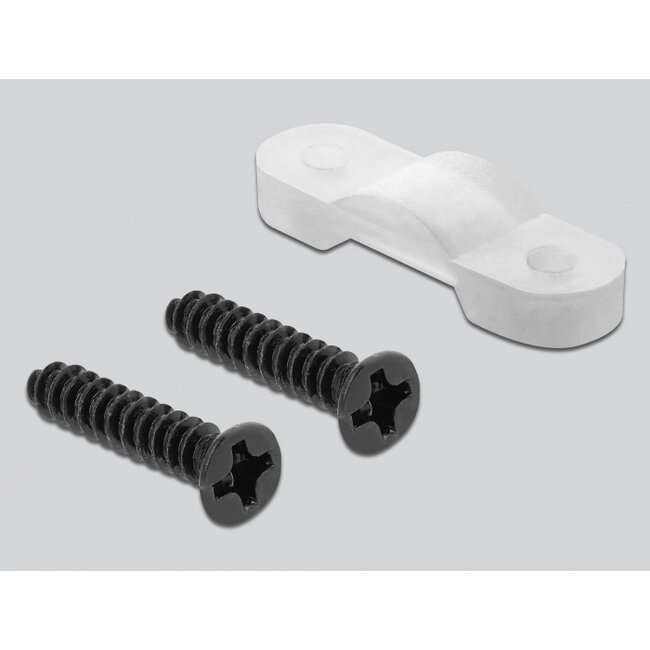

Package content
• Adapter
• 1 x strain relief
• 2 x locking screws
