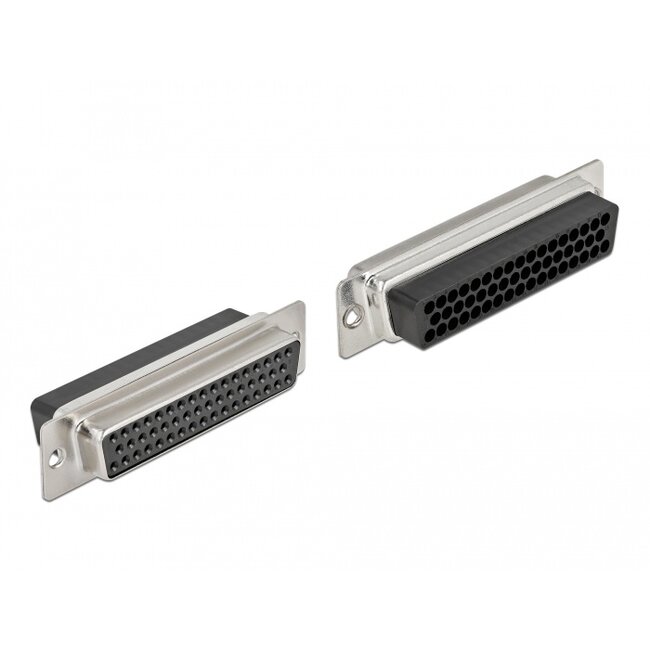

This D-Sub HD (High Density) female connector by Delock is suitable for cable mounting. On the back side there are through holes for inserting crimp contacts.
Specification• Connectors:
1 x D-Sub HD 50 pin female (3 rows)
50 x through hole for crimp contacts
• Cable gauge: 28 - 20 AWG
• Operating temperature: -40 °C ~ 105 °C
• Material: metal

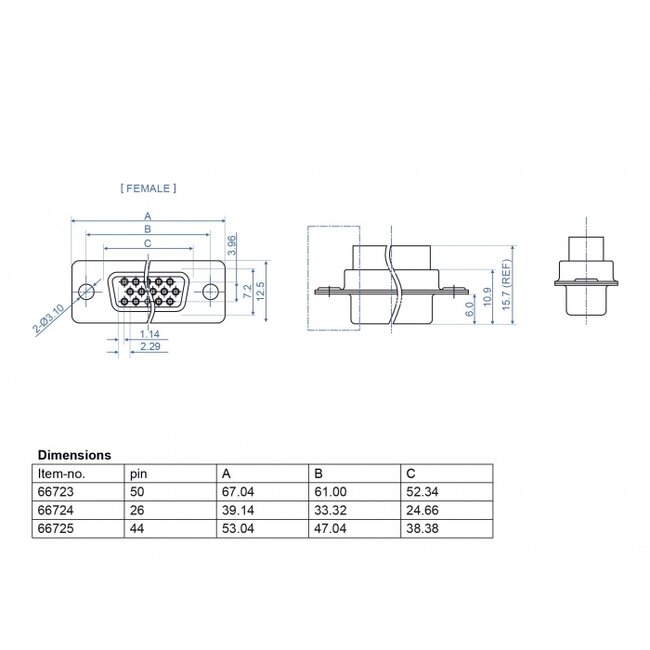

• Dimensions (LxWxH): ca. 67.0 x 15.7 x 12.5 mm
• D-Sub HD 50 pin crimp female
