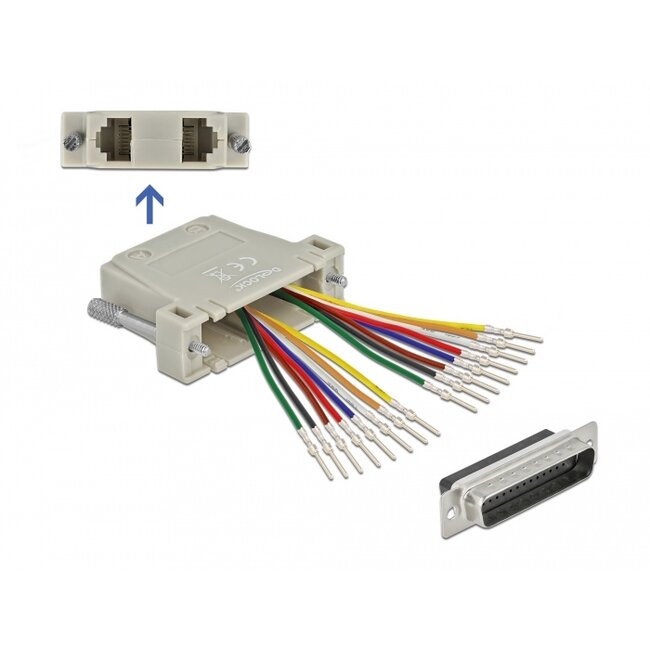

This HD (High Density) adapter by Delock can be used to expand a serial interface by using two optional network cables. Thereby it can be set the pin assignment individually. Just plug the cable end into the desired hole of the connector and let it lock into the housing.
Note
Different applications need different pin assignments.
• Connectors:
1 x D-Sub HD 44 pin crimp male with screws >
2 x RJ45 jack

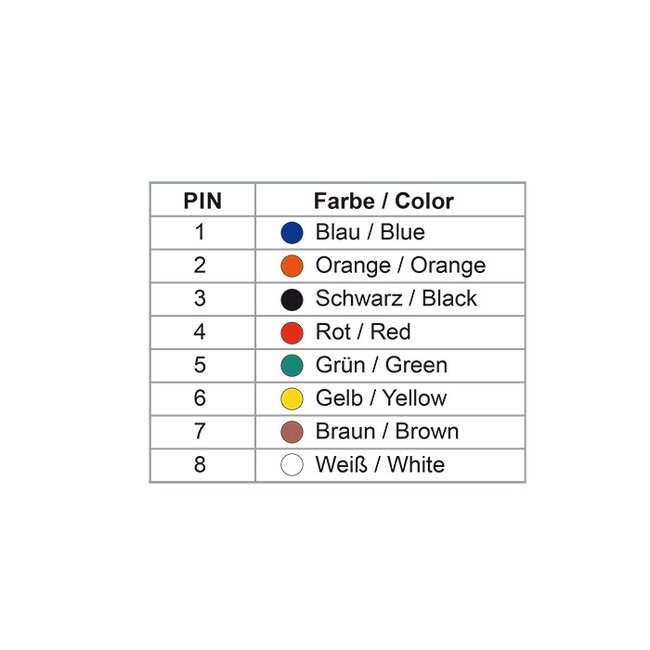

• RJ45 with 8 pins, connection individually assignable
• Colour: beige
• Dimensions (LxWxH): ca. 55 x 53 x 40 mm

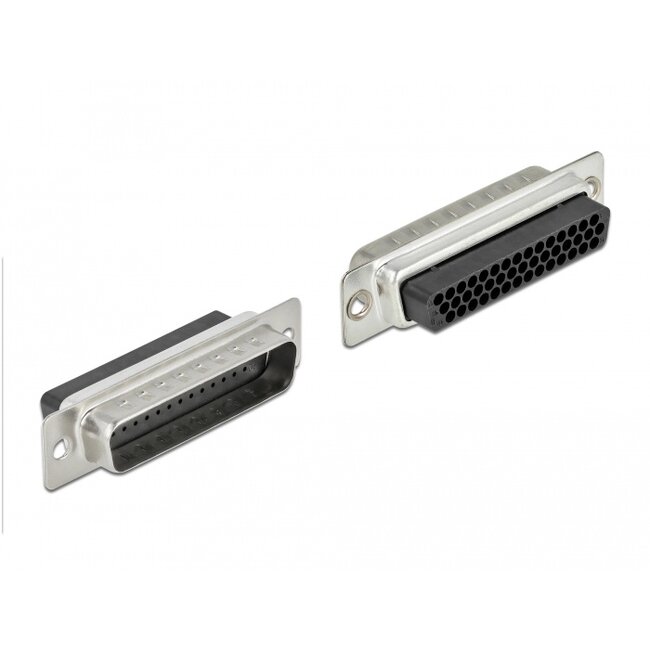

• A free D-Sub HD 44 pin crimp female and RJ45 male port
Package content
• Adapter
