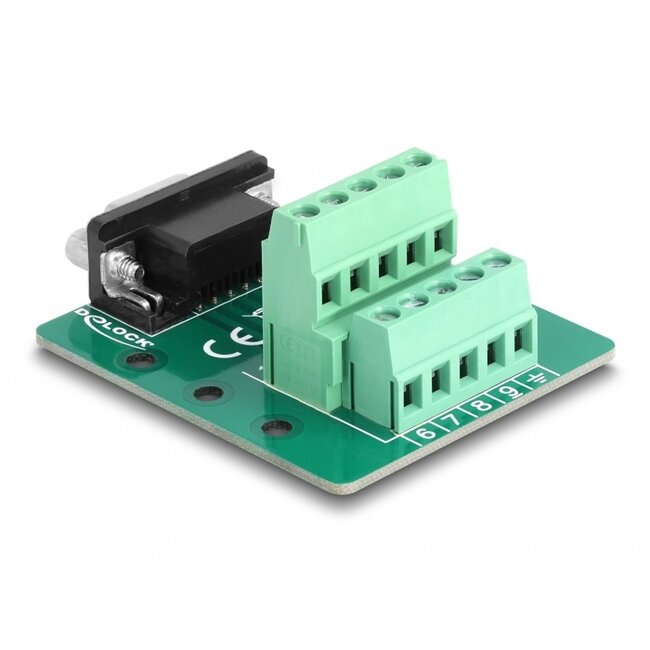

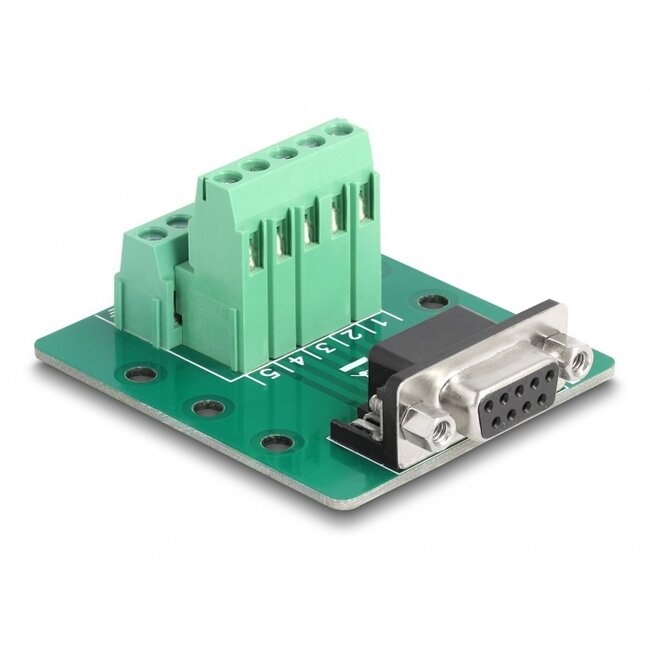

This terminal block adapter by Delock can be used to connect wires with stripped ends.

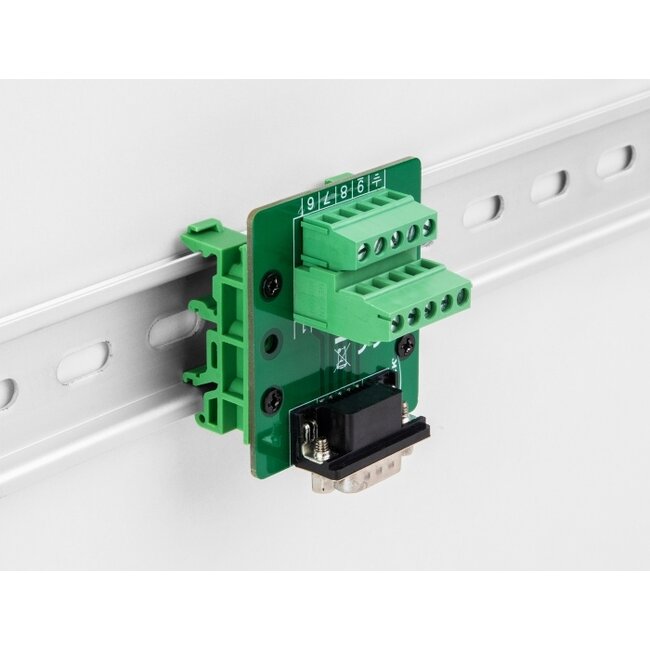

DIN rail mounting
With the clips included in the delivery content, the adapter can be attached to a 15 mm or 35 mm wide DIN rail.
• Connectors:
1 x D-Sub 9 pin female
1 x 10 pin terminal block
• Pin assignment: 1:1
• Pitch: 5.00 mm
• Useable for a cable gauge from 24 to 12 AWG
• DIN rail mounting: 15 mm and 35 mm
• Operating temperature: -40 °C ~ 100 °C
• Dimensions (LxWxH): ca. 58 x 51 x 30 mm
• A free D-Sub 9 pin male
• 15 mm or 35 mm DIN rail
Package content
• Adapter
• 2 x DIN rail clip
• 5 x screws
