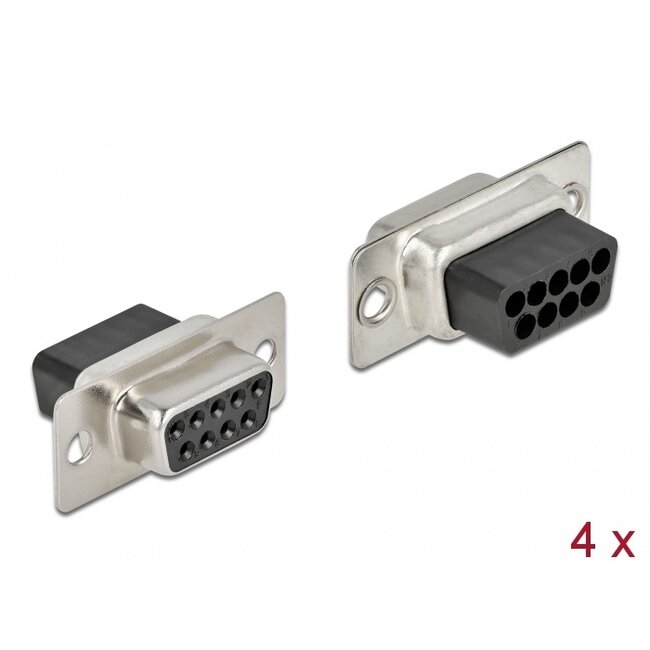

This D-Sub female connector by Delock is suitable for cable mounting. On the back side there are through holes for inserting crimp contacts.
Specification• Connectors:
1 x D-Sub 9 pin female (2 rows)
9 x through hole for crimp contacts
• Cable gauge: 28 - 20 AWG
• Operating temperature: -40 °C ~ 105 °C
• Material: metal

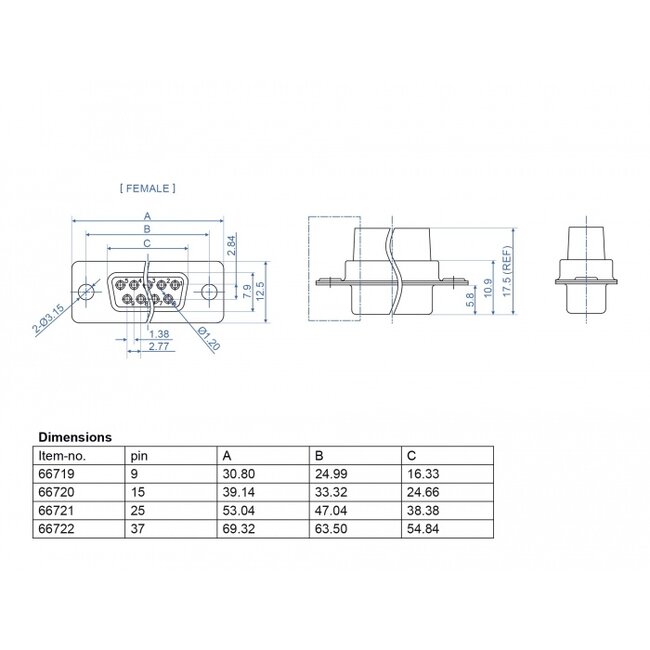

• Dimensions (LxWxH): ca. 30.8 x 17.5 x 12.5 mm
• 4 x D-Sub 9 pin crimp female
