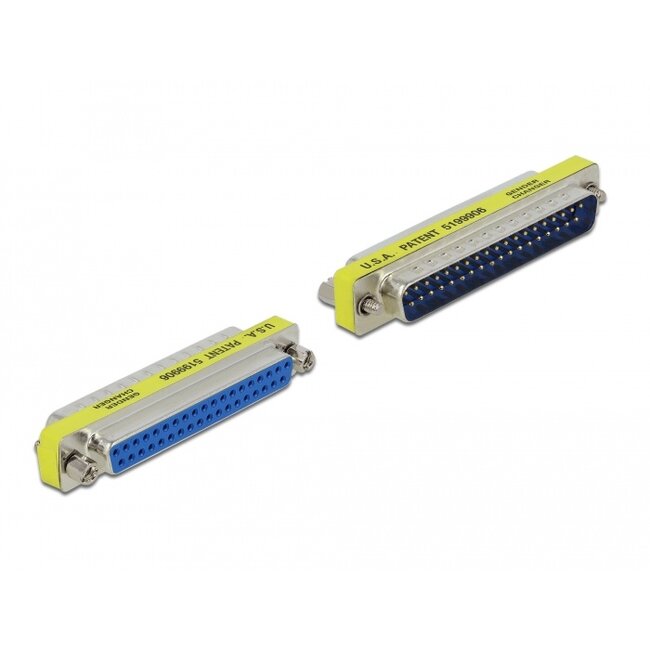

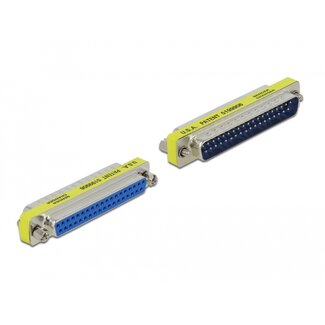

This adapter by Delock can be connected to the D-Sub 37 pin port of the device or system. Thus it prevents the interface from damage when it is under usage for high contact durability. Furthermore this adapter can also be used for special application as mechanical extension of the D-Sub 37 port.
Specification• Connectors:
1 x D-Sub 37 pin male >
1 x D-Sub 37 pin female with screws
• Pin assignment: 1:1
• Screw type: #4-40 UNC
• Screw distance: 61 mm
• Contacts gold-plated
• Dimensions (LxWxH): ca. 67.25 x 15.45 x 17.90 mm
• A free D-Sub 37 pin interface
Package content
• Adapter
