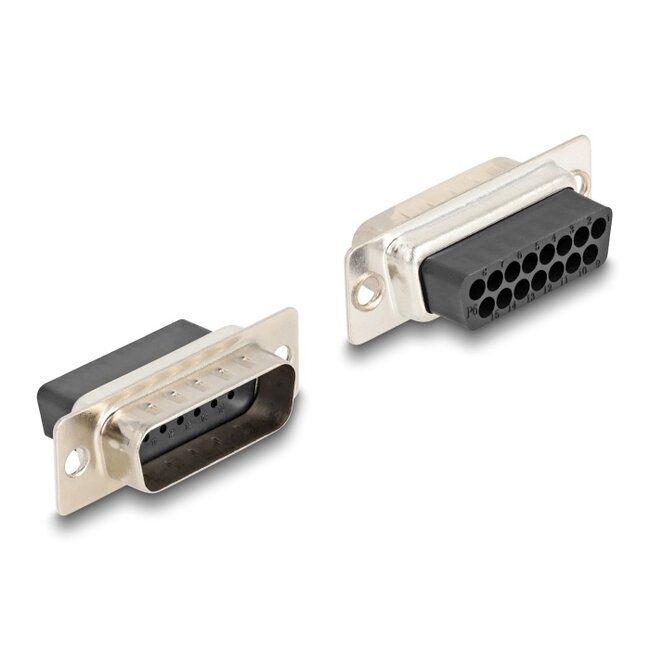

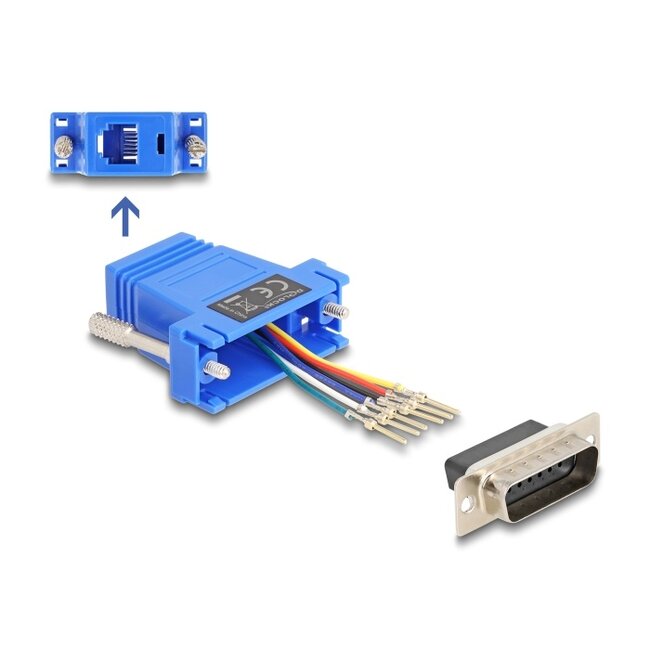

This adapter by Delock expands a serial D-Sub 15 interface via an ISDN, telephone or RJ12 cable. The D-Sub 15 interface can be assigned individually and flexibly. The contacts of the adapter can be inserted into the D-Sub 15 housing according to the desired requirements. With a slight click, the sockets snap into place and provide reliable contact.
Specification• Connectors:
1 x serial D-Sub 15 pin male
1 x RJ12 jack
• RJ12 interface assigned with 6 pins, serial interface individually assignable
• Serial connector with screw
• Colour: blue
• Dimensions (LxWxH): ca. 40 x 23 x 16 mm
• Adapter
