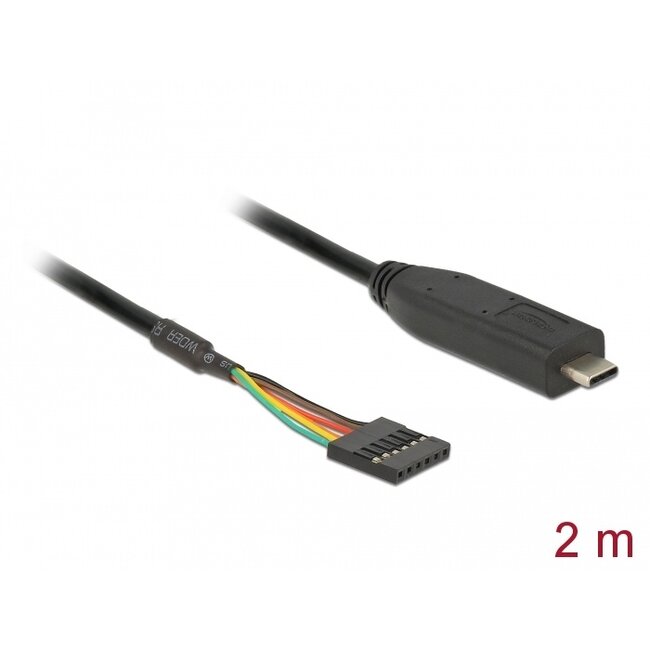

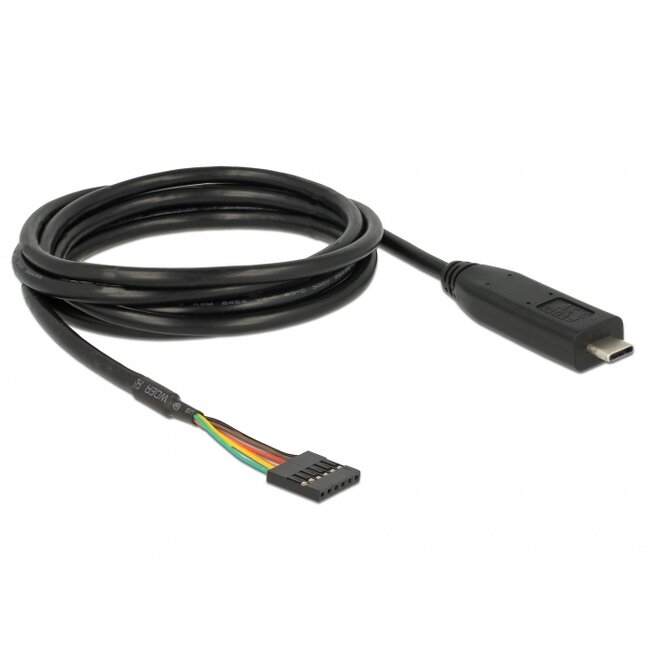

This USB Type-C™ 2.0 to LVTTL converter by Delock can be connected directly to GPIO (General purpose input / output) connectors or UART (Universal Asynchronous Receiver / Transmitter) interfaces. The converter is suitable for applications on single-board computers, controllers, FPGAs, MCUs and in circuit electronics etc.
Specification• Connectors:
1 x USB Type-C™ 2.0 male >
1 x LVTTL 6 pin pin header female
• Chipset: FTDI FT232RL
• Cable gauge: 26 AWG
• Cable type: UL AWM 2464 VW-1 Flame Test
• Operating temperature: -20 °C ~ 80 °C
• Pitch: 2.54 mm
• Compatible to UHCI / OHCI / EHCI controller
• Data transfer rate up to 3 Mbps
• Databits: 7 or 8
• Stop bits: 1 or 2
• Parity: none, space, even, odd, mark
• Flow control: none, hardware RTS / CTS, software XON / XOFF
• Output voltage: 5 V
• FIFO:
128 Byte - RX
256 Byte - TX
• Cable length incl. connectors: ca. 2.0 m
• Linux Kernel 2.6 or above
• Mac OS 10.9 or above
• Windows Server 2012 R2/Windows Server 2016
• Windows 7/7-64/8.1/8.1-64/10/10-64/11
• PC or laptop with a free USB Type-C™ port
Package content
• USB Type-C™ 2.0 LVTTL cable
• User manual
